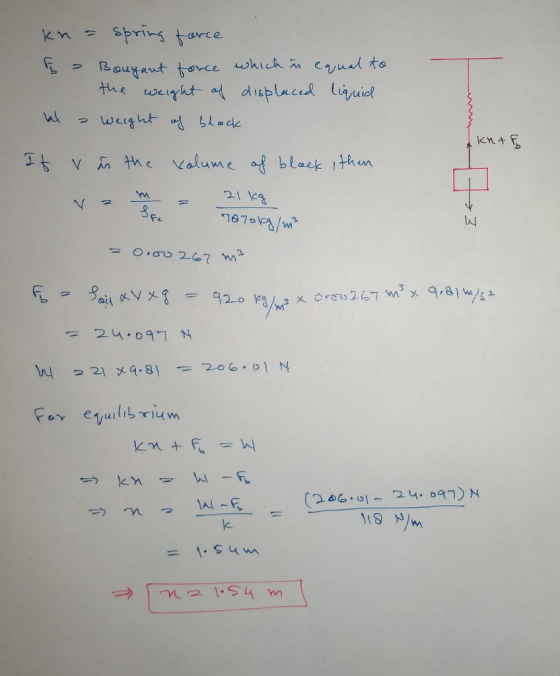

Please Help!!!!! QUESTION 14 A 21 kg block of iron is suspended from a spring with...

Question

Question

Please Help!!!!!

science physics

Answer 1

Answer #1

knis 21 1C 1시 1I9m Ic.

Answer 2
