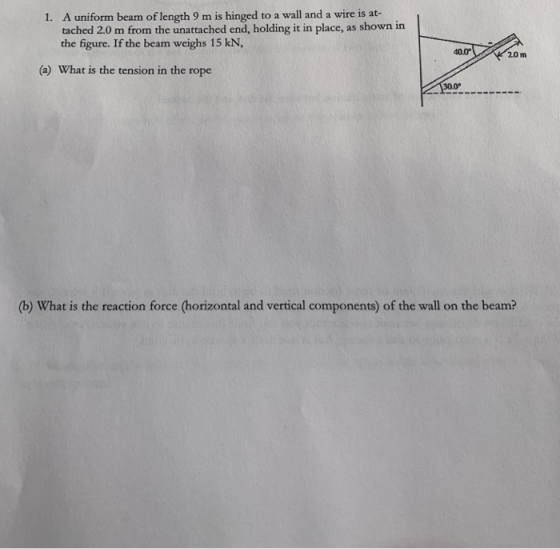

A uniform beam of length 9 m is hinged to a wall and a wire is...

Question

Question

science physics

Answer 1

Answer #1

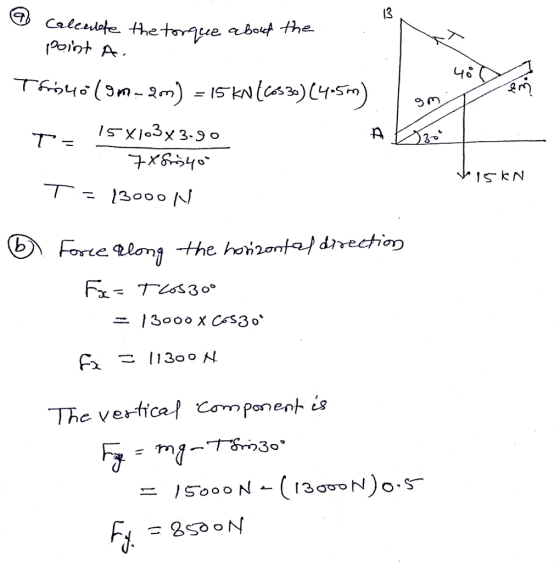

Calcdofe thetorque about -fhe ront A 40 rn alomj -the hoi The verfical Component is

Answer 2

Similar Homework Help Questions

In the figure, one end of a uniform beam of weight 460 N is hinged to...

In the figure, one end of a uniform beam of weight 460 N is hinged to a wall; the other end is supported by a wire that makes angles theta = 26 degree with both wall and beam. Find (a) the tension in the wire and the (b) horizontal and (c) vertical components of the force of the hinge on the beam.
A 12.0 m uniform beam is hinged to a vertical wall and held horizontally by a...

A 12.0 m uniform beam is hinged to a vertical wall and held horizontally by a 5.00 m cable attached to the wall 4.00 m above the hinge, as shown in the figure below (Figure 1).The metal of this cable has a test strength of 0.900 kN which means that it will break if the tension in it exceeds that amount. You may want to review For related problem solving tips and strategies, you may want to view a Video...
(2) A horizontal rope is attached to a uniform beam as shown. The beam is hinged...

(2) A horizontal rope is attached to a uniform beam as shown. The beam is hinged at the bottom. From the end of the beam, a mass is hanging. The entire system is at rest. A) What is the tension in the horizontal rope if the beam has a mass of 10 kg? B) what are the horizontal and C) vertical components of the force that the hinge applies to the beam? Answer B with "into wall" or "out from...

2. (10 points) (Based upon 11.45 and 11.46) A uniform, 8.00-m beam is hinged to a...

2. (10 points) (Based upon 11.45 and 11.46) A uniform, 8.00-m beam is hinged to a wall and supported by a thin cable attached 2.00 m from the free end of the beam, as shown in the figure. Label the horizontal and vertical components of the contact force (where the beam touches 40.0 2.0 m the wall) as H and V. If the magnitude of FH is H- 5340 N, find the magnitude of V. Do your calculations with at...
a sign of mass 20.0 kg is supported at the end of a uniform beam of...

a sign of mass 20.0 kg is supported at the end of a uniform beam of mass 10.0 kg and length 2.00!m. the beam makes an angle of 30.0 degrees with the horizontal. a wire is attached from the end of the rod to a point on the wall and makes an angle if 20.0 degrees to the horizontal. what is the tension of the wire. what are the magnitudes of the horizontal and vertical components of the reaction force...
A beam is attached to a vertical wall with a hinge. The mass of the beam...

A beam is attached to a vertical wall with a hinge. The mass of the beam is 1800 kg and it is 4 m long. A steel support wire is tied from the end of the beam to the wall, making an angle of 30° with the beam (see the figure below). 1)Calculate the tension in the support wire. Assume the beam has a uniform density. kN 2)What is the vertical component of the force exerted by the hinge on...

A shop sign weighing 228 N is supported by a uniform 103 N beam of length...

A shop sign weighing 228 N is supported by a uniform 103 N beam of length L = 1.75 m, hinged to the wall. A) A guy wire is connected D = 1.21 m from the wall. Find the tension in the guy wire. Assume θ = 38.3°. B) Find the horizontal force exerted by the hinge on the beam. C)Find the vertical force exerted by the hinge on the beam. (Use up as the positive direction.)
A purple beam is hinged to a wall to hold up a blue sign. The beam...

A purple beam is hinged to a wall to hold up a blue sign. The beam has a mass of mb = 6.1 kg and the sign has a mass of ms = 16.5 kg. The length of the beam is L = 2.85 m. The sign is attached at the very end of the beam, but the horizontal wire holding up the beam is attached 2/3 of the way to the end of the beam. The angle the wire...
a 1165-N uniform beam is attached to a vertical wall at one end... A 1165-N uniform...

a 1165-N uniform beam is attached to a vertical wall at one end... A 1165-N uniform beam is attached to a vertical wall at one end and is supported by a cable at the other end. A W 1875-N crate hangs from the far end of the beam. Using the data shown in the drawing, find the following. 50.0 Beam 30.0 (a) the magnitude of the tension in the wire (b) the magnitudes of the horizontal and vertical components of...

A 2.000 m long horizontal uniform beam of mass 20.00 kg is supported by a wire...

A 2.000 m long horizontal uniform beam of mass 20.00 kg is supported by a wire as shown in the figure. The wire makes an angle of 20.00 degrees with the beam. Attached to the beam 1.400 m from the wall is a ball with a mass of 40.00 kg. What are the vertical and horizontal components of the force of the wall on the beam at the hinge?
