both parts plsHomework Answers
Add Answer to:
both parts pls

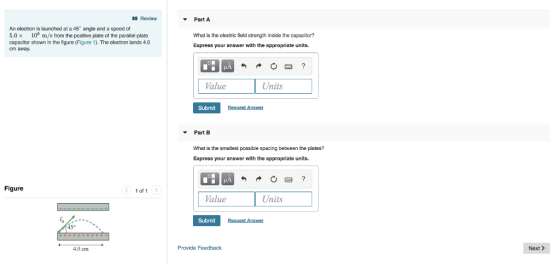

Review Part A An electron is launched at a 45 angle and a...
An electron is launched at a 45? angle and a speed of 5.0×106m/s from the positive...
An electron is launched at a 45? angle and a speed of 5.0×106m/s
from the positive plate of the parallel-plate capacitor shown in
the figure(Figure 1) . The electron lands 4.0 cm away.
What is the electric field strength inside the capacitor?
Express your answer with the
appropriate units.
What is the smallest possible spacing between the plates?
Express your answer with the appropriate units.
An electron is launched at a 45? angle and a speed of 5.0×106m/s from the positive...
An electron is launched at a 45? angle and a speed of 5.0×106m/s
from the positive plate of the parallel-plate capacitor shown in
the figure (Figure 1) . The electron lands 4.0 cm away.
A)What is the electric field strength inside the capacitor?
Express your answer with the appropriate units.
B) What is the smallest possible spacing between the plates?
Express your answer with the appropriate units.
An electron is launched at 45° at a speed of 2.5 x 106 m/s from the positive plate of a parallel-plate capacitor
An electron is launched at 45° at a speed of 2.5 x 106 m/s from the positive plate of a parallel-plate capacitor as shown in the figure below. The electron lands d = 4 cm away. What is the electric field strength inside the capacitor? (Please give your answer in N/C with at least two significant figures; e.g. 2700).
Review Part A What is the magnitude of the force F on the -10 nC charge...
Review Part A What is the magnitude of the force F on the -10 nC charge in (Figure 1)? Suppose that a-2.4 cm Express your answer with the appropriate units Figure く 1011 -15 nC 5.0 nC 3.0 cm alue Units Submit Request Answer -10 nC ▼ Part B Part B What is the direction of the force F on the -10 nC charge in (Figure 1)? Give your answer as an angle measured cw or cow (specify which) from...
Review Part A An electron moving parallel to a uniform electric field increases its speed from...
Review Part A An electron moving parallel to a uniform electric field increases its speed from 2.0 x 107 m/s to 4.0 × 107 m/s over a distance of 1.5 cn What is the electric field strength? Express your answer with the appropriate units. You may want to review (Pages 646 648) E-1 Value Units Submit Request Answer Provide Feedback Next>
Part A Review What is the electric potential at the point (1.0 cm, 2.0 cm)? A...
Part A Review What is the electric potential at the point (1.0 cm, 2.0 cm)? A given system has the equipotential surfaces shown in (Figure 1). Express your answer to three significant figures and include appropriate units. Value Units Submit Figure < 1of1 Incorrect: Try Again; 5 attempts remaining Enter your answer using units of electric potential. y (Cm) Part B How much work is done by the electric force when a 0.40-C charge is moved from the point (1.0...
Constant Part E A paralel plate capacitor with plate area A-40 m2 and plate separation d...
Constant Part E A paralel plate capacitor with plate area A-40 m2 and plate separation d - 3.0 mm is connected to a 35-V battery refer to Figure 130 With the capacitor still connected to the battery a slab of plastic with dielectric strength K.32 is placed between the plates of the capacitor, so that the gap is completely filled with the dielectric refer to figure 2) What are the new value of electric field in the capacitor? Express your...
A 2.00-cm-diameter parallel-plate capacitor with a spacing of 0.300 mm is charged to 200 V Part...
A 2.00-cm-diameter parallel-plate capacitor with a spacing of 0.300 mm is charged to 200 V Part A IMG What is the total energy stored in the electric field? Express your answer with the appropriate units. may want to review (Pages 729-730) Value Units ite Aer Part B What is the energy density? Express your answer with the appropriate units. alue Units Submit 4
both parts pls Review Part B An early model of the atom, proposed by Rutherford after...
both parts pls
Review Part B An early model of the atom, proposed by Rutherford after his discovery of the atomic nucleus, had a positive point charge +Ze (the nucleus) at the center of a sphere of radius R with uniformly distributed negative charge -Ze. Z is the atomic number, the number of protons in the nucleus and the number of electrons in the negative sphere. What is E at the surface of the atom? Give your answer as a...
Review | Constants A parallel-plate capacitor consists of two plates, each with an area of 29...
Review | Constants A parallel-plate capacitor consists of two plates, each with an area of 29 cm2 separated by 3.0 mm. The charge on the capacitor is 43 nC. A proton is released from rest next to the positive plate Part A Express your answer to two significant figures and include the appropriate units. Voluee sec Submit Request Answer Provide Feedback Next >
An electron is launched at a 45? angle and a speed of 5.0×106m/s
from the positive plate of the parallel-plate capacitor shown in
the figure(Figure 1) . The electron lands 4.0 cm away.
What is the electric field strength inside the capacitor?
Express your answer with the
appropriate units.
What is the smallest possible spacing between the plates?
Express your answer with the appropriate units.
An electron is launched at a 45? angle and a speed of 5.0×106m/s
from the positive plate of the parallel-plate capacitor shown in
the figure (Figure 1) . The electron lands 4.0 cm away.
A)What is the electric field strength inside the capacitor?
Express your answer with the appropriate units.
B) What is the smallest possible spacing between the plates?
Express your answer with the appropriate units.
Review Part A What is the magnitude of the force F on the -10 nC charge in (Figure 1)? Suppose that a-2.4 cm Express your answer with the appropriate units Figure く 1011 -15 nC 5.0 nC 3.0 cm alue Units Submit Request Answer -10 nC ▼ Part B Part B What is the direction of the force F on the -10 nC charge in (Figure 1)? Give your answer as an angle measured cw or cow (specify which) from...
Review Part A An electron moving parallel to a uniform electric field increases its speed from 2.0 x 107 m/s to 4.0 × 107 m/s over a distance of 1.5 cn What is the electric field strength? Express your answer with the appropriate units. You may want to review (Pages 646 648) E-1 Value Units Submit Request Answer Provide Feedback Next>
Part A Review What is the electric potential at the point (1.0 cm, 2.0 cm)? A given system has the equipotential surfaces shown in (Figure 1). Express your answer to three significant figures and include appropriate units. Value Units Submit Figure < 1of1 Incorrect: Try Again; 5 attempts remaining Enter your answer using units of electric potential. y (Cm) Part B How much work is done by the electric force when a 0.40-C charge is moved from the point (1.0...
Constant Part E A paralel plate capacitor with plate area A-40 m2 and plate separation d - 3.0 mm is connected to a 35-V battery refer to Figure 130 With the capacitor still connected to the battery a slab of plastic with dielectric strength K.32 is placed between the plates of the capacitor, so that the gap is completely filled with the dielectric refer to figure 2) What are the new value of electric field in the capacitor? Express your...
A 2.00-cm-diameter parallel-plate capacitor with a spacing of 0.300 mm is charged to 200 V Part A IMG What is the total energy stored in the electric field? Express your answer with the appropriate units. may want to review (Pages 729-730) Value Units ite Aer Part B What is the energy density? Express your answer with the appropriate units. alue Units Submit 4
both parts pls
Review Part B An early model of the atom, proposed by Rutherford after his discovery of the atomic nucleus, had a positive point charge +Ze (the nucleus) at the center of a sphere of radius R with uniformly distributed negative charge -Ze. Z is the atomic number, the number of protons in the nucleus and the number of electrons in the negative sphere. What is E at the surface of the atom? Give your answer as a...
Review | Constants A parallel-plate capacitor consists of two plates, each with an area of 29 cm2 separated by 3.0 mm. The charge on the capacitor is 43 nC. A proton is released from rest next to the positive plate Part A Express your answer to two significant figures and include the appropriate units. Voluee sec Submit Request Answer Provide Feedback Next >
