Question

The Hulk (525 kg) sits on the left end of a see-saw, a plank with a...

The Hulk (525 kg) sits on the left end of a see-saw, a plank with a length of 4 m, pivoted in the middle. Where should Thanos (750 kg) sit if he wants the see-saw to be perfectly balanced, as all things should be?
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

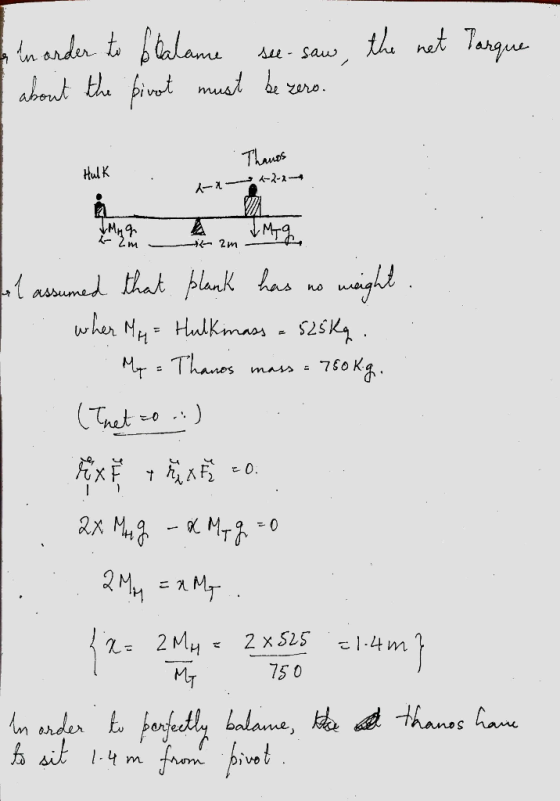

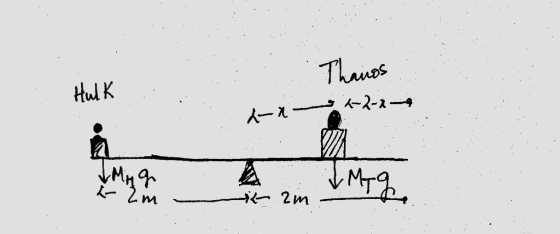

Thanos .. Hulk 2 4 -2-2- um x 2ma in order to balance see-saw, the net Tarque about the pivot must be zero. . Thanos Hulk d +---+ al assumed that plank has n

0 0
