The cantilevered elbow rod has a diameter of 0.5 in.
The cantilevered elbow rod has a diameter of 0.5 in. If it is subjected to the applied loads at its free end as shown, (a) determine the resultant forces and moments Fx, Fy, Fz, Mx, My, Mz at the cross-section indicated, (b) calculate the stress components that act at point A due to each force/moment/torsion and determine the state of stress at point A, and (c) calculate the principal stresses, the angle of principal direction, maximum shear stress and direction...
cantilevered elbow rod has a diam of 0.5 in. 'it is subjected to the applied loads...
cantilevered elbow rod has a diam of 0.5 in. 'it is subjected to the applied loads at its free end (a) determine the resultant forces and moments Fx, Fy, F,,Mx, My, M, at the cross- section indicated, (b) calculate the stress components that act at point A due to each force/moment/torsion and determine the state of stress at point A, and (c) calculate the principal stresses, the angle of principal direction, maximum shear stress and direction at point A. (a)...
show steps Force Vector Directed along a Line Learning Goal: To find a force's directional components...
show steps
Force Vector Directed along a Line Learning Goal: To find a force's directional components that act along a cable and to find the coordinates of a point on a cable that has a force vector applied to it. Three-dimensional Cartesian force vectors and used throughout engineering mechanics. The generic force vector is represented as follows: F = Fzi + Fyj + Fzk where F is the force vector and Fx, Fy, and Fz are the vector's I, j,...
1.) Vectors Can the x or y component of a vector ever have a greater magnitude...
1.) Vectors Can the x or y component of a vector ever have a greater magnitude than the vector itself has? Yes. The x component can, but the y component cannot. Yes, but only when the x and y components have equal magnitudes. Yes. Both components can. Yes. The y component can, but the x component cannot. No. Neither component can. 2.) A force vector has a magnitude of 370 newtons (N) and points at an angle of 53.0° below...

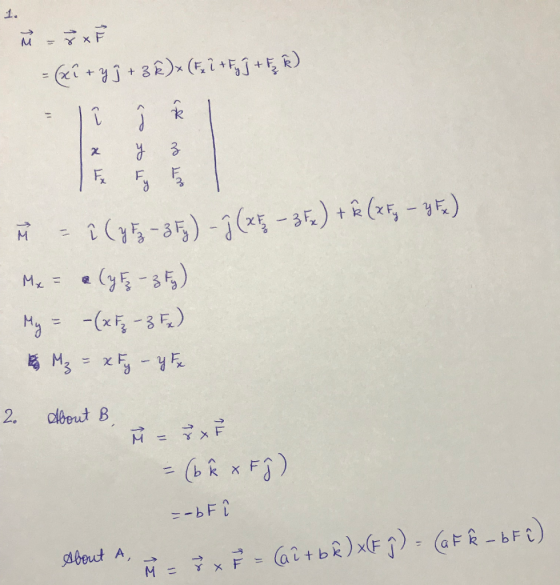

Problem 3.2 Determine the moment around B from the cable, and the perpendicular distance from point B to cable AC Student ID Number: Given Length (ft) 10 Cy-5+C Tension in cable500 lbs Break force in...
Problem 3.2 Determine the moment around B from the cable, and the perpendicular distance from point B to cable AC Student ID Number: Given Length (ft) 10 Cy-5+C Tension in cable500 lbs Break force into their x, y, z components using unit vector uni AC vector Fx AX dz chec 2.Calculate moments of forces about (0,0) M-rxFrx ry rz Fz Mi Mk- Total M 3. Find the perpendicular distance from point A to the cable BC DistForce
Problem 3.2 Determine...
Determine the magnitude of the moments of the force F about the x, y, and z...
Determine the magnitude of the moments of the force F about the
x, y, and z axes.
a. Solve the problem using a Cartesian vector approach. Express
your answer in terms of the unit vectors i, j, and k.
b. Solve the problem using a scalar approach. Express your
answers using three significant figures separated by commas.
4 ft 3 ft 2 ft
Engineering Mechnaics: Statics & Dynamics - Volume 1, Problem 2.137. 2.137 The force vector F points...
Engineering Mechnaics: Statics
& Dynamics - Volume 1, Problem 2.137.
2.137 The force vector F points along the straight line fronm point A to point B. Its magnitude is F 20 N. The coordinates of points A and B are xA-б m, y,-8 m, ZA-4 m and (a) Express the vector F in terms of its components. (b) Use Eq. (2.34) to determine the cross products rA X F and TA 2 Problem 2.137
mechanics materials To determine the reactive forces and moments acting on a beam; express the shear...
mechanics materials
To determine the reactive forces and moments acting on a beam; express the shear and bending moment as functions of their positions along the beam; and construct shear and bending moment diagrams. The cantilever beam shown is subjected to a moment at A and a distributed load that acts over segment BC, and is foxed at C. Determine the reactions at the support located at C. Then write expressions for shear and bending moment as a function of...
Shear and Bending Moment Diagrams Learning Goal: To determine the reactive forces and moments acting on...
Shear and Bending Moment Diagrams
Learning Goal:
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams.
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending...
PHYS 242 Drill Set A charge (12 nC) is located 0.06 m west of the origin....
PHYS 242 Drill Set A charge (12 nC) is located 0.06 m west of the origin. A second charge (-12 nC) is located 0.04 m east of the origin. 1. Find the potential (voltage) at the origin (O), due to the field of the 2 charges (Hint: potential at distance r from a charge q is k Ans: (i) Find the potential at a point A which is 0.04 m west of the origin Ans: (iii) What is the potential...
cantilevered elbow rod has a diam of 0.5 in. 'it is subjected to the applied loads at its free end (a) determine the resultant forces and moments Fx, Fy, F,,Mx, My, M, at the cross- section indicated, (b) calculate the stress components that act at point A due to each force/moment/torsion and determine the state of stress at point A, and (c) calculate the principal stresses, the angle of principal direction, maximum shear stress and direction at point A. (a)...
show steps
Force Vector Directed along a Line Learning Goal: To find a force's directional components that act along a cable and to find the coordinates of a point on a cable that has a force vector applied to it. Three-dimensional Cartesian force vectors and used throughout engineering mechanics. The generic force vector is represented as follows: F = Fzi + Fyj + Fzk where F is the force vector and Fx, Fy, and Fz are the vector's I, j,...
Problem 3.2 Determine the moment around B from the cable, and the perpendicular distance from point B to cable AC Student ID Number: Given Length (ft) 10 Cy-5+C Tension in cable500 lbs Break force into their x, y, z components using unit vector uni AC vector Fx AX dz chec 2.Calculate moments of forces about (0,0) M-rxFrx ry rz Fz Mi Mk- Total M 3. Find the perpendicular distance from point A to the cable BC DistForce
Problem 3.2 Determine...
Determine the magnitude of the moments of the force F about the
x, y, and z axes.
a. Solve the problem using a Cartesian vector approach. Express
your answer in terms of the unit vectors i, j, and k.
b. Solve the problem using a scalar approach. Express your
answers using three significant figures separated by commas.
4 ft 3 ft 2 ft
Engineering Mechnaics: Statics
& Dynamics - Volume 1, Problem 2.137.
2.137 The force vector F points along the straight line fronm point A to point B. Its magnitude is F 20 N. The coordinates of points A and B are xA-б m, y,-8 m, ZA-4 m and (a) Express the vector F in terms of its components. (b) Use Eq. (2.34) to determine the cross products rA X F and TA 2 Problem 2.137
mechanics materials
To determine the reactive forces and moments acting on a beam; express the shear and bending moment as functions of their positions along the beam; and construct shear and bending moment diagrams. The cantilever beam shown is subjected to a moment at A and a distributed load that acts over segment BC, and is foxed at C. Determine the reactions at the support located at C. Then write expressions for shear and bending moment as a function of...
Shear and Bending Moment Diagrams
Learning Goal:
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams.
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending...
PHYS 242 Drill Set A charge (12 nC) is located 0.06 m west of the origin. A second charge (-12 nC) is located 0.04 m east of the origin. 1. Find the potential (voltage) at the origin (O), due to the field of the 2 charges (Hint: potential at distance r from a charge q is k Ans: (i) Find the potential at a point A which is 0.04 m west of the origin Ans: (iii) What is the potential...
