A 1.93 mF capacitor with an initial stored energy of 0.432 J is discharged through a...

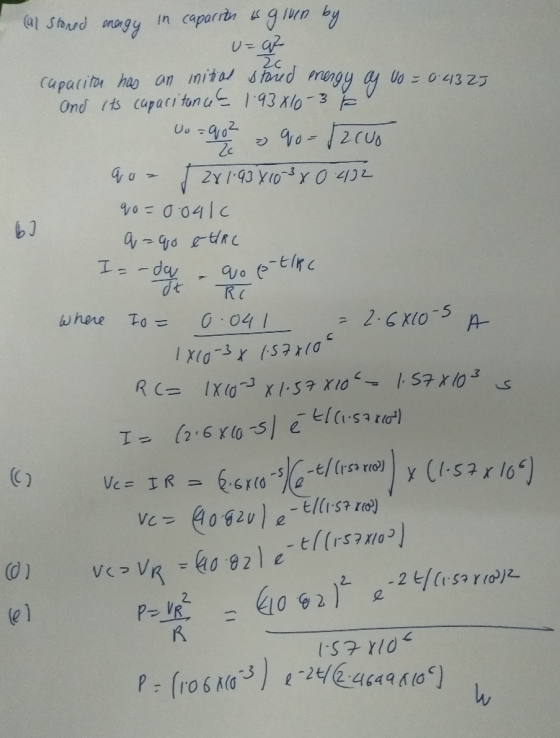

A 1.93 mF capacitor with an initial stored energy of 0.432 J is discharged through a 1.57 MΩ resistor. (a) What is the initial charge on the capacitor? (b) What is the current through the resistor when the discharge starts? At time t = 976 s, find (c) the potential difference VC across the capacitor, (d) the potential difference VR across the resistor, and (e) the rate at which thermal energy is produced in the resistor.
Homework Answers
Add Answer to:
A 1.93 mF capacitor with an initial stored energy of 0.432 J is
discharged through a...
A 1.25 mF capacitor with an initial stored energy of 0.211 J is discharged through a...
A 1.25 mF capacitor with an initial stored energy of 0.211 J is discharged through a 1.46 MΩ resistor. (a) What is the initial charge on the capacitor? (b) What is the current through the resistor when the discharge starts? At time t = 730 s, find (c) the potential difference VC across the capacitor, (d) the potential difference VR across the resistor, and (e) the rate at which thermal energy is produced in the resistor.
Chapter 27, Problem 068 A 1.08 mF capacitor with an initial stored energy of 0.132 )...
Chapter 27, Problem 068 A 1.08 mF capacitor with an initial stored energy of 0.132 ) is discharged through a 1.93 M22 resistor. (a) What is the initial charge on the capacitor? (b) What is the current through the resistor when the discharge starts? At time t = 605 s, find (c) the potential difference VC across the capacitor, (d) the potential difference VR across the resistor, and (e) the rate at which thermal energy is produced in the resistor....
Chapter 27. Problem 068 A 1.33 mi capacitor with an initial stored energy of 0.293 )...
Chapter 27. Problem 068 A 1.33 mi capacitor with an initial stored energy of 0.293 ) is discharged through a 1.65 MO rester (a) What is the initial charge on the capacitor (b) What is the current through the resistor when the discharge starts? At time t316s, find (c) the potential difference Ve across the capacitor (d) the potential difference V across the rest, and (c) the best which thermal energy is produced in the resistor (a) Number
A 4.0- mF capacitor is discharged through a 4.0- kΩ resistor. How long will it take...
A 4.0- mF capacitor is discharged through a 4.0- kΩ resistor. How long will it take for the capacitor to lose half its initial stored energy?
A 10 mF capacitor is discharged through a 6 kilo-Ohm resistor. How long will it take...
A 10 mF capacitor is discharged through a 6 kilo-Ohm resistor. How long will it take for the capacitor to lose one-forth of its initial stored energy?
THQ-1 (5-points) An initially charged capacitor is discharged through a resistor: C a) Will the capacitor...
THQ-1 (5-points) An initially charged capacitor is discharged through a resistor: C a) Will the capacitor discharge faster or slower if the resistance is increased (using the same amount of initial charge)? b) Will the capacitor discharge faster or slower if the capacitance is increased (using the same amount of initial charge)? c) As the capacitor discharges, does the magnitude of the current through the resistor increase or decrease in time? d) As the capacitor discharges, what is the magnitude...
A 2.00-nF capacitor with an initial charge of 4.51 uC is discharged through a 1.06-k2 resistor....
A 2.00-nF capacitor with an initial charge of 4.51 uC is discharged through a 1.06-k2 resistor. (a) Calculate the current in the resistor 9.00 us after the resistor is connected across the terminals of the capacitor. dQ (Let the positive direction of the current be define such that >0.) dt x How is the instantaneous current related to the potential difference across the capacitor? ma (b) What charge remains on the capacitor after 8.00 us? X What is the equation...
A capacitor with an initial potential difference of 122 V is discharged through a resistor when...
A capacitor with an initial potential difference of 122 V is discharged through a resistor when a switch between them is closed at t = 0 s. At t = 10.0 s, the potential difference across the capacitor is 1.68 V. (a) What is the time constant of the circuit? (b) What is the potential difference across the capacitor at t = 17.5 s?
A capacitor with an initial potential difference of 117 V is discharged through a resistor when...
A capacitor with an initial potential difference of 117 V is discharged through a resistor when a switch between them is closed at t = 0 s. At t = 10.0 s, the potential difference across the capacitor is 1.11 V. (a) What is the time constant of the circuit? (b) What is the potential difference across the capacitor at t = 15.7 s?
A capacitor with an initial potential difference of 181 V is discharged through a resistor when...
A capacitor with an initial potential difference of 181 V is discharged through a resistor when a switch between them is closed at t = 0 s. At t = 10.0 s, the potential difference across the capacitor is 1.08 V. (a) What is the time constant of the circuit? (b) What is the potential difference across the capacitor at t = 16.1 s?
Chapter 27, Problem 068 A 1.08 mF capacitor with an initial stored energy of 0.132 ) is discharged through a 1.93 M22 resistor. (a) What is the initial charge on the capacitor? (b) What is the current through the resistor when the discharge starts? At time t = 605 s, find (c) the potential difference VC across the capacitor, (d) the potential difference VR across the resistor, and (e) the rate at which thermal energy is produced in the resistor....
Chapter 27. Problem 068 A 1.33 mi capacitor with an initial stored energy of 0.293 ) is discharged through a 1.65 MO rester (a) What is the initial charge on the capacitor (b) What is the current through the resistor when the discharge starts? At time t316s, find (c) the potential difference Ve across the capacitor (d) the potential difference V across the rest, and (c) the best which thermal energy is produced in the resistor (a) Number
THQ-1 (5-points) An initially charged capacitor is discharged through a resistor: C a) Will the capacitor discharge faster or slower if the resistance is increased (using the same amount of initial charge)? b) Will the capacitor discharge faster or slower if the capacitance is increased (using the same amount of initial charge)? c) As the capacitor discharges, does the magnitude of the current through the resistor increase or decrease in time? d) As the capacitor discharges, what is the magnitude...
A 2.00-nF capacitor with an initial charge of 4.51 uC is discharged through a 1.06-k2 resistor. (a) Calculate the current in the resistor 9.00 us after the resistor is connected across the terminals of the capacitor. dQ (Let the positive direction of the current be define such that >0.) dt x How is the instantaneous current related to the potential difference across the capacitor? ma (b) What charge remains on the capacitor after 8.00 us? X What is the equation...
