012 (part 1 of 3) 10.0 points Four long, parallel conductors carry equal cur- rents of I at the corners of a square with side

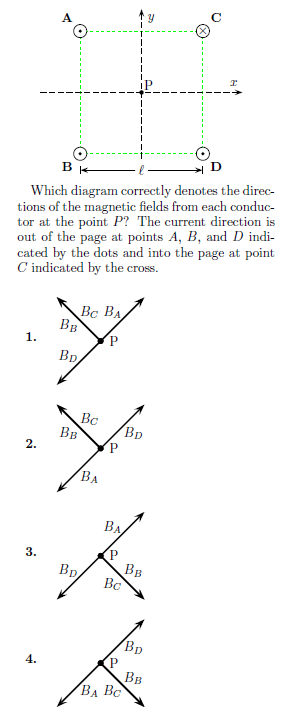

-------- BI Which diagram correctly denotes the direc- tions of the magnetic fields from each conduc- tor at the point P? The

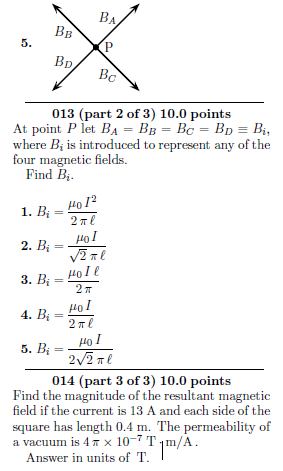

Bo BC 013 (part 2 of 3) 10.0 points At point P let BA = BB = Bc = Bp = Bi, where B, is introduced to represent any of the fou

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

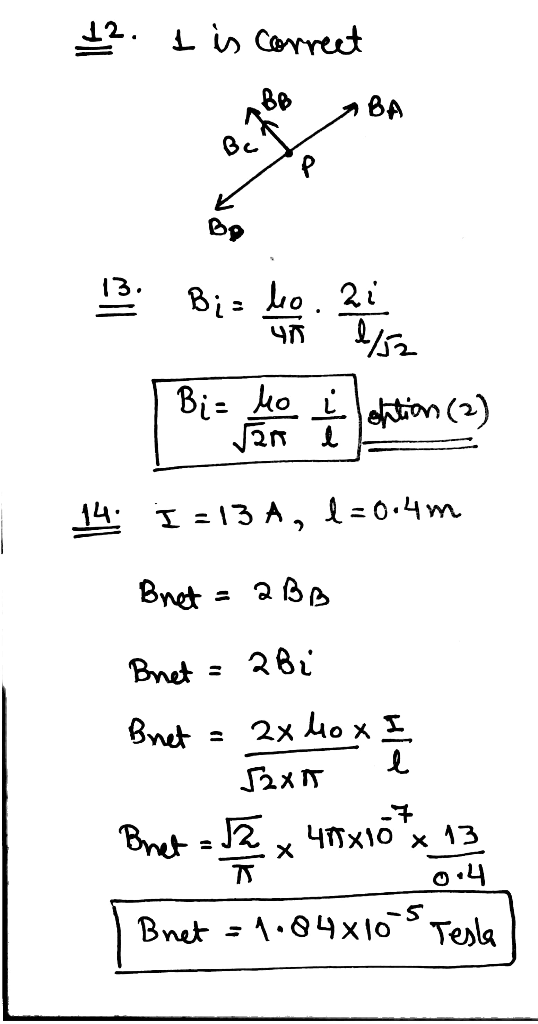

12. I is correct BB BA 13. Bis het zoeken Biz ortion (2) 14: I = 13 A, l=0.4m Bnet - 2 BB Bret = abi Bret = 2x ko x I 52x1 l

0 0
Add a comment
Know the answer?
Add Answer to:
012 (part 1 of 3) 10.0 points Four long, parallel conductors carry equal cur- rents of...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • part 1 of 4 BD BA BB 1. Р Four long, parallel conductors carry equal 3...

    part 1 of 4 BD BA BB 1. Р Four long, parallel conductors carry equal 3 A currents,oriented at the corners of a square with sides of length of 0.2 m. A cross- sectional view of the conductors is shown. The current direction is out of the page at points indicated by the dots and into the page at points indicated by the crosses. A D Вс, 3 AO 03A Вс 2. (Р BB BA BD BA 3 A С...

  • long, paralle conductors carry equal 3 A currents,oriented at the corners of a square with sides...

    long, paralle conductors carry equal 3 A currents,oriented at the corners of a square with sides of length of 0.2 m. A cross- sectional view of the conductors is shown. The current direction is out of the page at points indicated by the dots and into the page at points indicated by the crosses. A D Ay 3 AO 03 A IP 3 A 3 A BK 0.2 m С Which diagram correctly denotes the direc- tions of the components...

  • please fill in the blanks Four long, parallel conductors carry equal currents of I = 6.70...

    please fill in the blanks Four long, parallel conductors carry equal currents of I = 6.70 A. The figure below is an end view of the conductors. The current direction is into the page at points A and B and out of the page at C and D. А С BX D (a) Calculate the magnitude of the magnetic field at point P, located at the center of the square of edge length ( = 0.200 m. (b) Determine the...

  • please make sure to fill in the blanks Four long, parallel conductors carry equal currents of...

    please make sure to fill in the blanks Four long, parallel conductors carry equal currents of I = 6.70 A. The figure below is an end view of the conductors. The current direction is into the page at points A and B and out of the page at C and D. AX • С 1 B (a) Calculate the magnitude of the magnetic field at point P, located at the center of the square of edge length = 0.200 m....

  • Four long, parallel conductors carry equal currents of I- 2.00 A. The figure below is an...

    Four long, parallel conductors carry equal currents of I- 2.00 A. The figure below is an end view of the conductors. The current direction is into the page at points A and B and out of the page at C and (a) Calculate the magnitude of the magnetic field at point P, located at the center of the square of edge length 0.200 m n. HT (b) Determine the direction of the magnetic field at point P, located at the...

  • Four long, parallel conductors carry equal currents of I2.60 A. The figure below is an end view of the conductors. The current direction is into the page at points A and B and out of the page at C an...

    Four long, parallel conductors carry equal currents of I2.60 A. The figure below is an end view of the conductors. The current direction is into the page at points A and B and out of the page at C and D (a) Calculate the magnitude of the magnetic field at point P, located at the center of the square of edge length f = 0.200 m. HT (b) Determine the direction of the magnetic field at point P, located at...

  • Four long, parallel conductors carry equal crents of I9.00 A. The figure below is an end...

    Four long, parallel conductors carry equal crents of I9.00 A. The figure below is an end view of the conductors. The current direction is into the page at points A and B and out of the page at C and D. (a) Calculate the magnitude of the magnetic field at point P, located at the center of the square of edge length0.200 m HT (b) Determine the direction of the magnetic field at point P, located at the center of...

  • 8. -2 points SerPSE10 29.3.OP018 MI. My Notes Ask Your Four long, parallel conductors carry equal...

    8. -2 points SerPSE10 29.3.OP018 MI. My Notes Ask Your Four long, parallel conductors carry equal currents of I-3.80 A. The figure below is an end view of the conductors. The current direction is into the page at points A and B and out of the page at C and D. (a) Calculate the magnitude of the magnetic field at point P, located at the center of the square of edge length0.200 m (b) Determine the direction of the magnetic...

  • Four long, parallel conductors carry equal currents of I=4.93 A. The figure shown below is an...

    Four long, parallel conductors carry equal currents of I=4.93 A. The figure shown below is an end view of the conductors. The direction of the current is into the page at points A and B (indicated by the crosses) and out of the page at C and D (indicated by the dots). Calculate the magnitude and direction of the magnetic field at point P, located at the center of the square with edge of length 0.200 m. (Draw the figure...

  • Four long, parallel conductors carry equal currents of I = 4.21 A. The figure shown below...

    Four long, parallel conductors carry equal currents of I = 4.21 A. The figure shown below is an end view of the conductors. The direction of the current is into the page at points A and B (indicated by the crosses) and out of the page at C and D indicated by the dots). Calculate the magnitude and direction of the magnetic field at point P, located at the center of the square with edge of length 0.200 m. 5.95...
