Charges +2Q, +2Q, and – Q are placed at the corners of an equilateral triangle of...

Question

Question

Charges +2Q, +2Q, and – Q are placed at the corners of an equilateral triangle of...

Charges +2Q, +2Q, and – Q are placed at the corners of an equilateral triangle of side a . Determine the magnitude and direction of the force on the negative charge.

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

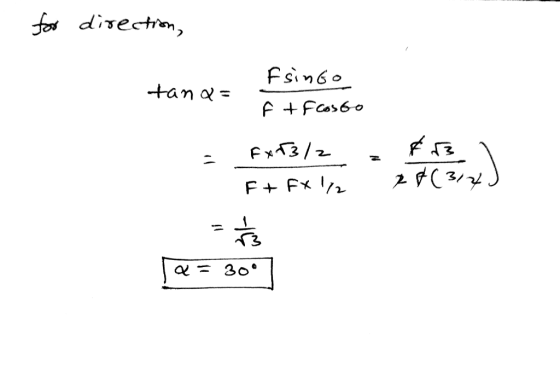

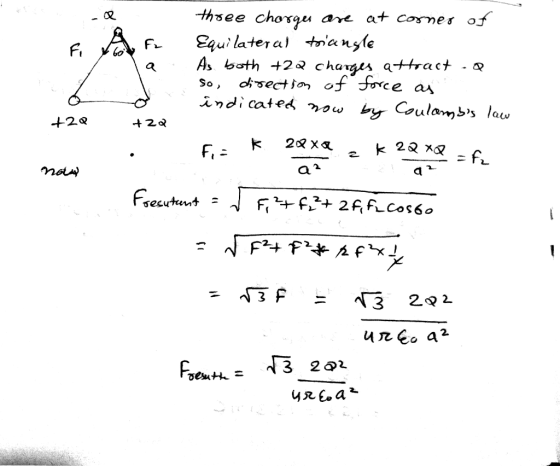

F- Sauilateral tane indi cated 2.

Add a comment
