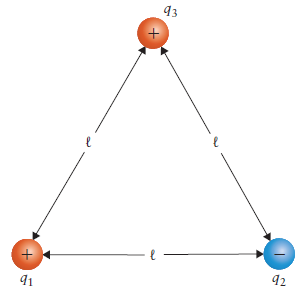

We study the three point charges shown in the figure. They are held at the corners of an equilateral triangle with ℓ = 0.8 m. What is the electric potential energy (in J) of the system of three point charges? Use for the three charges q1 = +2Q, q2 = −3Q, and q3 = +Q, where Q = 107 nC.
Homework Answers

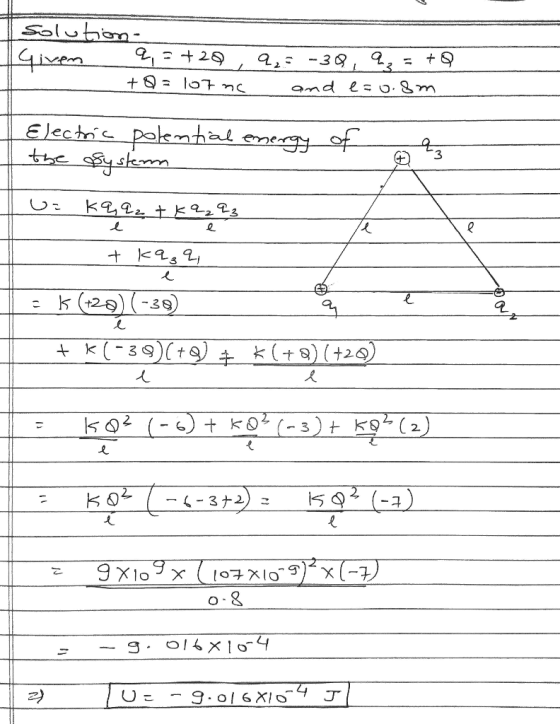

If you have any doubt please add in the comment box or else Please like thank you
