Question

A charge, q1, of +15 micro-coulombs is located at x = 0, y = 10 cm,...

A charge, q1, of +15 micro-coulombs is located at x = 0, y = 10 cm, a charge q2 of -42 micro-coulombs is located at x = 0, y = -3.9 cm, an unknown charge of q3, is located at x =- 4.1 cm, y = 0 cm, and a charge, q4, -8 micro-coulombs is located at x = +13.9 cm, y = 0 cm. The direction of the total electric force on q4 is 127.8 degrees from the +x axis, counter-clockwise. What is the unknown charge, q3, in micro-coulombs? If negative, include a negative sign in your answer.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

If distance between two charges q1 and q2 is r then force on each charge is -

F=kq1q2/r​​​​​​2

Where k=8.99x109N-m2/c​​​​​2

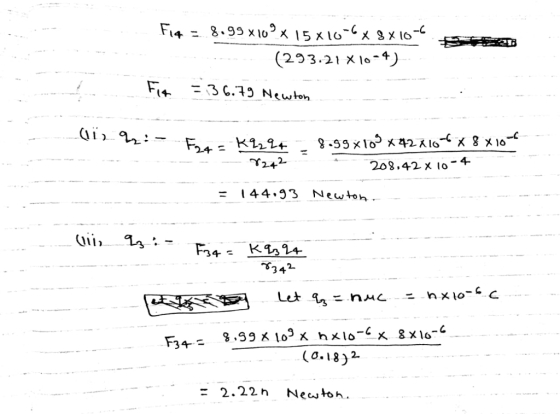

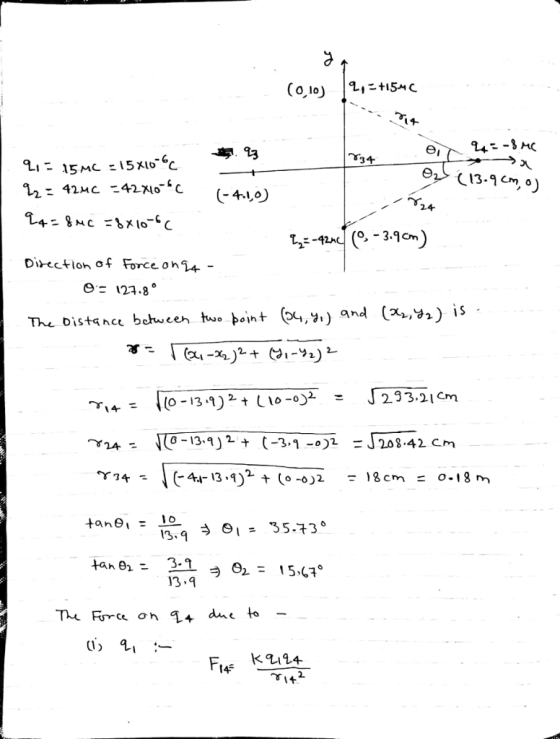

if both charges are positive or negative then force acting on charges are repulsive.3 24 Diectlonof Force ohi4 - 124.30 tuoh-int (X,,W) and (a,M) įs The oista nce bchu een 10-13-1) 2 t L 10-ojo ½g 3.21 cm Frs K21.41チ 8.ggX10X 15%IO-CX3X16- = (293.21 X10-4 208.42 x lo-4 24 - 144-33 Newton S142 (a.18) 2. # 2.22 h Newton.

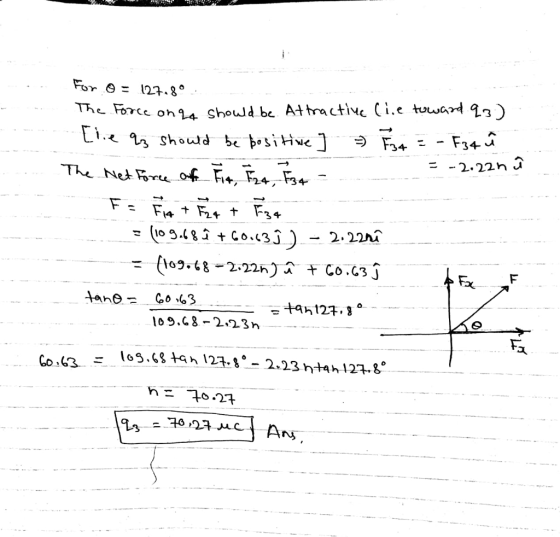

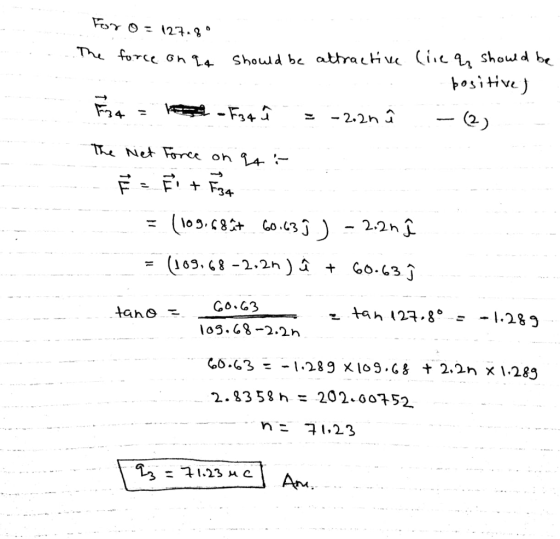

And both charges are opposite sign then force acting on charges are attractiveFor 127.8 ורד Force oh4 Should be At tra ctive Ci.e tuwaㅝ91) 4- 222n J 4,24 34 ナ 1-34 14- 2.1ni - (1o5-48 -2-22h) t Co.C33 Fx 109.cg一2.2 3 n C.0.63 -MA トositive 2. 3チ - 2.2h ^. Co.G3 o5.68-2.h 2.8358 h = 202.60752 nニ 子1.23 Aru
