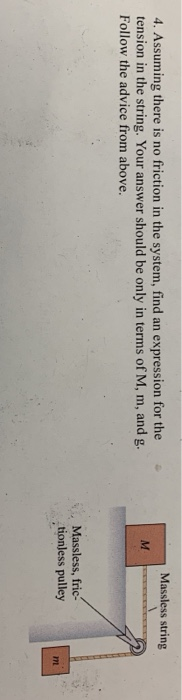

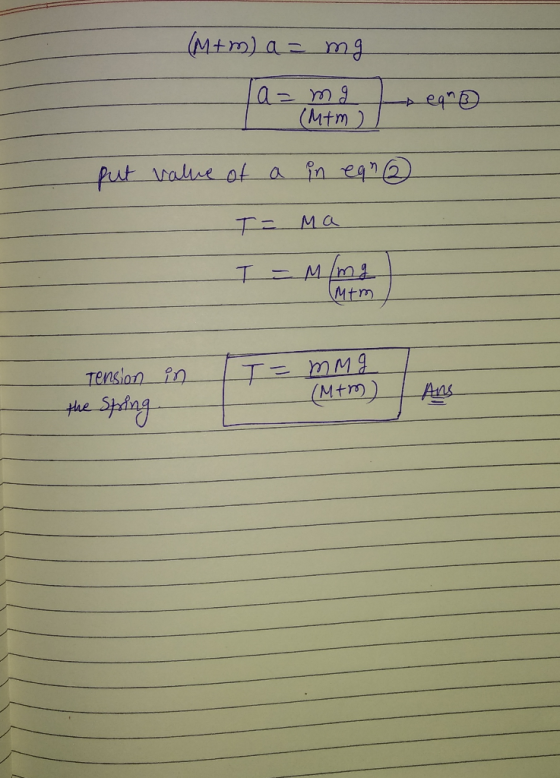

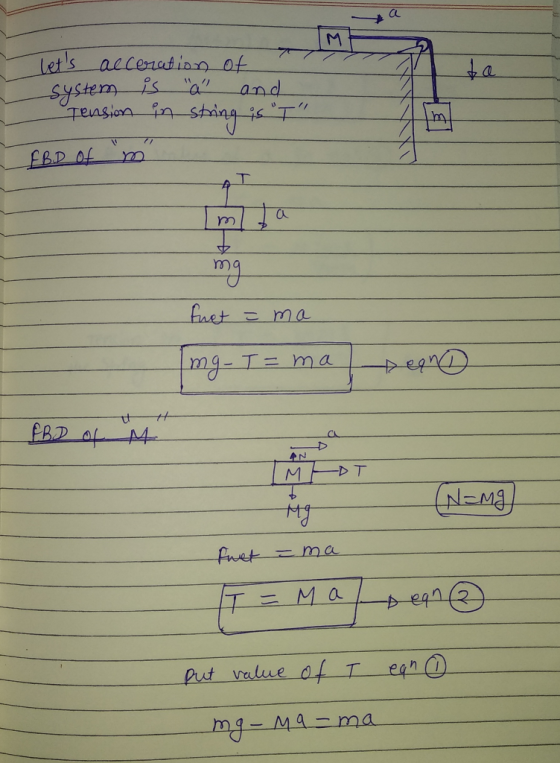

Massless string 4. Assuming there is no friction in the system, find an expression for the...
Please answer the questions in each photo thank you! Page 2 of 3 HYS 181: Ropes...
Please answer the questions in each photo thank you!
Page 2 of 3 HYS 181: Ropes and Pulleys Names: 1.0 kg 3. The 1.0 kg block in the figure is tied to the wall with a rope. It sits on top of the 2.0 kg block. The lower block is pulled to the right with a tension force of 20 N. The coefficient of kinetic friction at both the lower and upper surfaces of the 2.0 kg block is th=0.40....
An object, with mass M, is located on a frictionless table. A massless string is attached...
An object, with mass M, is located on a frictionless table. A massless string is attached to this mass and is attached to another mass, with mass m, hanging over the edge of the table by a massless, frictionless pulley. Find the tension in the string, T, and the acceleration of the system, a, in terms of M, m, and g.
Two different blocks ?A and ?B are connected together via a massless string over a massless...
Two different blocks ?A and ?B are connected together via a massless string over a massless and frictionless pulley fixed to the edge of a table. Block A is falling straight down while block B is sliding along the horizontal table. The coefficient of kinetic friction between block B and the surface of the table is ?k; air resistance is negligible. 1a. Visualize the situation with an annotated sketch, and motion and free-body diagrams: 1b. Derive an expression for the...
Two different blocks ?A and ?B are connected together via a massless string over a massless...
Two different blocks ?A and ?B are connected together via a massless string over a massless and frictionless pulley fixed to the edge of a table. Block A is falling straight down while block B is sliding along the horizontal table. The coefficient of kinetic friction between block B and the surface of the table is ?k; air resistance is negligible. a. Visualize the situation with an annotated sketch, and motion and free-body diagrams: b. Derive an expression for the...
Refer to the diagram (a side view). The string and the pulley are ideal (massless). Friction...
Refer to the diagram (a side view). The string and the pulley are ideal (massless). Friction (mu_S > mu_g) is available between m_2 and the ramp. Do the following calculations. Your final result in each case should be an algebraic expression containing only known values. a. Assuming that tan theta > mu_s, m_g, and g are all known values: What value(s) of m_2 would allow it (m_2) to begin to slide along the ramp, starting from rest? b. Assuming that...
If the pulley is being held by a force sensor, assuming pulley and string are massless,...
If the pulley is being held by a force sensor, assuming pulley and string are massless, the force would measure the combination of tension in both sides of the rope. Assume that you are lightly holding the string on top of the pulley to prevent movement. (Your finger doesn't add weight, it just holds the string still). How does the force measured change from this moment (string held still) to when the system is able to freely accelerate? Explain why.
below. Consider the system below. The pulley is massless and frictionless, and the string is massless....
below. Consider the system below. The pulley is massless and frictionless, and the string is massless. The mass of each block is ma = 5.0 kg, mo = 2.0 kg, mc = 4.0 kg, and md = 15.0 kg. The coefficient of kinetic friction is 0.35 for all surfaces. Mass mais initially in motion moving downward. a b с d a. Calculate the acceleration of the system? b. Calculate the tension in the string between block c and block d?...
Problem 13 Blocks of mass mį and m2 are connected by a massless string that passes...
Blocks of mass m1 and m2 are connected by a massless string that passes over the pulley in the figure (Figure 1). The pulley turns on frictionless bearings, and mass m1 slides on a horizontal, frictionless surface. Mass m2 is released while the blocks are at rest.Part AAssume the pulley is massless. Find the acceleration of m1.Express your answer in terms of some or all of the variables m1, m2, and constant g .Part BFind the tension in the string.Express...
Two blocks are connected by a massless rope.
Two blocks are connected by a massless rope. The rope passes over an ideal (frictionless and massless) pulley such that one block with mass m1=13.75 kg is on a horizontal table and the other block with mass m2=6.5 kg hangs vertically. Both blocks experience gravity and the tension force, T. Use the coordinate system specified in the diagram. Part (a) Assuming friction forces are negligible, write an expression, using only the variables provided, for the acceleration that the block of mass...
In the figure, two 6.20 kg blocks are connected by a massless string over a pulley...
In the figure, two 6.20 kg blocks are connected by a massless string over a pulley of radius 2.40 cm and rotational inertia of 7.40 Times 10^-1 kg m^2. The string does not slip on the pulley; and there is no friction between the table and the sliding block; the pulley's axis is frictionless. When this system is released from rest the pulley turns through 1.30 rad in 91.0 ms and the acceleration of the blocks is constant. What are...
Please answer the questions in each photo thank you!
Page 2 of 3 HYS 181: Ropes and Pulleys Names: 1.0 kg 3. The 1.0 kg block in the figure is tied to the wall with a rope. It sits on top of the 2.0 kg block. The lower block is pulled to the right with a tension force of 20 N. The coefficient of kinetic friction at both the lower and upper surfaces of the 2.0 kg block is th=0.40....
Refer to the diagram (a side view). The string and the pulley are ideal (massless). Friction (mu_S > mu_g) is available between m_2 and the ramp. Do the following calculations. Your final result in each case should be an algebraic expression containing only known values. a. Assuming that tan theta > mu_s, m_g, and g are all known values: What value(s) of m_2 would allow it (m_2) to begin to slide along the ramp, starting from rest? b. Assuming that...
below. Consider the system below. The pulley is massless and frictionless, and the string is massless. The mass of each block is ma = 5.0 kg, mo = 2.0 kg, mc = 4.0 kg, and md = 15.0 kg. The coefficient of kinetic friction is 0.35 for all surfaces. Mass mais initially in motion moving downward. a b с d a. Calculate the acceleration of the system? b. Calculate the tension in the string between block c and block d?...
In the figure, two 6.20 kg blocks are connected by a massless string over a pulley of radius 2.40 cm and rotational inertia of 7.40 Times 10^-1 kg m^2. The string does not slip on the pulley; and there is no friction between the table and the sliding block; the pulley's axis is frictionless. When this system is released from rest the pulley turns through 1.30 rad in 91.0 ms and the acceleration of the blocks is constant. What are...
