9 Explain your answer by identifying the peaks that you used to make your analysis Which...

Question

Question

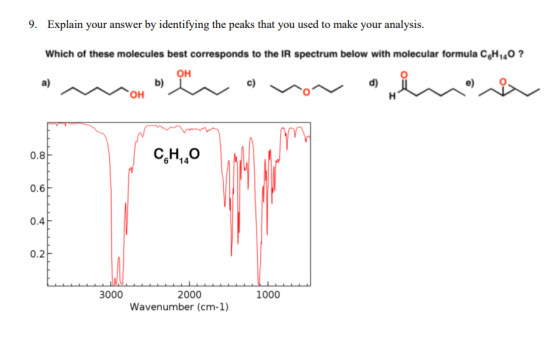

9 Explain your answer by identifying the peaks that you used to make your analysis Which of these molecules best corresponds

science chemistry

Answer 1

Answer #1

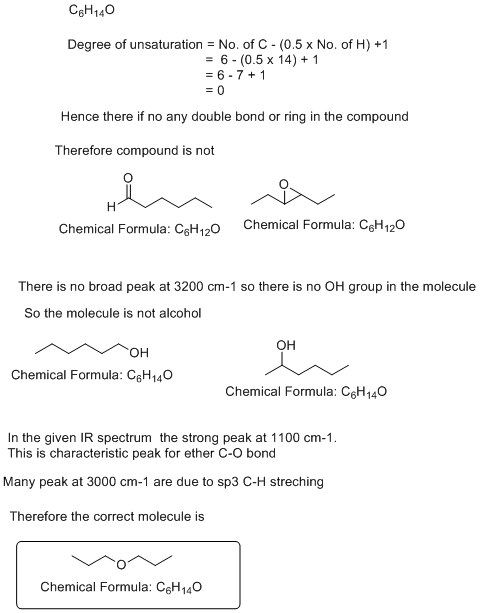

C6H140 Degree of unsaturation = No. of C - (0.5 x No. of H) +1 = 6 - (0.5 x 14) + 1 = 6 - 7 + 1 = 0 Hence there if no any dou

Answer 2
