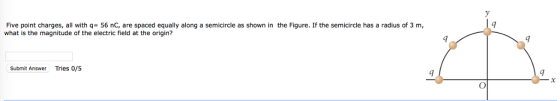

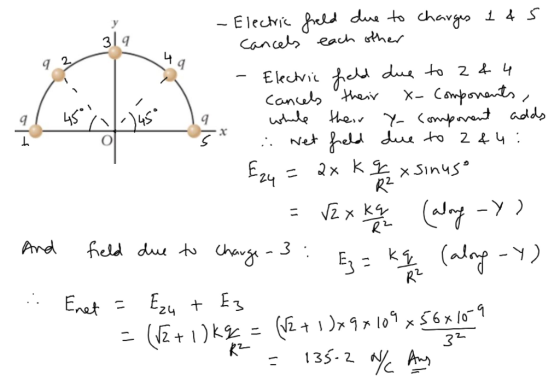

Five point charges, all with q= 56 nC, are spaced equally along a semicircle as shown...
Five point charges, all with q= 19 nC, are spaced equally along a semicircle as shown...
Five point charges, all with q= 19 nC, are spaced equally along
a semicircle as shown in the Figure. If the semicircle has a radius
of 2 m, what is the magnitude of the electric field at the
origin?
Five point charges, all with q= 68 nC, are spaced equally along a semicircle as shown...
Five point charges, all with q= 68 nC, are spaced equally along a semicircle as shown in the Figure. If the semicircle has a radius of 6.5 m, what is the magnitude of the electric field at the origin?
Five point charges, all with q= 20 nC, are spaced equally along a semicircle as shown...
Five point charges, all with
q= 20 nC, are spaced equally along a semicircle as shown in the
Figure. If the semicircle has a radius of 7.5 m, what is the
magnitude of the electric field at the origin?
9 9 9 9 9
Five point charges, all with q-72 nC, are spaced equally along a semicircle as shown in...
Five point charges, all with q-72 nC, are spaced equally along a semicircle as shown in the Figure. If the semicircle has a radius of 1.5 m, what is the magnitude of the electric field at the origin? 9 9 9 藓 9 9
Apps Mail-Amanda Ha... Google New TabTwitter Amanda Havon (Student -section: 01) Physics 212-Messages Courses Help Logout...
Apps Mail-Amanda Ha... Google New TabTwitter Amanda Havon (Student -section: 01) Physics 212-Messages Courses Help Logout » other Bookmarks College Physics II-Spring 2019 Main Menu Contents Grades Syllabus O Timer □Notes Evaluate a Feedback S Print ⓜInfo Course Contents » » IV Five point charges, all with q- 39 nC, are spaced equally along a semicircle as shown in the Figure. If the semicircle has a radius of 1.5 m, what is the magnitude of the electric field at the...
Three positive point charges (Figure 1) are spaced equally along the y axis (x=0), q1 =...
Three positive point charges (Figure 1) are spaced equally along the y axis (x=0), q1 = 5.50 nC at y=+8.00 cm, q2 = 5.50 nC at y=0, and q3 = 5.50 nC at y=−8.00 cm. Find the x and y components of the total electric field Ex and Ey at point P, which is located on the x axis at x=6.00 cm.
15. A point charge Q--400 nC and two unknown point charges, 41 and ?2, are placed...
15. A point charge Q--400 nC and two unknown point charges, 41 and ?2, are placed as shown (l point) Point charge q1 is located 1.3 meters along the +x-axis, point charge q, s located 0.7 meters down the -y-axis, and point charge Ois located 2.0 meters from the origin at an angle of 30° above the x-axis. At the origin, the three charges together create an electric field that has magnitude zero. What is the charge 91? 30° 0...
Problem 20.44 ReviewI Constants PartA An electric dipole is formed from 3.0 nC point charges spaced...
Problem 20.44 ReviewI Constants PartA An electric dipole is formed from 3.0 nC point charges spaced 3.0 mm apart. The dipole is centered at the origin, oriented along the y-axis. What is the electric field strength at point (x, g)- (20 mm, 0 cm)? Express your answer using two significant figures. along the y-axis.red E- N/C Submit Request Answer PartB What is the electric field strength at point ()(0 m, 20 mm)7 Express your answer using two significant figures. E-...
Exercise 21.48 A point charge q -4.00 nC is at the point x 0.60 m, y...
Exercise 21.48 A point charge q -4.00 nC is at the point x 0.60 m, y charge q +6.00 nC is at the point 0.60 m, y= 0. 0.80 m, and a second point Part A Calculate the magnitude of the net electric field at the origin due to these two point charges. Ο ΑΣφ ? N/C E = Request Answer Submit Part B Calculate the direction of the net electric field at the origin due to these two point...
Five charges are located along one straight line. They are all equally spaced and the magnitudes...
Five charges are located along one straight line. They are all equally spaced and the magnitudes of their charges are all the same. The distance between adjacent charges is 1.00 meters. The three on the left are electrons. The fourth one is a proton. The one farthest to the right is also an electron. What will be the acceleration, both magnitude and direction, of the third electron?
Five point charges, all with
q= 20 nC, are spaced equally along a semicircle as shown in the
Figure. If the semicircle has a radius of 7.5 m, what is the
magnitude of the electric field at the origin?
9 9 9 9 9
Five point charges, all with q-72 nC, are spaced equally along a semicircle as shown in the Figure. If the semicircle has a radius of 1.5 m, what is the magnitude of the electric field at the origin? 9 9 9 藓 9 9
Apps Mail-Amanda Ha... Google New TabTwitter Amanda Havon (Student -section: 01) Physics 212-Messages Courses Help Logout » other Bookmarks College Physics II-Spring 2019 Main Menu Contents Grades Syllabus O Timer □Notes Evaluate a Feedback S Print ⓜInfo Course Contents » » IV Five point charges, all with q- 39 nC, are spaced equally along a semicircle as shown in the Figure. If the semicircle has a radius of 1.5 m, what is the magnitude of the electric field at the...
15. A point charge Q--400 nC and two unknown point charges, 41 and ?2, are placed as shown (l point) Point charge q1 is located 1.3 meters along the +x-axis, point charge q, s located 0.7 meters down the -y-axis, and point charge Ois located 2.0 meters from the origin at an angle of 30° above the x-axis. At the origin, the three charges together create an electric field that has magnitude zero. What is the charge 91? 30° 0...
Problem 20.44 ReviewI Constants PartA An electric dipole is formed from 3.0 nC point charges spaced 3.0 mm apart. The dipole is centered at the origin, oriented along the y-axis. What is the electric field strength at point (x, g)- (20 mm, 0 cm)? Express your answer using two significant figures. along the y-axis.red E- N/C Submit Request Answer PartB What is the electric field strength at point ()(0 m, 20 mm)7 Express your answer using two significant figures. E-...
Exercise 21.48 A point charge q -4.00 nC is at the point x 0.60 m, y charge q +6.00 nC is at the point 0.60 m, y= 0. 0.80 m, and a second point Part A Calculate the magnitude of the net electric field at the origin due to these two point charges. Ο ΑΣφ ? N/C E = Request Answer Submit Part B Calculate the direction of the net electric field at the origin due to these two point...
Five charges are located along one straight line. They are all equally spaced and the magnitudes of their charges are all the same. The distance between adjacent charges is 1.00 meters. The three on the left are electrons. The fourth one is a proton. The one farthest to the right is also an electron. What will be the acceleration, both magnitude and direction, of the third electron?
