Question

b. Calculate the time taken for the projectile to reach its maximum height.

c. Calculate the range R (how far in the horizontal) of this projectile.

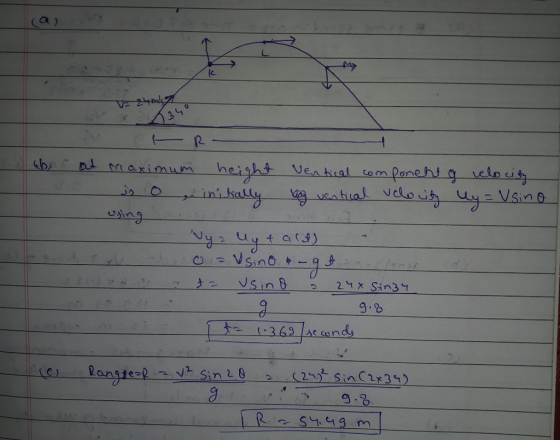

MO21430/S(3)-A11 The diagram below shows a trajectory for a projectile launched at 24 m/s at an angle of 34.0° above the horizontal. The arrow on the diagram below represents the initial velocity vector for the projectile. The distance marked R is the range (how far in the horizontal) of the projectile. a. [3 points] The points K, L and M show the position of the projectile for different times in its trajectory. On the above diagram, qualitatively draw the horizontal and vertical components of the projectile's velocity at these points. Use the initial velocity arrow in the diagram as a reference for scale. L. 24 24 m

Answer 1
