4. -/1 points SerCP11 8.3.P.027. My Notes z A uniform plank of length 2.00 m and...
4. + 0/1 points SerCP11 8.3.P.027. A uniform plank of length 2.00 m and mass 33.5...

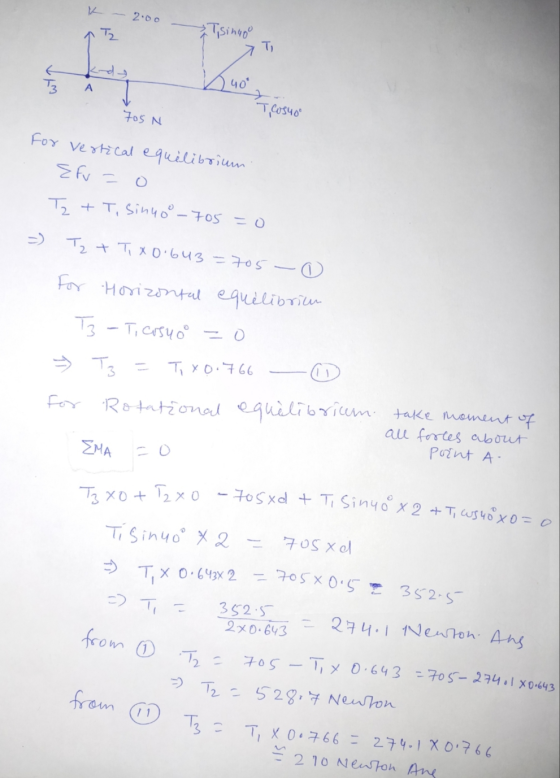

4. + 0/1 points SerCP11 8.3.P.027. A uniform plank of length 2.00 m and mass 33.5 kg is supported by three ropes, as indicated by the blue vectors in the figure below. Find the tension in each rope when a 705-N person is d = 0.500 m from the left end. magnitude of 7, 274.1 *N magnitude of T2 528.7 XN magnitude of 73 210 * N X T, d-l2.00 m Submit Answer
-/1 points 3. SerCP11 8.3.P.026. A window washer is standing on a scaffold supported by a...
-/1 points 3. SerCP11 8.3.P.026. A window washer is standing on a scaffold supported by a vertical rope at each end. The scaffold weighs 208 N and is 2.9 m long. What is the tension in each rope when the 696-N worker stands 1.02 m from one end? N smaller tension larger tension Submit Answer
g g Your last submission is used for your score. a/1 points 3. SerCP11 8.3.P.026. G...
g g Your last submission is used for your score. a/1 points 3. SerCP11 8.3.P.026. G My Notes A window washer is standing on a scaffold supported by a vertical rope at each end. The scaffold weighs 202 N and is 2.9 m long. What is the tension in each rope when the 710-N worker stands 1.08 m from ane end? smalier tension x N Enter a number larger tension Submt Arawr
Z A uniform plank of length 2.00 m and mass 26.5 kg is supported by three...
Z A uniform plank of length 2.00 m and mass 26.5 kg is supported by three ropes, as indicated by the blue vectors in the figure below. Find the tension in each rope when a 715-N person is d = 0.500 m from the left end. magnitude of T magnitude of Tz magnitude of T3 z z 140.0° TA2.00 m- .
A uniform plank of length 2.00 m and mass 35.0 kg is supported by threee ropes,...
A uniform plank of length 2.00 m and mass 35.0 kg is supported by threee ropes, as indicated by the blue vectors in the igure below Find the tension in each rope when a 705-N person is d end 0.500 m from the left magnitude of , 591 62763/2 X N magnitude of T, magnitude of1. 700 25 478 6368128 N X N 10.0 -2.00 m
A uniform plank of length 2.00 m and mass 34.0 kg is supported by three ropes,...
A uniform plank of length 2.00 m and mass 34.0 kg is supported by three ropes, as indicated by the blue vectors in the figure below. Find the tension in each rope when a 685–N person is d = 0.500 m from the left end. magnitude of T1 N magnitude of T2 N magnitude of T3 N A person stands on a horizontal 2.00 m long plank a distance d from the left end. The plank is supported by three...
A uniform plank of length 2.00 m and mass 26.0 kg is supported by three ropes,...
A uniform plank of length 2.00 m and mass 26.0 kg is supported by three ropes, as indicated by the blue vectors in the figure below. Find the tension in each rope when a 715-N person d = 0.500 m from the left end. magnitude of T_1 N magnitude of T_2 N magnitude of T_3 N
A uniform plank of length 2.00 m and mass 31.0 kg is supported by three ropes,...
A uniform plank of length 2.00 m and mass 31.0 kg is supported
by three ropes, as indicated by the blue vectors in the figure
below. Find the tension in each rope when a 685–N person is
d = 0.500 m from the left end.
magnitude of
T1
N
magnitude of
T2
N
magnitude of
T3
N
A uniform plank of length 2.00 m and mass 28.5 kg is supported by three ropes...
A uniform plank of length 2.00 m and mass 28.5 kg is supported by three ropes as indicated by the blue vectors in the figure below. Find the tension in each rope when a 715 N person is d = 0.425 m from the left end. |T_1| = N |T_2| = N |T_3| = N
A uniform plank of length 2.00 m and mass 32.5 kg is supported by three ropes...
A uniform plank of length 2.00 m and mass 32.5 kg is supported by three ropes as indicated by the blue vectors in the figure below. Find the tension in each rope when a 720 N person is d = 0.425 m from the left end. |T1| = N |T2| = N |T3| = N
4. + 0/1 points SerCP11 8.3.P.027. A uniform plank of length 2.00 m and mass 33.5 kg is supported by three ropes, as indicated by the blue vectors in the figure below. Find the tension in each rope when a 705-N person is d = 0.500 m from the left end. magnitude of 7, 274.1 *N magnitude of T2 528.7 XN magnitude of 73 210 * N X T, d-l2.00 m Submit Answer
-/1 points 3. SerCP11 8.3.P.026. A window washer is standing on a scaffold supported by a vertical rope at each end. The scaffold weighs 208 N and is 2.9 m long. What is the tension in each rope when the 696-N worker stands 1.02 m from one end? N smaller tension larger tension Submit Answer
g g Your last submission is used for your score. a/1 points 3. SerCP11 8.3.P.026. G My Notes A window washer is standing on a scaffold supported by a vertical rope at each end. The scaffold weighs 202 N and is 2.9 m long. What is the tension in each rope when the 710-N worker stands 1.08 m from ane end? smalier tension x N Enter a number larger tension Submt Arawr
Z A uniform plank of length 2.00 m and mass 26.5 kg is supported by three ropes, as indicated by the blue vectors in the figure below. Find the tension in each rope when a 715-N person is d = 0.500 m from the left end. magnitude of T magnitude of Tz magnitude of T3 z z 140.0° TA2.00 m- .
A uniform plank of length 2.00 m and mass 35.0 kg is supported by threee ropes, as indicated by the blue vectors in the igure below Find the tension in each rope when a 705-N person is d end 0.500 m from the left magnitude of , 591 62763/2 X N magnitude of T, magnitude of1. 700 25 478 6368128 N X N 10.0 -2.00 m
A uniform plank of length 2.00 m and mass 26.0 kg is supported by three ropes, as indicated by the blue vectors in the figure below. Find the tension in each rope when a 715-N person d = 0.500 m from the left end. magnitude of T_1 N magnitude of T_2 N magnitude of T_3 N
A uniform plank of length 2.00 m and mass 31.0 kg is supported
by three ropes, as indicated by the blue vectors in the figure
below. Find the tension in each rope when a 685–N person is
d = 0.500 m from the left end.
magnitude of
T1
N
magnitude of
T2
N
magnitude of
T3
N
A uniform plank of length 2.00 m and mass 28.5 kg is supported by three ropes as indicated by the blue vectors in the figure below. Find the tension in each rope when a 715 N person is d = 0.425 m from the left end. |T_1| = N |T_2| = N |T_3| = N
A uniform plank of length 2.00 m and mass 32.5 kg is supported by three ropes as indicated by the blue vectors in the figure below. Find the tension in each rope when a 720 N person is d = 0.425 m from the left end. |T1| = N |T2| = N |T3| = N
