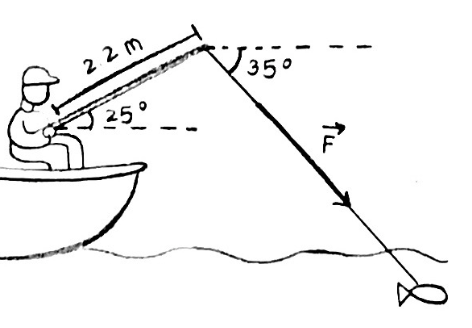

A fishing pole makes an angle of 25.0° above the horizontal.
Calculate the torque exerted by the fish about an axis passing
through the fisherman’s hand and perpendicular to the page if the
fish pulls with a force of 170 N and 35.0° below the horizontal.
The force is applied 2.20 m from the fisherman’s hand
Homework Answers
