Homework Answers
Add Answer to:

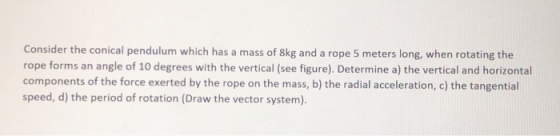

Consider the conical pendulum which has a mass of 8kg and a rope 5 meters long,...
Consider a conical pendulum with a bob of mass m = 78.0 kg on a string...
Consider a conical pendulum with a bob of mass m = 78.0 kg on a string of length L = 10.0 m that makes an angle of θ = 7.00° with the vertical. (Consider +î to be towards the center of the circular path and +ĵ to be upward.) (a) Determine the horizontal and vertical components of the force exerted by the string on the pendulum. (b) Determine the radial acceleration of the bob.
Consider a conical pendulum with a bob of mass m = 75.0 kg on a string...
Consider a conical pendulum with a bob of mass m = 75.0 kg on a string of length L = 10.0 m that makes an angle of 0 = 7.00° with the vertical. (Consider +î to be towards the center of the circular path and +ġ to be upward.) m (a) Determine the horizontal and vertical components of the force exerted by the string on the pendulum.
A pendulum is 0.864 m long and the bob has a mass of 1.04 kg. When...
A pendulum is 0.864 m long and the bob has a mass of 1.04 kg. When the string makes an angle of θ= 14.8 degrees with the vertical, the bob is moving at 1.44 m/s. Find the tangential and radial acceleration components and the tension in the string. (Hint: Draw an FBD for the bob. Choose the x-axis to be tangential to the motion of the bob and the y-axis to be radial. Apply Newton's second law.) at = ______...
Physics
Instead of moving back and forth, a conical pendulum moves in a circle at constant speed as its string traces out a cone (see figure below). One such pendulum is constructed with a string of length L = 12.5 cm and bob of mass 0.262 kg. The string makes an angle ? = 8.48° with the vertical.(a) What is the radial acceleration of the bob?magnitude m/s2direction ---Select--- upward inward outward downward(b) What are the horizontal and vertical components of the tension force exerted by the string on the bob? (Assume radially inward to be the positive x axis and vertically...
3. CONICAL PENDULUM A conical pendulum is a piece of physics apparatus in which a massive...
3. CONICAL PENDULUM A conical pendulum is a piece of physics apparatus in which a massive bob, connected to a string (which also connects to the ceiling) swings around in a horizontal circle. The string traces out the surface of a cone, thus the name conical pendulum. See: Ihttps://www.youtube.com/watch?v 3Tf9xXsgqD4. The bob has mass m, the string length is L and the circle has radius R. Find expressions for the following in terms of the given quantities, and g a)...
A conical pendulum consists of a mass hanging from a string while moving in a horizontal...
A conical pendulum consists of a mass hanging from a string while moving in a horizontal circle of radius r (see Figure 1; the blue arrow indicating velocity is pointing “into” the page, not up.). If the mass moves at constant speed 1.3 m/s and the angle the string does with the vertical is θ = 12◦ , what is the radius r of the circle? (Hint: This is similar to the “hanging chairs” problem from class.)
A simple pendulum with mass m = 2.3 kg and length L = 2.62 m hangs...
A simple pendulum with mass m = 2.3 kg and length L = 2.62 m
hangs from the ceiling. It is pulled back to an small angle of θ =
9.2° from the vertical and released at t = 0. 1) What is the period
of oscillation?
2) What is the magnitude of the force on the pendulum bob
perpendicular to the string at t=0?
3) What is the maximum speed of the pendulum?
4) What is the angular displacement...
A simple pendulum with mass m = 2.1 kg and length L = 2.79 m hangs...
A simple pendulum with mass m = 2.1 kg and length L = 2.79 m hangs from the ceiling. It is pulled back to a small angle of θ = 11.5° from the vertical and released at t = 0. 1) What is the period of oscillation? 2) What is the magnitude of the force on the pendulum bob perpendicular to the string at t=0? 3) What is the maximum speed of the pendulum? 4) What is the angular displacement...
A simple pendulum with mass m = 2.1 kg and length L = 2.3 m hangs...
A simple pendulum with mass m = 2.1 kg and length L = 2.3 m hangs from the ceiling. It is pulled back to an small angle of θ = 11.9° from the vertical and released at t = 0. 1)What is the period of oscillation? 2)What is the magnitude of the force on the pendulum bob perpendicular to the string at t=0? 3)What is the maximum speed of the pendulum? 5)What is the magnitude of the tangential acceleration as...
A simple pendulum with mass m = 1.8 kg and length L = 2.77 m hangs...
A simple pendulum with mass m = 1.8 kg and length L = 2.77 m hangs from the ceiling. It is pulled back to an small angle of θ = 9° from the vertical and released at t = 0. 1) What is the period of oscillation? Answer= 3.34 s 2) What is the magnitude of the force on the pendulum bob perpendicular to the string at t=0? Answer= 2.76 N 3) What is the maximum speed of the pendulum?...
Consider a conical pendulum with a bob of mass m = 75.0 kg on a string of length L = 10.0 m that makes an angle of 0 = 7.00° with the vertical. (Consider +î to be towards the center of the circular path and +ġ to be upward.) m (a) Determine the horizontal and vertical components of the force exerted by the string on the pendulum.
3. CONICAL PENDULUM A conical pendulum is a piece of physics apparatus in which a massive bob, connected to a string (which also connects to the ceiling) swings around in a horizontal circle. The string traces out the surface of a cone, thus the name conical pendulum. See: Ihttps://www.youtube.com/watch?v 3Tf9xXsgqD4. The bob has mass m, the string length is L and the circle has radius R. Find expressions for the following in terms of the given quantities, and g a)...
A simple pendulum with mass m = 2.3 kg and length L = 2.62 m
hangs from the ceiling. It is pulled back to an small angle of θ =
9.2° from the vertical and released at t = 0. 1) What is the period
of oscillation?
2) What is the magnitude of the force on the pendulum bob
perpendicular to the string at t=0?
3) What is the maximum speed of the pendulum?
4) What is the angular displacement...
