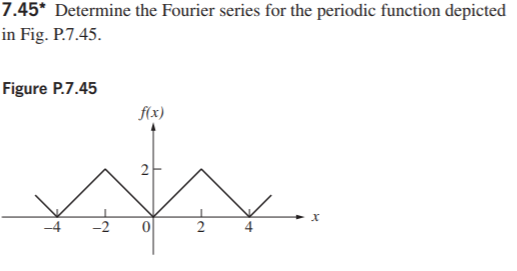

7.45* Determine the Fourier series for the periodic function depicted in Fig. P.7.45. Figure P.7.45

Question

Question

science physics

Answer 1

Answer #1

2 The a bove peuode function ean be 2 -2 n22 2-2 Nos the fourier semes presented as fay Lat n cos n+ bn Sin x 2 T Ohere an f

Answer 2

Similar Homework Help Questions

22 Complex Exponential Fourier Series expouential Fourier series of the periodic triaugular pulse ett) in Fig...

22 Complex Exponential Fourier Series expouential Fourier series of the periodic triaugular pulse ett) in Fig 12. ett) LP Figure 12. Periodic triangular pulse e(t).
16.2 Find the Fourier series expressions for the periodic voltage functions shown in Fig. P16.2. ...

16.2 Find the Fourier series expressions for the periodic voltage functions shown in Fig. P16.2. Note that Fig. P16.2(a) illustrates the square wave; Fig. P16.2(b) illustrates the full-wave rectified sine wave, where u(t)-Yn sin(π/T), 0 t s T; and Fig. P16.2(c) illustrates the half-wave rectified sine wave, where Figure P16.2 v(t) 2T 3T rt v(0) 2T 3T v(t) nt T/2 T 3T/2 16.2 Find the Fourier series expressions for the periodic voltage functions shown in Fig. P16.2. Note that Fig....
please show sulution with steps 5.13. Obtain the Fourier series expansion of the periodic function F()...

please show sulution with steps 5.13. Obtain the Fourier series expansion of the periodic function F() shown in Fig P6. Fit、命 0 T T 37 2T FIG. P5.6

For each of the periodic signals shown in Fig. P6.1-1, find the compact trigonometric Fourier series...

For each of the periodic signals shown in Fig. P6.1-1, find the compact trigonometric Fourier series and sketch the amplitude and phase spectra. If either the sine or cosine terms are absent in the Fourier series, explain why.
Question 1 Find the Fourier series representation of the periodic function below if p = 15...

Question 1 Find the Fourier series representation of the periodic function below if p = 15 and q = 3. Then, evaluate the first few terms of the series up to n = 5 at x = 9.35. 9 -5 < x < 0 f(x)={p if 0<x<10 if f(x+20)= f(x) 9 10 < x <15
Question 3 Determine the Exponential Fourier Series of the periodic signal shown in Figure 1 F(t)...

Question 3 Determine the Exponential Fourier Series of the periodic signal shown in Figure 1 F(t) 1 -2 1 2 Figure 1 (10 marks)

2. Find the Fourier series for the periodic function defined by if 0

2. Find the Fourier series for the periodic function defined by if 0
1. Using the Fourier series analysis Equation 3 for the periodic function r(t) shown in Figure 2....

1. Using the Fourier series analysis Equation 3 for the periodic function r(t) shown in Figure 2.1, determine both the DC coefficient ao and a general expression for the other Fourier series coefficients ak. Do this by hand, not in Matlab. Show all your work in your lab report. You can add these pages as hand-written pages, rather than typing them in to your lab report, if you prefer Hint 1: It will be easiest to integrate this function from...
For each of the periodic signals in Fig. P3.4-3, find the exponential Fourier series and sketch...

For each of the periodic signals in Fig. P3.4-3, find the exponential Fourier series and sketch the corresponding spectra. са А . А А и ДАЛИ ДА Fia. P3.4 - 3 -3 -2

For the periodic function below find the as, a, and bi coefficients in the Fourier series...

For the periodic function below find the as, a, and bi coefficients in the Fourier series expansion. (20 points) 0
