Homework Answers
force on q =qE
Add Answer to:

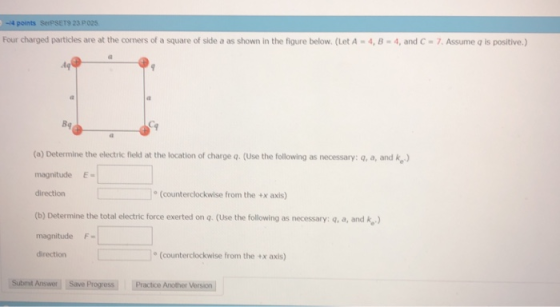

-4 points SerPSET9 23 P025 Four charged particles are at the corners of a square of...
o 2/4 points SerPSET9 23.P025 MyNc Four charged particles are at the corners of a square...
o 2/4 points SerPSET9 23.P025 MyNc Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A-4, B-2, and C. 3. Assume qis positive Bq (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and ke) 4.707 magnitudeE- direction 38.22 (counterclockwise from the +x axis) (b) Determine the total electric force exerted on q. (Use the following as necessary: q, a,...
2. 2/4 points Previous Answers SerPSE9 23.P025 | Four charged particles are at the corners of...
2. 2/4 points Previous Answers SerPSE9 23.P025 | Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A = 5, B = 4, and C-5) 7 (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and ke.) magnitude 9.07. K? direction 45 (counterclockwise from the +x-axis) (b) Determine the total electric force exerted on q. (Use the following as necessary:...
2/4 points Previous Answers SerPSET9 23 P 025 Four charged particles are at the corners of...
2/4 points Previous Answers SerPSET9 23 P 025 Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A-4, 8-4, and C-7. Assume is positive (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and ke magnitude E direction 57 24 (b) Determine the total electric force exerted on o. (Use the following as necessary: q, a, and k magnitude 10ko...
Four charged particles are at the corners of a square of side a as shown in...
Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A=4, B= 4, and c=8. Assume q is positive.) Bq (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and ke.) magnitudeE 一一 direction 498 X。(counterclockwise from the +x axis) (b) Determine the total electric force exerted on q. (Use the following as necessary: q, a, and ke.) magnitude F direction...
Four charged particles are at the corners of a square of side a as shown in...
Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A-4, В-2, and C = 5. Assume 4 is positive.) (a) Determine the electric field at the location of charge q. (Use the tollowing as necessary: <. a, and k) magnitude E direction ° (counterclockwise from the +x axis) (b) Determine the total electric force exerted on q. (Use the following as necessary: q, a, and k) magnitude F direction...
Four charged particles are at the corners of a square of side a as shown in...
Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A 3, B-5, and C 3.) (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and ke.) magnitude | 6.74 ke· direction 45 (counterclockwise from the +x-axis) b) Detemine the total electric force exerted on q. (Use the following as necessary: q, a, and ke) magnitude direction 45 (counterclockwise from the...
Four charged particles are at the corners of a square of side a as shown in...
Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A-4, B = 2, and C-3. Assume q is positive.) (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and k) magnitude E directior (counterclockwise from the +x axis) (b) Determine the total electric force exerted on q. (Use the following as necessary: q, a, and ke) magnitude F direction (counterclockwise...
Four charged particles are at the corners of a square of side a as shown in...
Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A-5, B-4, and C 5.) Bq (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and ke.) magnitude direction (counterclockwise from the +x-axis) (b) Determine the total electric force exerted on q. (Use the following as necessary: q, a, and ke.) magnitude direction (counterclockwise from the +x-axis)
Four charged particles are at the corners of a square of side a as shown in...
Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A = 3, B = 2, and C = 5.) (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and k_e.) magnitude direction degree (counterclockwise from the +x-axis) (b) Determine the total electric force exerted on q. (Use the following as necessary: q, a, and k_e.) magnitude direction degree (counterclockwise from...
[0/0.35 DETAILS PREVIOUS ANSWERS Practice Another Four charged particles are at the corners of a square...
[0/0.35 DETAILS PREVIOUS ANSWERS Practice Another Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A - 5,8 - 4, and C - 3.) Aq 9 a a B4 a (a) Determine the electric field at the location of charge q. (Use the following as necessary: 4, a, and ke.) magnitude direction • (counterclockwise from the +x-axis) (b) Determine the total electric force exerted on q. (Use the following...
o 2/4 points SerPSET9 23.P025 MyNc Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A-4, B-2, and C. 3. Assume qis positive Bq (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and ke) 4.707 magnitudeE- direction 38.22 (counterclockwise from the +x axis) (b) Determine the total electric force exerted on q. (Use the following as necessary: q, a,...
2. 2/4 points Previous Answers SerPSE9 23.P025 | Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A = 5, B = 4, and C-5) 7 (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and ke.) magnitude 9.07. K? direction 45 (counterclockwise from the +x-axis) (b) Determine the total electric force exerted on q. (Use the following as necessary:...
2/4 points Previous Answers SerPSET9 23 P 025 Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A-4, 8-4, and C-7. Assume is positive (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and ke magnitude E direction 57 24 (b) Determine the total electric force exerted on o. (Use the following as necessary: q, a, and k magnitude 10ko...
Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A=4, B= 4, and c=8. Assume q is positive.) Bq (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and ke.) magnitudeE 一一 direction 498 X。(counterclockwise from the +x axis) (b) Determine the total electric force exerted on q. (Use the following as necessary: q, a, and ke.) magnitude F direction...
Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A-4, В-2, and C = 5. Assume 4 is positive.) (a) Determine the electric field at the location of charge q. (Use the tollowing as necessary: <. a, and k) magnitude E direction ° (counterclockwise from the +x axis) (b) Determine the total electric force exerted on q. (Use the following as necessary: q, a, and k) magnitude F direction...
Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A 3, B-5, and C 3.) (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and ke.) magnitude | 6.74 ke· direction 45 (counterclockwise from the +x-axis) b) Detemine the total electric force exerted on q. (Use the following as necessary: q, a, and ke) magnitude direction 45 (counterclockwise from the...
Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A-4, B = 2, and C-3. Assume q is positive.) (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and k) magnitude E directior (counterclockwise from the +x axis) (b) Determine the total electric force exerted on q. (Use the following as necessary: q, a, and ke) magnitude F direction (counterclockwise...
Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A-5, B-4, and C 5.) Bq (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and ke.) magnitude direction (counterclockwise from the +x-axis) (b) Determine the total electric force exerted on q. (Use the following as necessary: q, a, and ke.) magnitude direction (counterclockwise from the +x-axis)
Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A = 3, B = 2, and C = 5.) (a) Determine the electric field at the location of charge q. (Use the following as necessary: q, a, and k_e.) magnitude direction degree (counterclockwise from the +x-axis) (b) Determine the total electric force exerted on q. (Use the following as necessary: q, a, and k_e.) magnitude direction degree (counterclockwise from...
[0/0.35 DETAILS PREVIOUS ANSWERS Practice Another Four charged particles are at the corners of a square of side a as shown in the figure below. (Let A - 5,8 - 4, and C - 3.) Aq 9 a a B4 a (a) Determine the electric field at the location of charge q. (Use the following as necessary: 4, a, and ke.) magnitude direction • (counterclockwise from the +x-axis) (b) Determine the total electric force exerted on q. (Use the following...
