Two forces are applied to a car in an effort to move it, as shown in...

Question

Question

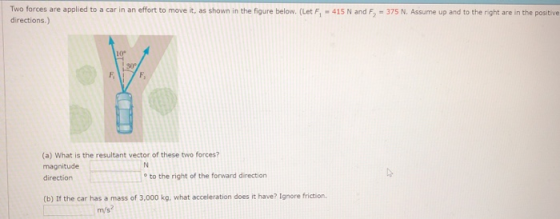

Two forces are applied to a car in an effort to move it, as shown in the figure below. (Let Fi-41S N and 5-375 N. Assume up and to the rent are in the postne directions.) 10° F, (a) What is the resultant vector of these two forces? magnitude direction o to the right of the forward direction (b) If the car has a mass of 3,000 kg, what acceleration does it have? Ignore friction m/s?

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2

Similar Homework Help Questions

Two forces are applied to a car in an effort to move it, as shown in...

Two forces are applied to a car in an effort to move it, as shown in the figure below. (Let F1 = 415 N and F2 = 375 N. Assume up and to the right are in the positive directions.)(a) What is the resultant vector of these two forces? magnitude _______ direction _______ to the right of the forward direction (b) If the car has a mass of 3,000 kg, what acceleration does it have? Ignore friction. _______ m/s?
Two forces are applied to a car in an effort to move it, as shown in...

Two forces are applied to a car in an effort to move it, as shown in the figure below. (Let f1= 400n and f2= 367n. Assume up and to the right are in the positive directions. What is the resultant vector of these two forces? Magnitude= Direction= (To the right of the forward direction) If the car has a mass of 3,000 kg, what acceleration does it have? Ignore friction.
Two forces are applied to a car in an effort to move it,

Two forces are applied to a car in an effort to move it, as shown in the figure below. (Let F1 = 415 N and F2 = 375 N. Assume up and to the right are in the positive directions.) (a) What is the resultant vector of these two forces? (b) If the car has a mass of 3,000 kg, what acceleration does it have?

2/3 points Previous Answers SERCP9 4.P.012. Two forces are applied to a car in an effort...

2/3 points Previous Answers SERCP9 4.P.012. Two forces are applied to a car in an effort to move it, as shown in the following figure, where F, 443 Nand, - 363 N. (Assume up and to the right as positive directions.) (a) What is the resultant of these two forces? magnitude 757 886 N direction 2 X to the right of the forward direction (1) if the car has a mass of 3,000 kg, what acceleration does it have? Ignore...
Two forces are applied to a car in an effort to move it, as shown in the following figure, where F1=439 N and F2 = 399 N

Two forces are applied to a car in an effort to move it, as shown in the following figure, where F1=439 N and F2 = 399 N. (Assume up and to the right as positive directions.) What is the sum of these two forces acting on the car? magnitude _______ direction _______ ° to the right of the forward direction
1. Two forces are applied to a car in an effort to move it, as shown...

1. Two forces are applied to a car in an effort to move it, as shown in the Figure below. (a) What is the resultant magnitude and direction of these two forces? (h) If the car has a mass of 3500 kg. what magnitude acceleration does it have? Ignore friction 10 450 M 400 N 2. A 40.0 kg wagon is towed up a hill inclined at 17.5° with respect to the horizontal. The tow rope is parallel to the...

A 1030 kg car is pulling a 290 kg trailer. Together the car and trailer move...

A 1030 kg car is pulling a 290 kg trailer. Together the car and trailer move forward with an acceleration of 2.13 m/s2. Ignore any frictional force of air drag on the car and all frictional forces on the trailer. (a) Determine the net force on the car. Magnitude: Direction: Forward/Backward b.)Determine the net force on the trailer: Magnitude Direction: Forward/Backward c.) Determine the force exerted by the trailer on the car. Magnitude: Direction: Forward/Backward d.) Determine the resultant force...
three forces act on a bracket as shown two forces acting on a bracket 7. Three...

three forces act on a bracket as shown two forces acting on a bracket 7. Three forces act on the bracket as shown. The resultant of these vectors acts along the u axis with a magnitude of 600 N. Determine the magnitude and direction of F1. F2 650 N Fi 45° F3 500 N 2. Two forces are acting on the bracket. The magnitude and direction of the vector F is 450 N and 60°, respectively. Find the magnitude of...
A 630 kg car pulling a 500 kg trailer accelerates forward at a rate of 2.17...

A 630 kg car pulling a 500 kg trailer accelerates forward at a rate of 2.17 m/s2. Assume frictional forces on the trailer are negligible. Ignore air drag. (a) Calculate the net force (in N) on the car. magnitude N direction ---Select--- forward backward (b) Calculate the net force (in N) on the trailer. magnitude N direction ---Select--- forward backward (c) What is the force (in N) exerted by the trailer on the car? magnitude N direction ---Select--- forward backward...

Nord - N and friction ineligible in the diagram below, the mass of the car Tom...

Nord - N and friction ineligible in the diagram below, the mass of the car Tom enlists the help of his friend ohun to move his car. They apply forces to the c as shown in the d ram. Herer, 3500 kg, 0, - 25 and - 12. (Assume the car ces the positive x-axis belore the forces are oplied.) (a) Find the resultant force in N) exerted on the car magnitude direction (counterclockwise from the axis) (b) What is...
