(b)u=V0 v=0(c)V0 6.6 For the flow defined by the stream function b Voy: (a) Plot the...

Question

Question

(b)u=V0 v=0(c)V0

science physics

Answer 1

Answer #1

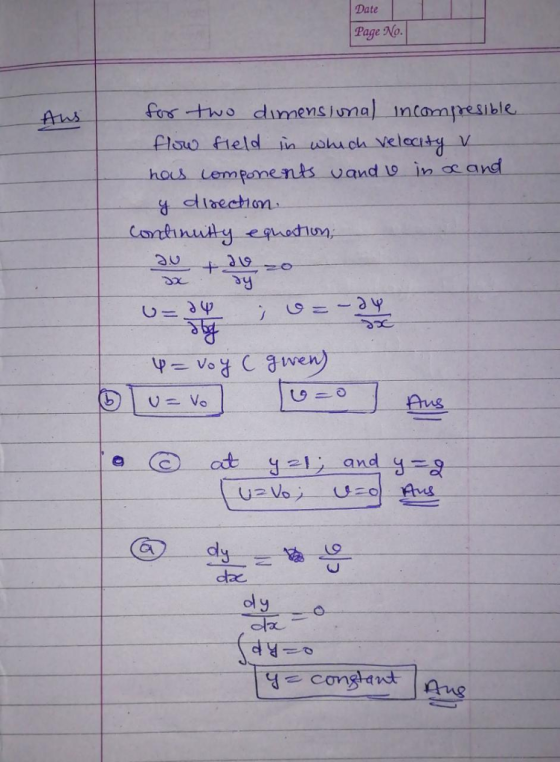

Date Page No. Flow fteld in ssuch Veloc ciaechn ctac ang

Answer 2

Similar Homework Help Questions

6.8 A certain flow field is described by the stream function -xy. (a) Sketch the flow...

6.8 A certain flow field is described by the stream function -xy. (a) Sketch the flow field. (b) Find the z and y velocity components at (0,0), [1,1], [oo, 0], and [4, 1]. (c) Find the volume flow rate per unit width lowing between the streamlines passing throu points [0, 0] and [1, 1], and points [1,21 and (5,3.
1) The velocity components in a 2-D incompressible flow are expressed as; u =(y/3 + 2x...

1) The velocity components in a 2-D incompressible flow are expressed as; u =(y/3 + 2x - x’y) m/s and v = (xy? - 2y - x®/3) m/s a) Determine the velocity and acceleration at point P (1, 3). (1 point) b) Is the flow physically possible? (Proof needed) (1 point) c) Obtain an expression for the stream function. () (1 point) d) What is the discharge between the streamlines passing through (1, 3) and (2, 3). (1 point) e)...
The Velocity field of a flow is given by V=4xy^2i + 4x^2yj. a) calculate the stream...

The Velocity field of a flow is given by V=4xy^2i + 4x^2yj. a) calculate the stream function and the velocity potential b) find the equation for the stream line passing through point x=1, y=1. plot this function accurately c) find the equation for the equipotential line passing through point x=1, y=1. plot this function accurately on the same graph as part b.

6. An Eulerian flow field is characterized by the stream function in Cartesian coordinates below: y...

6. An Eulerian flow field is characterized by the stream function in Cartesian coordinates below: y = vzt where a is a positive constant. • Sketch the streamlines for the given flow field in the xy-plane at a given time, t. Be sure to specify the direction of the streamlines in your plot. Determine if the fluid in the flow field is incompressible. Determine if the flow field is irrotational. If so, find the corresponding velocity potential and sketch a...
A two dimensional incompressible flow is given by the velocity field V = 3yi + 2xj,...

A two dimensional incompressible flow is given by the velocity field V = 3yi + 2xj, in arbitrary units. Does this flow satisfy continuity? If so, find the stream function ψ(x,y) and plot a few streamlines, with arrows.
Consider the flow field represented by the velocity potential φ = Ax+Bx2−By2, where A = 1...

Consider the flow field represented by the velocity potential φ = Ax+Bx2−By2, where A = 1 m/s, B = 1 s−1, and the coordinates are measured in meters. Obtain expressions forthe velocity field and the stream function. Using water as the working fluid, calculate the pressure difference between the origin and the point (x,y) = (1,2). What is the volume flow rate (per unit depth) between streamlines passing through these two points?

Advanced Fluid Mechanics Determine the streamfunction and velocity potential for uniform flow of strength U over a p...

Advanced Fluid Mechanics Determine the streamfunction and velocity potential for uniform flow of strength U over a point source and sink of equal strength, m, located on the x-axis at +/-b (the source is at-b with the sink at +b, where b is not small). Write expressions for the u and v velocity components, and draw streamlines of the flow. Determine the location(s) of any and all stagnation points. Determine the streamfunction and velocity potential for uniform flow of strength...
Consider stagnation point flow for which the Cartesian velocity components are given by u = Ax...

Consider stagnation point flow for which the Cartesian velocity components are given by u = Ax and v = -Ay a. Determine the stream function y b. Determine the velocity potential
Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given...

Q1. (a) The velocity components of a certain two-dimensional flow field are claimed to be given by u =-Cy and v = Cx , where is a constant. (i) Does this velocity distribution satisfy continuity? If yes, what is the stream function y? (8 marks) (ii) Analyse whether the flow is rotational or irrotational. What is the velocity potential o ? (4 marks) (iii) Sketch several y and © lines (if exist) of the flow field. Briefly explain how you...

2) A flow field has velocity field given by: u= x2 - y2, v= -2xy 1....

2) A flow field has velocity field given by: u= x2 - y2, v= -2xy 1. Prove that the flow is irrotational 2. Determine the stream function, 3. Find the potential function, 4. Create a plot of the flow net diagram
