The charge of 1nC is placed at the center of small cube of side 1nm. A)...

Question

Question

The charge of 1nC is placed at the center of small cube of side 1nm.

A) Find the flux through each of the walls for the cube?

B)The same charge (from part A) is moved to the corner of the cube. What is the electric field flus through each of the walls

Please write as clearly as possible, thanks

science physics

Answer 1

Answer #1

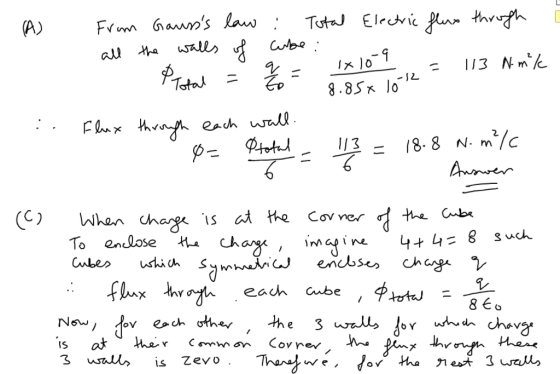

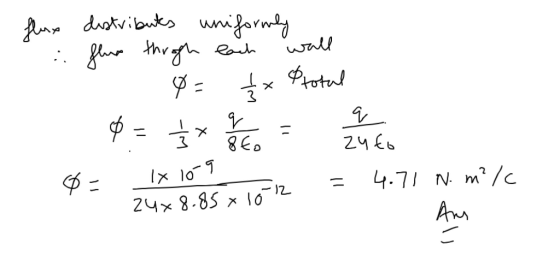

8.8 N- mC (C) Whan chag is eah ube 3 wall is Zevo dNXv.b.k> www2-ㄚ ^ya mv

Answer 2
