Question

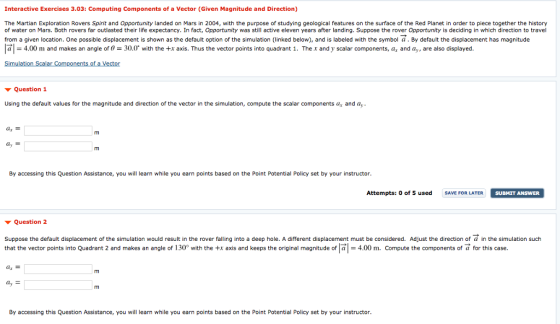

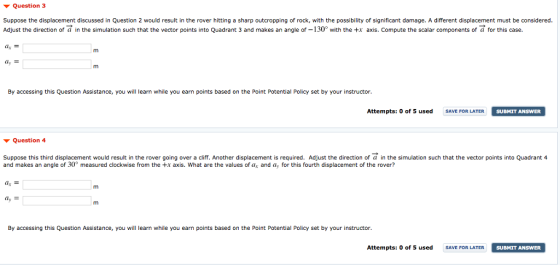

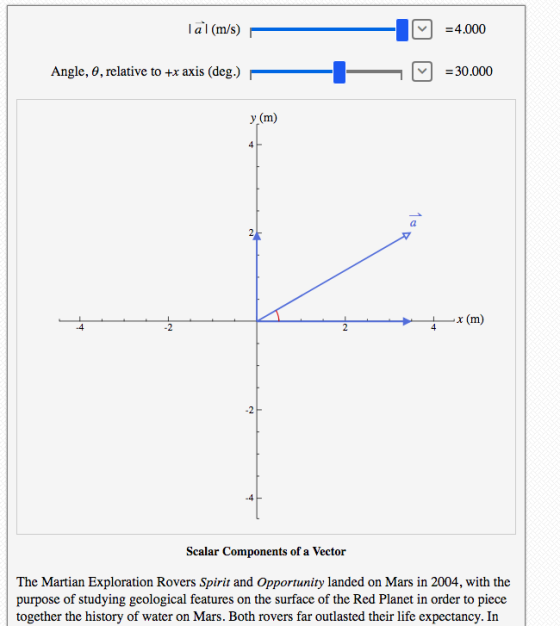

Interactive Exercises 3.03: Computing Components of a Vector (Given Magnitude and Direction) The Martian Exploration Rovers Spirit and Opportunity landed on Mars in 2004, with the purpose of studying geological features on the surface of the Red Planet in order to piece together the history of water on Mars. Both rovers far outlasted their life expectancy. In fact, Opportunity was still active eleven years after landing. Suppose the rover Opportunity is deciding in which direction to travel from a given location. One possible displacement is shown as the default option of the simulation (linked below), and is labeled with the symbol a. By default the displacement has magnitude 금 = 4.0 m and makes an angle of θ 30.0° with the +x axis. Thus the vector points into quadrant 1. The x and y scalar components, ax and ay, are also displayed Question 1 Using the default values for the magnitude and direction of the vector in the simulation, compute the scalar components ax and a ar = By accessing this Question Assistance, you will learn while you earn points based on the Point Potential Policy set by your instructor. Attempts: 0 of 5 used SAVE FOR LATER SUBMIT ANSWER ▼ Question 2 Suppose the default displacement of the simulation would result in the rover falling into a deep hole. A different displacement must be considered. Adjust the direction of a in the simulation such that the vector points into Quadrant 2 and makes an angle of 130 with the +x axis and keeps the original magnitude of a -4.00 m. Compute the components of a for this case. ay By accessing this Question Assistance, you will learn while you earn points based on the Point Potential Policy set by your instructor

Answer 1

please rate it up thanks :)
