Homework Answers
Part 2. The formula of the diamond is C. No. of atoms per unit cell (Z) = 8, a variation of the face-centered cubic lattice.
Part 4. The coordination number of each carbon atom is 4 in the diamond.
Part 6. Diamond is organized in a giant lattice structure with strong covalent bonds between carbon atoms. Each carbon atom forms 4 bonds with adjacent carbon atoms.
Part 8. 109.5o(Exactly 109o48')
Part 9. The hybridization of carbon-atoms in the diamond is sp3.
Part 10. The atomic packing factor (APF) of diamond = 0.34
Add Answer to:

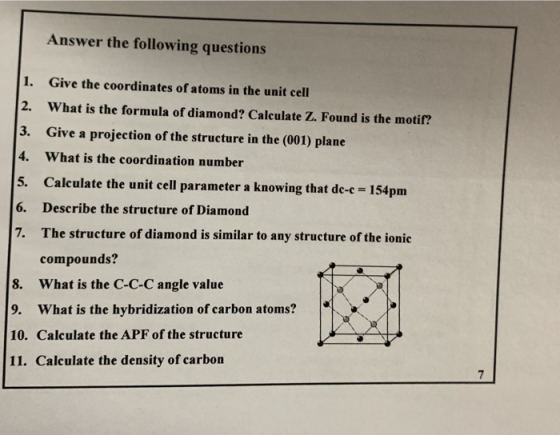

Answer the following questions 1. Give the coordinates of atoms in the unit cell 2. What...
Answer the following questions Carbone graphite crystallizes in the hexagonal system with the unit cell parameters:...
Answer the following questions Carbone graphite crystallizes in the hexagonal system with the unit cell parameters: a=245pm, c 670pm. 1. Draw the unit cell. How many carbon atoms per unit cell. Specify the motif. 2. Give the coordinates of all atoms in the unit cell Give a projection of the structure in the (001) plane. 3. What is the coordination number of carbon atoms? 4. 5. Specify the hybridization of carbon. 6. Give the interatomic distances de-c? 7. Calculate the...
1. Sketch the unit cell and calculate the density of BeO in gm/cm'. It has the...
1. Sketch the unit cell and calculate the density of BeO in gm/cm'. It has the zinc blende structure. What is the Coordination Number for the Beations What is the Coordination Number for the 02 ions 2. Sketch the unit cell and calculate the density of Si in gm/cm°. It has the diamond cubic structure What is the Coordination Number for the Si atoms?
c) Below is shown the cubic perovskite structure (ABX; -CaTiOj): Determine the coordinates of all atoms...
c) Below is shown the cubic perovskite structure (ABX; -CaTiOj): Determine the coordinates of all atoms in the unit cell and verify the composition ABX3. Draw the structure in the projection presentation. What are the coordination numbers and coordination polyhedra of Ca and Ti?
Study the diamond structure and a) give the number of atoms in the conventional cubic unit...
Study the diamond structure and a) give the number of atoms in the conventional cubic unit cell. b) give the number of atoms in the primitive unit cell. c) give the length in Ångström of a primitive translation vector. d) show that the angle between the tetrahedral bonds in diamond is 109,47°.
.4 Draw the bcc unit cell of tungsten metal and add a second neighboring unit cell. What is the c...
.4 Draw the bcc unit cell of tungsten metal and add a second neighboring unit cell. What is the coordination number of a site in the face of the original unit cell? What would be the stoichiometry of a compound in which all these sites were filled with carbon? 3.5 Metallic sodium adopts a bce structure with density of 970 kg/m'. What is the length of the edge of the unit cell? 3.6 An alloy of copper and gold has...
Can someone help with this? [8 points] 8 a) On the unit cell drawn below, sketch...
Can someone help with this?
[8 points] 8 a) On the unit cell drawn below, sketch the location of atoms for a BCC crystal. Be sure to include those that are hidden behind the front faces. b) Derive the cubic dimension a as a function of the atomic radius, R. c) What is the planar density of the (001) plane for a BCC crystal structure (in terms of R)? d) What is the linear density in the [010] direction on...
1. Calculate the density of the magnesium unit cell. HCP has 6 atoms per unit cell...
1. Calculate the density of the magnesium unit cell. HCP has 6 atoms per unit cell for the full HCP structure. The primitive form of the HCP has 2 atoms/unit cell. At. Wt. 24.305g/mole, a 3.29A, c 5.21 A. 2. Calculate the density of the FCC nickel lattice with an interstitial hydrogen in the centered position of the unit cell. You may assume that there is no lattice dilation due to the presence of the hydrogen atom. a 3.524A, At.Wt....
16. Calculate the number of atoms per unit cell, coordination number, and atomic packing factor for...
16. Calculate the number of atoms per unit cell, coordination number, and atomic packing factor for an HCP cell. 17. Assuming ideal spherical atoms calculate the c/a ratio of a HCP unit cell? 18. Magnesium is HCP crystal structure, what is the volume of the Mg unit cell? 19. What is the value of c, for magnesium? (Hint: Volume-basal area x height.) 20. What is the value of a, for magnesium? (Hint: Volume basal area x height)
NaCl has a rock salt crystal structure with a unit cell edge length of 0.56 nm....
NaCl has a rock salt crystal structure with a unit cell edge length of 0.56 nm. The atomic weights of the Na and Cl are 23 and 35.5 g/mol, respectively, and the Avogadro's number is 6.022 x 10“ formula units/mol. (a) Draw a unit cell to show the crystal structure of the NaCl. (b) What is the coordination number of the atoms in this structure? (c) How many Na atoms and Cl atoms in one unit-cell of such a structure?...
2. What is the minimum number or atoms that could be contained in the unit cell...
2. What is the minimum number or atoms that could be contained in the unit cell of an element with a body-centered cubic lattice? 3. What is the coordination number for a simple cubic unit cell?
Answer the following questions Carbone graphite crystallizes in the hexagonal system with the unit cell parameters: a=245pm, c 670pm. 1. Draw the unit cell. How many carbon atoms per unit cell. Specify the motif. 2. Give the coordinates of all atoms in the unit cell Give a projection of the structure in the (001) plane. 3. What is the coordination number of carbon atoms? 4. 5. Specify the hybridization of carbon. 6. Give the interatomic distances de-c? 7. Calculate the...
1. Sketch the unit cell and calculate the density of BeO in gm/cm'. It has the zinc blende structure. What is the Coordination Number for the Beations What is the Coordination Number for the 02 ions 2. Sketch the unit cell and calculate the density of Si in gm/cm°. It has the diamond cubic structure What is the Coordination Number for the Si atoms?
c) Below is shown the cubic perovskite structure (ABX; -CaTiOj): Determine the coordinates of all atoms in the unit cell and verify the composition ABX3. Draw the structure in the projection presentation. What are the coordination numbers and coordination polyhedra of Ca and Ti?
.4 Draw the bcc unit cell of tungsten metal and add a second neighboring unit cell. What is the coordination number of a site in the face of the original unit cell? What would be the stoichiometry of a compound in which all these sites were filled with carbon? 3.5 Metallic sodium adopts a bce structure with density of 970 kg/m'. What is the length of the edge of the unit cell? 3.6 An alloy of copper and gold has...
Can someone help with this?
[8 points] 8 a) On the unit cell drawn below, sketch the location of atoms for a BCC crystal. Be sure to include those that are hidden behind the front faces. b) Derive the cubic dimension a as a function of the atomic radius, R. c) What is the planar density of the (001) plane for a BCC crystal structure (in terms of R)? d) What is the linear density in the [010] direction on...
1. Calculate the density of the magnesium unit cell. HCP has 6 atoms per unit cell for the full HCP structure. The primitive form of the HCP has 2 atoms/unit cell. At. Wt. 24.305g/mole, a 3.29A, c 5.21 A. 2. Calculate the density of the FCC nickel lattice with an interstitial hydrogen in the centered position of the unit cell. You may assume that there is no lattice dilation due to the presence of the hydrogen atom. a 3.524A, At.Wt....
16. Calculate the number of atoms per unit cell, coordination number, and atomic packing factor for an HCP cell. 17. Assuming ideal spherical atoms calculate the c/a ratio of a HCP unit cell? 18. Magnesium is HCP crystal structure, what is the volume of the Mg unit cell? 19. What is the value of c, for magnesium? (Hint: Volume-basal area x height.) 20. What is the value of a, for magnesium? (Hint: Volume basal area x height)
NaCl has a rock salt crystal structure with a unit cell edge length of 0.56 nm. The atomic weights of the Na and Cl are 23 and 35.5 g/mol, respectively, and the Avogadro's number is 6.022 x 10“ formula units/mol. (a) Draw a unit cell to show the crystal structure of the NaCl. (b) What is the coordination number of the atoms in this structure? (c) How many Na atoms and Cl atoms in one unit-cell of such a structure?...
2. What is the minimum number or atoms that could be contained in the unit cell of an element with a body-centered cubic lattice? 3. What is the coordination number for a simple cubic unit cell?
