Two circuits are connected to identical sources of emf, as shown below. Across which resistor is the portential drop the greatest?

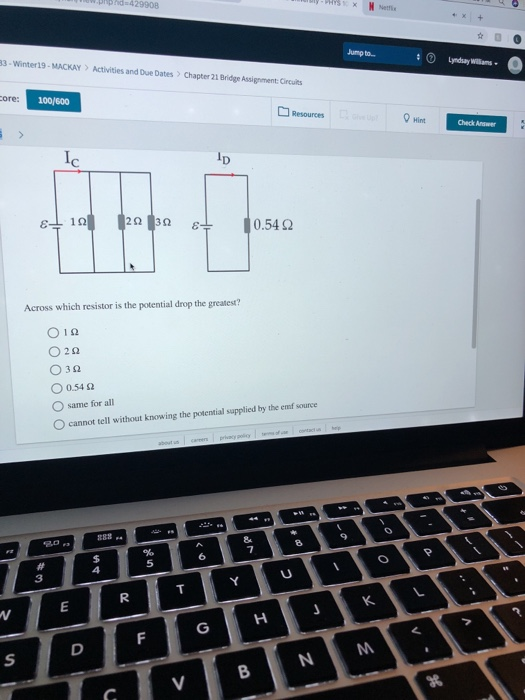

pphd-429908 Jump to... 13- Winter19-MACKAYActivities and Due Dates Chapter 21 Bridge Assignment: Circuits Lyndsay Williams ore: Resources Check Answer 054 Ω Across which resistor is the potential drop the greatest? 01Ω 0054 Ω O same for all O cannot tell without knowing the potential supplied by the enf source 5 3
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Solution)

It is same for all as all resistors are connected in parallel with the emf and in parallel combination potential is same across each loop. Therefore, voltage across each resistor is same.

========

Good luck!:)

0 0
Add a comment
Know the answer?
Add Answer to:
Two circuits are connected to identical sources of emf, as shown below. Across which resistor is...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Five identical resistors are connected to a source of emf, as shown in the figure. The...

    Five identical resistors are connected to a source of emf, as shown in the figure. The source has negligible resistance Which of the following statements is false ? rks People Window Help r Identical Resistors Are CoX w19phys1010,133ch1gp834 令, 94%-Tue 10:26 pt Lakehead University-PHYS 1: N Netfix x Jump to... 33-Winter19-MACKAY>Activities and Due Dates Chapter 21 Bridge Assignment: Circuits core: Resources Hint Check Answer Which of the following statements is false? 0 The sum of the potential drops across resistors...

  • Five identical resistors are connected to a source of emf, as shown in the figure. The...

    Five identical resistors are connected to a source of emf, as shown in the figure. The source has negligible resistance. How does the current ic through resistor C compare with the current ie through resistor E? Explain your reasoning Four identical Resistors Are Co W1sPhys1010,133 ch19p8Lakehead University PHYSN Nt php?id-429908 Jump t0.. 10/1133-Winter19-MACKAY> Activities and Due Dates Chapter 21 Bridge Assignment: Circuits ent Score: 0/600 Hint Check Answes 1 of 6 Five identical resistors are connected to a source of...

  • A circuit consists of two resistors connected in series with a power supply, as shown in...

    A circuit consists of two resistors connected in series with a power supply, as shown in the figure. The resistance of ?1 is less than the resistance of ?2. A series circuit with two resistors R subscript 1 and R subscript 2. R subscript 1 is connected to the positive terminal of the power supply, and is the first resistor in the circuit. Which resistor has the greater current flowing through it? ?2 ?1 The current through each resistor is...
