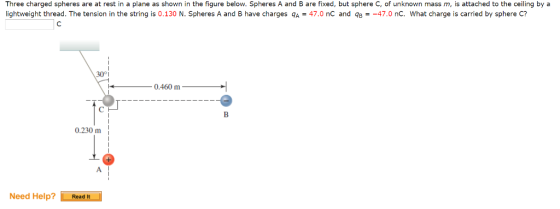

Three charged spheres are at rest in a plane as shown in the figure below. Spheres A and B are fixed, but sphere C, of unknown mass m, is attached to the ceiling by a lightweight thread. The tension in the string is 0.130 N. Spheres A and B have charges
qA = 47.0 nC
and
qB = −47.0 nC.
What charge is carried by sphere C?

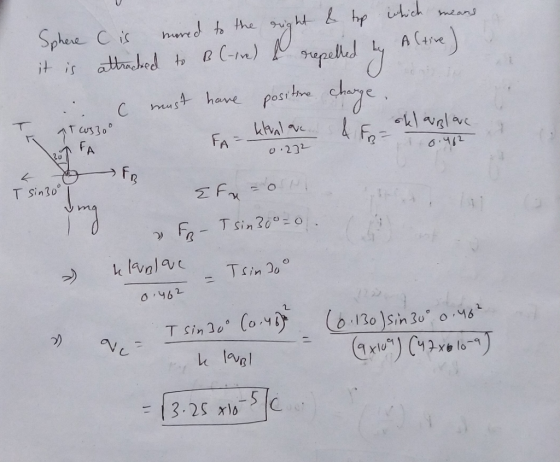

Homework Answers
