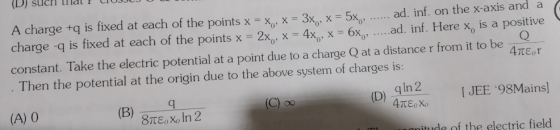

Plz ignore (such that) written on top (D) sucrH lilal F CTO A charge +q is...

Question

Question

Plz ignore (such that) written on top

science physics

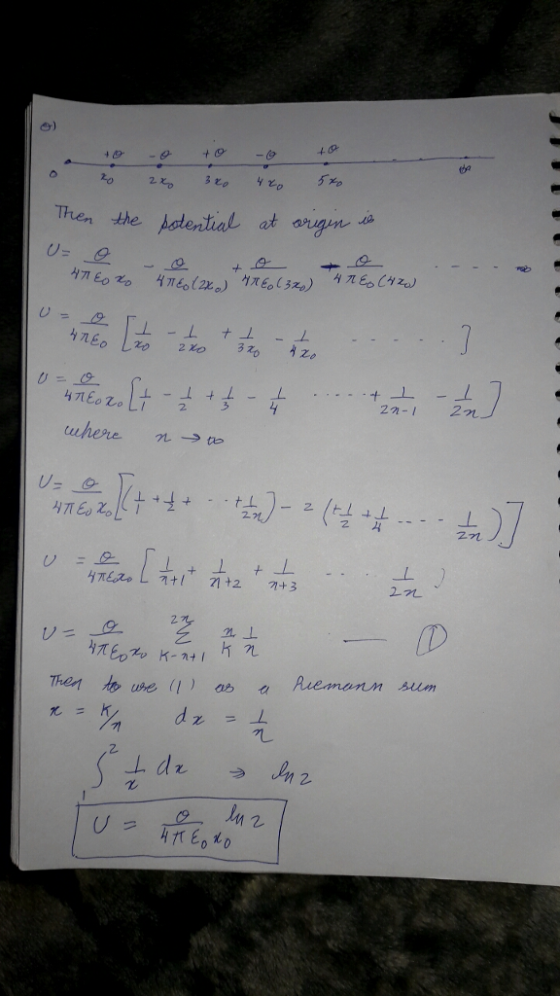

Answer 1

Answer #1

Answer 2
