1 INFINITE WIRE Consider an infinite line of charge with charge per unit length λ. Calculate...
1.1 1.2 1 INFINITE WIRE Consider an infinite line of charge with charge per unit length...
1.1 1.2

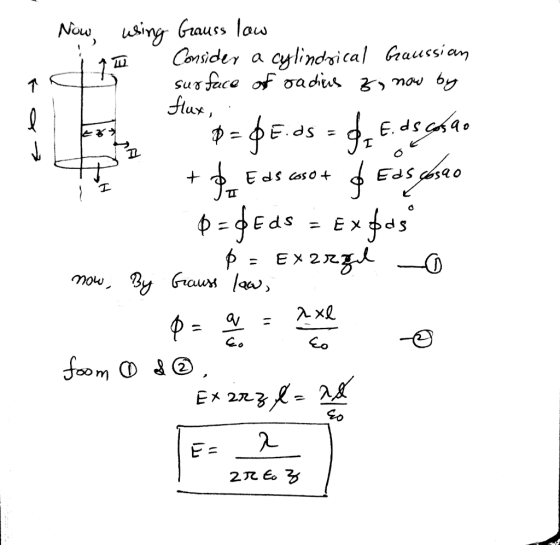

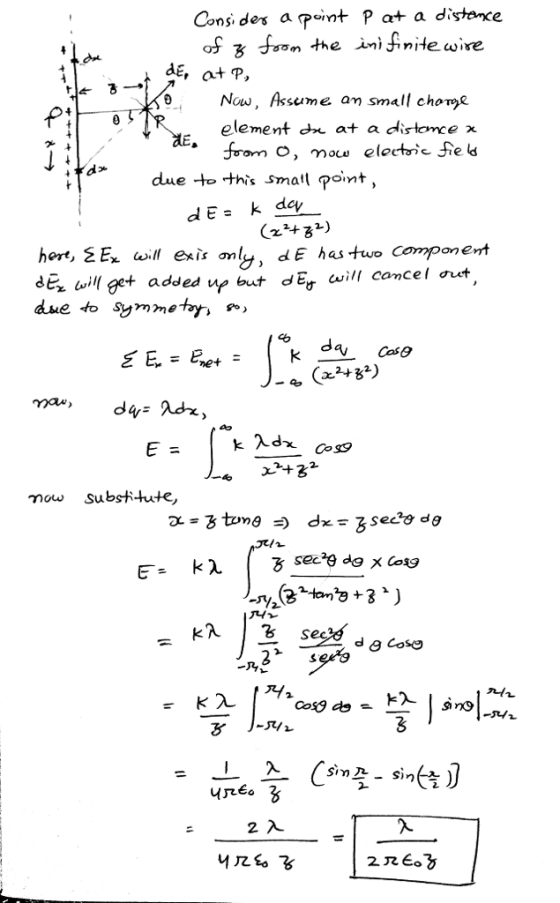

1 INFINITE WIRE Consider an infinite line of charge with charge per unit length λ. Calculate the electric field a distance z away from the wire. Namely z is the distance to the closest point on the wire. We will calculate this electric field in two different ways. 1.1 20 POINTS Calculate it using Coulomb's Law. 1.2 15 POINTS Calculate it using Gauss' Law.
INFINITE WIRE Consider an infinite line of charge with charge per unit length A. Calculate the...
INFINITE WIRE Consider an infinite line of charge with charge per unit length A. Calculate the electric field a distance z away from the wire. Namely z is the distance to the closest point on the wire. We will calculate this electric field in two different ways. 1.1 20 POINTS Calculate it using Coulomb's Law. 1.2 15 POINTS Calculate it using Gauss' Law.
Qa 2 A semi-infinite line of charge of charge per unit length 1 is placed on...
Qa 2 A semi-infinite line of charge of charge per unit length 1 is placed on the positive î-axis. A semicircular arc of charge of radius a is joined to it at the origin, with its centre on the ġ-axis, at a distance a away, as shown. The total charge on the semicircle is Q. a. [5 points] Determine the electric field at a point i = yỹ (y > 0) due to the straight line. b. [3 points] Show...
Question: Consider one infinitely long straight wire with a uniform charge density of 1C/m. Sketch the...
Question: Consider one infinitely long straight wire with a uniform charge density of 1C/m. Sketch the electric field around the wire Question: In the above problem, calculate the magnitude of the electric field at a distance R from the wire. How is it different (if any)from the field of a point charge? Question: Consider two infinite wires 1 m apart with a uniform charge density per unit length 1 C/m. Calculate the force per unit length between the wires. To...
3. Consider a "line of charge", where the positive charge per unit length is 1 (in...
3. Consider a "line of charge", where the positive charge per unit length is 1 (in C/m) and the line is "infinitely long". a) Draw the line of charge horizontally on the page. Attempt to draw the E field lines around the line of charge. b) Draw a point on the page that is acting as the cross-section of the line of charge exiting the page. Attempt to draw the electric field lines around the line of charge. c) Choose...
A wire containing a charge of λ Coulombs per unit length is embedded along the axis...
A wire containing a charge of λ Coulombs per unit length is embedded along the axis of a cylinder of dielectric material. There is no free charge inside the dielectric. The composition of the dielectric is non-uniform, such that its permittivity is a function of the distance from the central axis, i.e. ε = ε(r). (a) Find the displacement field, D as a function of distance from the central axis of the wire, r. (b) if the electric field strength,...
An infinite insulating hollow cylinder of radius ri and uniform charge per unit length, λ is...
An infinite insulating hollow cylinder of radius ri and uniform charge per unit length, λ is oriented so that its long central axis is along the z-axis. A fixed point charge,-Q, is located at the position (x, y, z) = (2n, 0,0). Answer the following in terms of the constants given: (a) what is the magnitude of the total electric field at the location (x, y, z) = (3r1, 0,0)? (b) Assuming that the reference potential is set to be...
6. Consider a line charge with uniform charge density λ lying on the x-axis from z...
6. Consider a line charge with uniform charge density λ lying on the x-axis from z =-L to 0. a) Determine the electric field a distance y above the right end of the line charge (point P in the figure) and a distance r to the right of the line charge (point P2 in the figure). P2 b) In lecture you saw the electric field of an infinite line charge. Now we will consider a "semi-infinite" line charge; that is,...
A thin rod, with charge per unit length λ has length L. What is the electric...
A thin rod, with charge per unit length λ has length L. What is the electric field, in unit vector notation, a distance d away from one of its ends, perpendicular to the axis of the rod? 8.
The charge per unit length on the thin rod of length L shown below is λ...
The charge per unit length on the thin rod of length L shown below is λ what is the electric field at the point P, distance a away from the right end of the rod? 1. Define a segment of charge: 2. Express the charge of one segment: 3. Express the E field of that one segment. 4. Integral each of the components of that field:
1.1 1.2
1 INFINITE WIRE Consider an infinite line of charge with charge per unit length λ. Calculate the electric field a distance z away from the wire. Namely z is the distance to the closest point on the wire. We will calculate this electric field in two different ways. 1.1 20 POINTS Calculate it using Coulomb's Law. 1.2 15 POINTS Calculate it using Gauss' Law.
INFINITE WIRE Consider an infinite line of charge with charge per unit length A. Calculate the electric field a distance z away from the wire. Namely z is the distance to the closest point on the wire. We will calculate this electric field in two different ways. 1.1 20 POINTS Calculate it using Coulomb's Law. 1.2 15 POINTS Calculate it using Gauss' Law.
Qa 2 A semi-infinite line of charge of charge per unit length 1 is placed on the positive î-axis. A semicircular arc of charge of radius a is joined to it at the origin, with its centre on the ġ-axis, at a distance a away, as shown. The total charge on the semicircle is Q. a. [5 points] Determine the electric field at a point i = yỹ (y > 0) due to the straight line. b. [3 points] Show...
3. Consider a "line of charge", where the positive charge per unit length is 1 (in C/m) and the line is "infinitely long". a) Draw the line of charge horizontally on the page. Attempt to draw the E field lines around the line of charge. b) Draw a point on the page that is acting as the cross-section of the line of charge exiting the page. Attempt to draw the electric field lines around the line of charge. c) Choose...
An infinite insulating hollow cylinder of radius ri and uniform charge per unit length, λ is oriented so that its long central axis is along the z-axis. A fixed point charge,-Q, is located at the position (x, y, z) = (2n, 0,0). Answer the following in terms of the constants given: (a) what is the magnitude of the total electric field at the location (x, y, z) = (3r1, 0,0)? (b) Assuming that the reference potential is set to be...
6. Consider a line charge with uniform charge density λ lying on the x-axis from z =-L to 0. a) Determine the electric field a distance y above the right end of the line charge (point P in the figure) and a distance r to the right of the line charge (point P2 in the figure). P2 b) In lecture you saw the electric field of an infinite line charge. Now we will consider a "semi-infinite" line charge; that is,...
A thin rod, with charge per unit length λ has length L. What is the electric field, in unit vector notation, a distance d away from one of its ends, perpendicular to the axis of the rod? 8.
The charge per unit length on the thin rod of length L shown below is λ what is the electric field at the point P, distance a away from the right end of the rod? 1. Define a segment of charge: 2. Express the charge of one segment: 3. Express the E field of that one segment. 4. Integral each of the components of that field:
