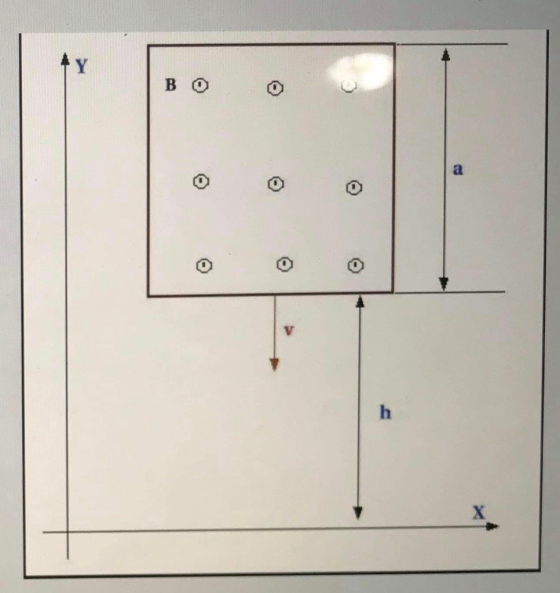

A square loop of length a and resistance R, is
dropped from a height of h. A magnetic field exists
everywhere, perpendicular to the loop area which varies with height
according to:
Given:
a=8.3 m, R=2.3, h=0.7m,
=6.9T,
D=5.9m
What is the current in the loop at the moment of impact with the group? Neglect the force the magnetic field exerts on the loop, give a positive answer in ampere, and use g=10m/s^2

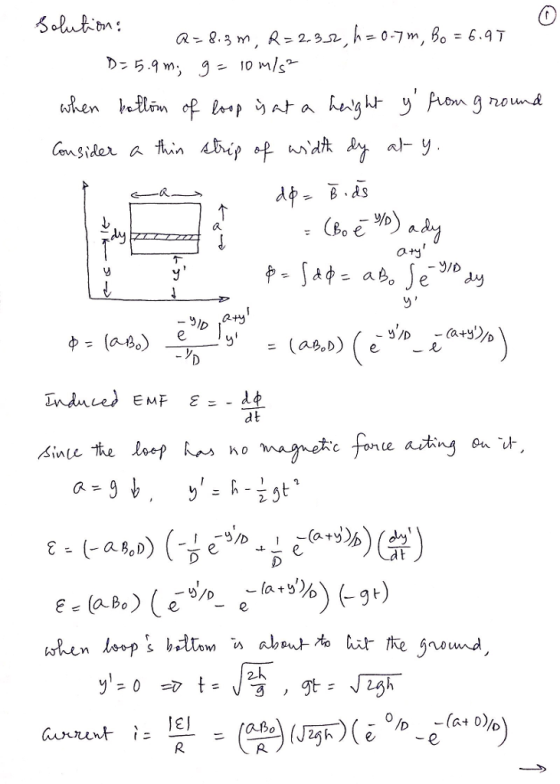

Homework Answers
