1) Three identical charges, each with q = 5μC, are moved from infinite separation to the...

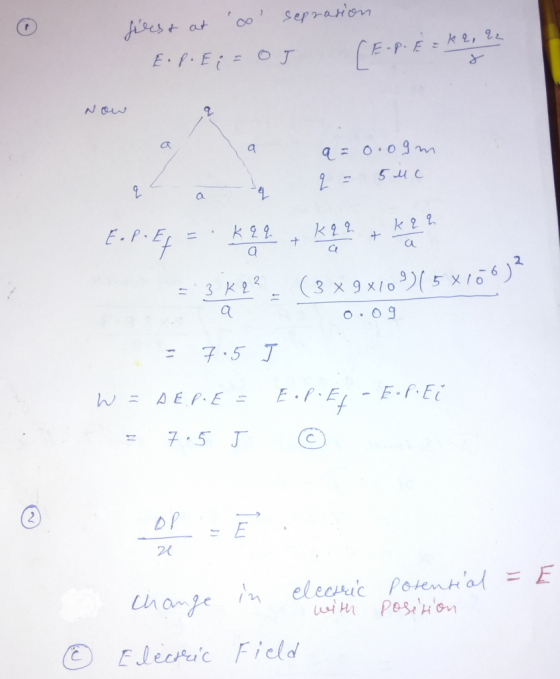

1) Three identical charges, each with q = 5μC, are moved from infinite separation to the corners of an equilateral triangle (each side is 0.09 m). How much work is required by an external agent to form this configuration? A) 2.1 J ). 3.9 J C) 7.5 J D) 7.0 J
2) Which of the following is related to the rate at
which electric potential changes with position?
A. Electric Force
B. Electric charge
C. Electric field
D. Electric potential energy
Homework Answers
