Please help to solve the following questions using the figure. Detailed explanations please!

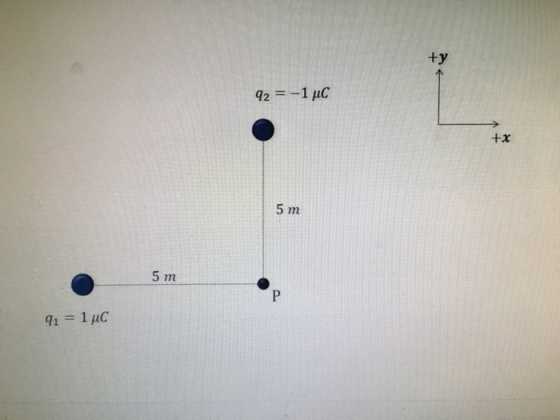

+y +x 5 m

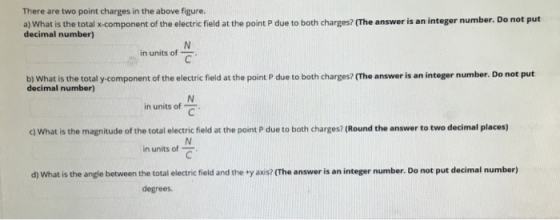

There are two point charges in the above figure a) What is the total x-component of the electric field at the point P due to both charges? (The answer is an integer number. Do not put decimal number) in units of b) What is the total y-component of the electric field at the point P due to both charges? (The answer is an integer number. Do not put decimal number) C in units of c) What is the magnitude of the total electric field at the point P due to both charges? (Round the answer to two decimal places) in units of d) What is the angle between the total electric field and the ty axis? (The answer is an integer number. Do not put decimal number) degrees
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

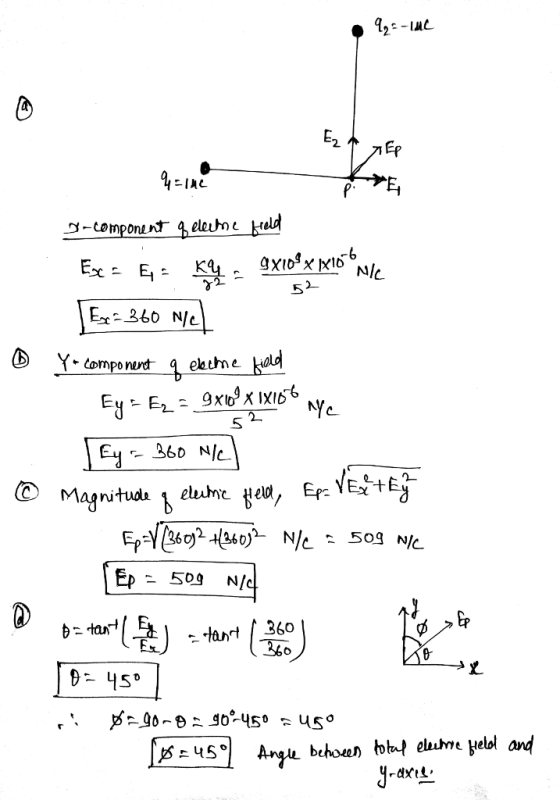

42-LuC 2. Fp E, Ex:360 N/c tanrt 360 360

0 0
