Question

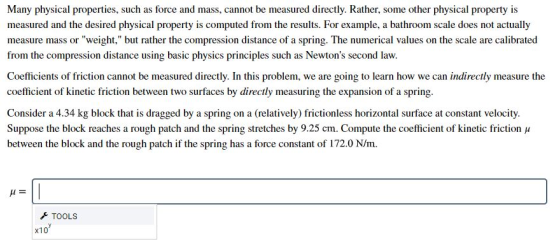

Many physical properties, such as force and mass, cannot be measured directly. Rather, some other physical property is measured and the desired physical property is computed from the results. For example, a bathroom scale does not actually measure mass or "weight," but rather the compression distance of a spring. The numerical values on the scale are calibrated from the compression distance using basic physics principles such as Newton's second law. Coefficients of friction cannot be measured directly. In this problem, we are going to learn how we can indirectly measure the coefficient of kinetic friction between two surfaces by directly measuring the expansion of a spring. Consider a 4.34 kg block that is dragged by a spring on a relatively) frictionless horizontal surface at constant velocity Suppose the block reaches a rough patch and the spring stretches by 9.25 cm. Compute the coefficient of kinetic friction between the block and the rough patch if the spring has a force constant of 172.0 N/m. TOOLS x10'

Answer 1

When the block reaches the rough patch, the frictional force causes the spring to stretch.

Use Hooke's Law

$F_{friction}=kx$

$\mu N=kx$

$\mu mg=kx$

$\mu =\frac{kx}{mg}$

$\mu =\frac{172N/m*0.0925m}{4.34kg*9.81m/s^{2}}$

$\mu =\frac{172*0.0925}{4.34*9.81}$

ANSWER: ${\color{Red} \mu =0.3737}$

==============================
