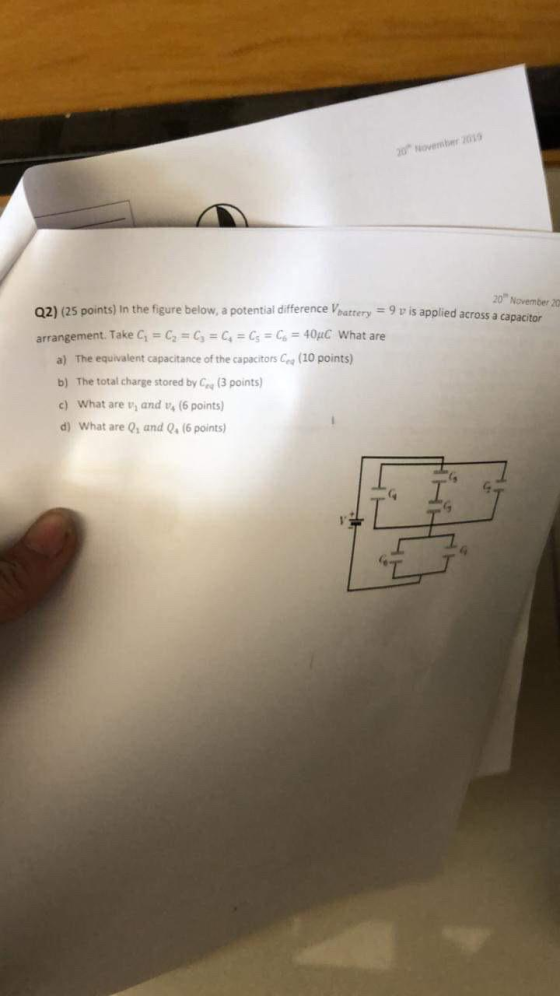

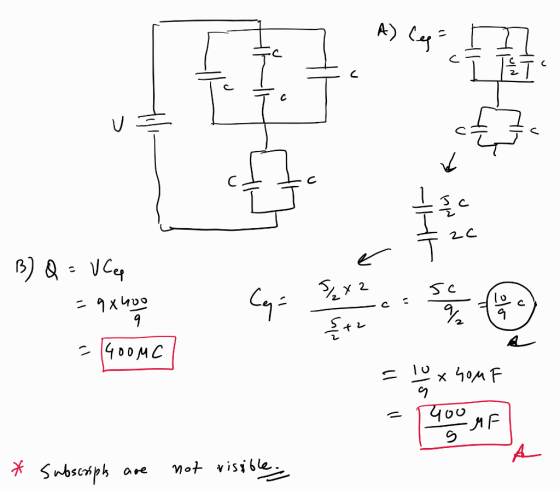

20 November 2013 20" November 20 02) (25 points) In the figure below, a potential difference...
20 of 22 > Four capacitors are arranged in the circuit shown in the figure. The...
20 of 22 > Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C 26.5 uF, C2 45.5 uF, C3 50.5 pF, and C4 40.5 uF, and the power supply is at voltage V 31.5 V C What is the equivalent capacitance of the circuit? C equivalent capacitance: 8.3 V What is the charge capacitor C2? on C. charge C2: 5.75 C on What is the potential difference across capacitor C3? about us...
For the capacitor circuit show below, the potential difference of 120 V is applied across points...
For the capacitor circuit show below, the potential difference of 120 V is applied across points A and B. Find (a) the equivalent capacitance of all the capacitors between points A and B and (b) the charge stored on the 4.00-muC capacitors.
3/9 points I Pravious Answers HRW8 25. P.036 My In the figure below, a potential difference...
3/9 points I Pravious Answers HRW8 25. P.036 My In the figure below, a potential difference v-200 v is applied across a capacitor arrangement with capacitances C1-11.01F C2-6 001F and C3-4.00 μF. Find the following values. Cs (a) the charge on capacitor 2 (b) the potential difference acrass capacitor 3 v V (c the stored anergy for capacitora (d) the charge on capacitor1 99.9 (e) the potential difference across capacitor 1 (f) the stored energy for capacor i (9) the...
Potential across a Capacitor
In Fig. 25-31 a20.0 V battery is connected across capacitors of capacitances C1 = C6 = 2.9 μF and C3 = C5 = 2.00C2 = 2.00C4 = 4.7 μF.Fig. 25-31http://i.imgur.com/IudoK.jpgWhat are(a) the equivalent capacitance Ceq of the capacitorsCeq = 3.18(b) the charge stored by Ceq?q = 63.6What are(c) V1 and (d) q1 of capacitor 1,V1 =q1 = (e) V2(f) q2 of capacitor 2,V2 = V q2 = (g) V3 and (h) q3 of capacitor 3,V3 =q3 =
2 Calculate the following quantities in the circuit below, assuming the switch is open. Switch С...
2 Calculate the following quantities in the circuit below, assuming the switch is open. Switch С 2-6 F a) Equivalent capacitance Ceq b) Charge stored in the capacitor C2. c) Potential difference in the capacitor C2. d) Potential energy stored in the capacitor C2 Now the switch is closed. Find the following quantities e) Equivalent capacitance Ceq. f) Charge stored in the capacitor C2. g) Potential difference in the capacitor C2 h) Potential energy stored in the capacitor C2
2 Calculate the following quantities in the circuit below, assuming the switch is open. Switch 8-12V...
2 Calculate the following quantities in the circuit below, assuming the switch is open. Switch 8-12V С 3-6 F a) Equivalent capacitance Ceq b) Charge stored in the capacitor C2 c) Potential difference in the capacitor C2. d) Potential energy stored in the capacitor C2 Now the switch is closed. Find the following quantities. e) Equivalent capacitance Ceq. f) Charge stored in the capacitor C2. g) Potential difference in the capacitor C2. h) Potential energy stored in the capacitor C2.
2 Calculate the following quantities in the circuit below, assuming the switch is open. Switch a)...
2 Calculate the following quantities in the circuit below, assuming the switch is open. Switch a) Equivalent capacitance Ceq b) Charge stored in the capacitor C2 c) Potential difference in the capacitor C2. d) Potential energy stored in the capacitor C2 Now the switch is closed. Find the following quantities. e) Equivalent capacitance Ceq f) Charge stored in the capacitor C g) Potential difference in the capacitor C2. b) Potential energy stored in the capacitor C2
In the figure a 27 V battery is connected across capacitors of capacitances C1 = C6...
In the figure a 27 V battery is connected across capacitors of
capacitances C1 = C6 = 5.0
μF and C3 = C5 =
1.5C2 = 1.5C4 = 6.0 μF.
What are (a) the equivalent capacitance
Ceq of the capacitors and (b)
the charge stored by Ceq? What are
(c) V1 and
(d) q1 of capacitor 1,
(e) V2 and
(f) q2 of capacitor 2, and
(g) V3 and
(h) q3 of capacitor 3?
C HHH
2. A student connects three capacitors G = 4.50 pF,C2 = 5.20 uF, C3 = 6.20...
2. A student connects three capacitors G = 4.50 pF,C2 = 5.20 uF, C3 = 6.20 uF to a 6.00 V battery. a. The three capacitors are connected in series across the battery. i. Find the equivalent capacitance of the circuit. ii. Calculate the total charge stored in the combination. b. The three capacitors are now connected in parallel. i. What is equivalent capacitance? ii. What is the energy stored by the combination of the capacitors? 3. A graph of...
In the figure a 23 V battery is connected across capacitors of capacitances C1 = C6 = 5.0 μF and C3 = C5=...
In the figure a 23 V battery is connected across
capacitors of
capacitances C1 = C6 =
5.0 μF
and C3 = C5=
2.0C2 = 2.0C4 = 5.0
μF. What are (a) the equivalent
capacitance Ceq of the capacitors
and (b) the charge stored
by Ceq? What
are (c) V1 and (d) q1 of
capacitor
1,(e) V2 and (f) q2 of
capacitor 2,
and (g) V3 and (h) q3 of
capacitor 3?
20 of 22 > Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C 26.5 uF, C2 45.5 uF, C3 50.5 pF, and C4 40.5 uF, and the power supply is at voltage V 31.5 V C What is the equivalent capacitance of the circuit? C equivalent capacitance: 8.3 V What is the charge capacitor C2? on C. charge C2: 5.75 C on What is the potential difference across capacitor C3? about us...
For the capacitor circuit show below, the potential difference of 120 V is applied across points A and B. Find (a) the equivalent capacitance of all the capacitors between points A and B and (b) the charge stored on the 4.00-muC capacitors.
3/9 points I Pravious Answers HRW8 25. P.036 My In the figure below, a potential difference v-200 v is applied across a capacitor arrangement with capacitances C1-11.01F C2-6 001F and C3-4.00 μF. Find the following values. Cs (a) the charge on capacitor 2 (b) the potential difference acrass capacitor 3 v V (c the stored anergy for capacitora (d) the charge on capacitor1 99.9 (e) the potential difference across capacitor 1 (f) the stored energy for capacor i (9) the...
2 Calculate the following quantities in the circuit below, assuming the switch is open. Switch С 2-6 F a) Equivalent capacitance Ceq b) Charge stored in the capacitor C2. c) Potential difference in the capacitor C2. d) Potential energy stored in the capacitor C2 Now the switch is closed. Find the following quantities e) Equivalent capacitance Ceq. f) Charge stored in the capacitor C2. g) Potential difference in the capacitor C2 h) Potential energy stored in the capacitor C2
2 Calculate the following quantities in the circuit below, assuming the switch is open. Switch 8-12V С 3-6 F a) Equivalent capacitance Ceq b) Charge stored in the capacitor C2 c) Potential difference in the capacitor C2. d) Potential energy stored in the capacitor C2 Now the switch is closed. Find the following quantities. e) Equivalent capacitance Ceq. f) Charge stored in the capacitor C2. g) Potential difference in the capacitor C2. h) Potential energy stored in the capacitor C2.
2 Calculate the following quantities in the circuit below, assuming the switch is open. Switch a) Equivalent capacitance Ceq b) Charge stored in the capacitor C2 c) Potential difference in the capacitor C2. d) Potential energy stored in the capacitor C2 Now the switch is closed. Find the following quantities. e) Equivalent capacitance Ceq f) Charge stored in the capacitor C g) Potential difference in the capacitor C2. b) Potential energy stored in the capacitor C2
In the figure a 27 V battery is connected across capacitors of
capacitances C1 = C6 = 5.0
μF and C3 = C5 =
1.5C2 = 1.5C4 = 6.0 μF.
What are (a) the equivalent capacitance
Ceq of the capacitors and (b)
the charge stored by Ceq? What are
(c) V1 and
(d) q1 of capacitor 1,
(e) V2 and
(f) q2 of capacitor 2, and
(g) V3 and
(h) q3 of capacitor 3?
C HHH
2. A student connects three capacitors G = 4.50 pF,C2 = 5.20 uF, C3 = 6.20 uF to a 6.00 V battery. a. The three capacitors are connected in series across the battery. i. Find the equivalent capacitance of the circuit. ii. Calculate the total charge stored in the combination. b. The three capacitors are now connected in parallel. i. What is equivalent capacitance? ii. What is the energy stored by the combination of the capacitors? 3. A graph of...
In the figure a 23 V battery is connected across
capacitors of
capacitances C1 = C6 =
5.0 μF
and C3 = C5=
2.0C2 = 2.0C4 = 5.0
μF. What are (a) the equivalent
capacitance Ceq of the capacitors
and (b) the charge stored
by Ceq? What
are (c) V1 and (d) q1 of
capacitor
1,(e) V2 and (f) q2 of
capacitor 2,
and (g) V3 and (h) q3 of
capacitor 3?
