Homework Answers
Answer :
Q2.

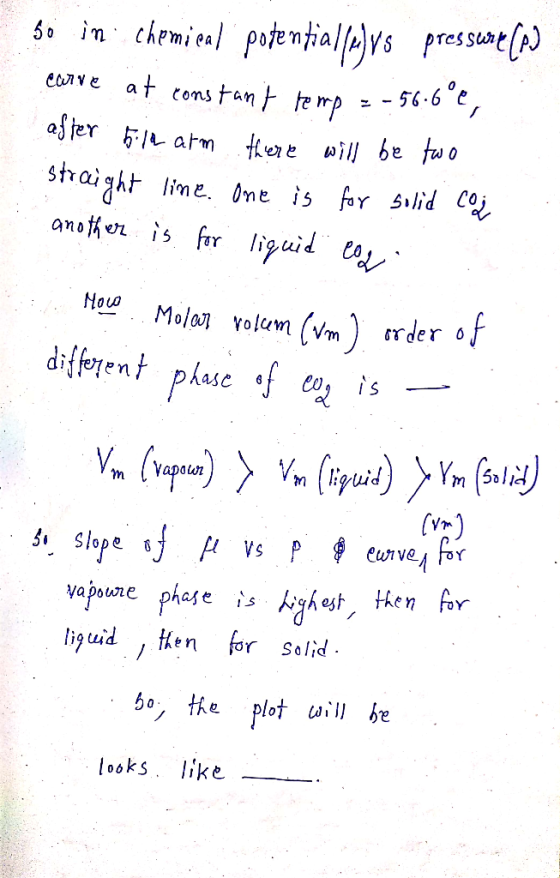

![chemieal pate ntia/la]vs pressuat (p) in at constan t terp56-6 e, as ter conve / Hhere will be fw o Straight lime. one is for](http://img.homeworklib.com/questions/4297c7c0-7595-11ea-90cd-df33836f567d.png?x-oss-process=image/resize,w_560)
(Answered)
Add Answer to:

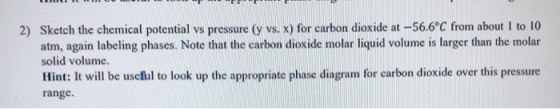

2) Sketch the chemical potential vs pressure (y vs. x) for carbon dioxide at -56.6°C from...
1) In class we considered the temperature dependence of chemical potential. Roughly sketch the chemical potential...
1) In class we considered the temperature dependence of chemical potential. Roughly sketch the chemical potential vs. pressure (y vs. x) for water at 100°C from about 1 Pa to 1 MPa. Label the appropriate regions with what phase they contain. What does the slope of these curves correspond to? Hint: It will be useful to look up the appropriate phase diagram for water over this pressure range.
46.2% Resources Give Up? Hint Consider the phase diagram for carbon dioxide. 73.0 In what phase...
46.2% Resources Give Up? Hint Consider the phase diagram for carbon dioxide. 73.0 In what phase is CO, at 4 atm and -10 °C? solid liquid O gas Pressure (atm) solid liquid 5.11 1.0 31.1 -78.5-564 Temperature (°C) Starting from the same point, 4 atm and -10 °C, what phase change would eventually result from an increase in pressure? freezing deposition melting condensation sublimation vaporization
5) Consider the phase diagram for carbon dioxide(10). Supercritical fluid Solid Liquid Pressure (atm) -78.5 -56.4...
5) Consider the phase diagram for carbon dioxide(10). Supercritical fluid Solid Liquid Pressure (atm) -78.5 -56.4 Temperature (°C)— a) What is the critical temperature for carbon dioxide? b) What is the critical pressure for carbon dioxide? c) What phase(s) is/are present at -10°C and 30 atm. d) What phase(s) is/are present at -60°C and 10 atm. - e) What phase(s) is/are present at-78.5°C and 1 atm. f) What phase(s) is/are present at-56.4°C and 5.11 atm. g) What is the normal...
5. Below you find a sketch of the p,T-phase diagram of H20, indicating preferred physical states...
5. Below you find a sketch of the p,T-phase diagram of H20, indicating preferred physical states of H20 at different temperatures and pressure. The regions labeled with In, XI, and III, stand for different forms of solid H20. For example, ice Ih is the standard ice (there are more than 12 different forms of solid H2O). Draw two diagrams for the chemical potentials as a function of temperature (from Ti to T2) of each of the phases (there are 5...
ChemActivity T10 Gibbs Energy as a Function of Temperature and Pressure 121 Model 2: Chemical Potential....
ChemActivity T10 Gibbs Energy as a Function of Temperature and Pressure 121 Model 2: Chemical Potential. For a pure phase, the chemical potential is given by where G is the molar Gibbs energy and n is the number of moles. Critical Thinking Questions 5. For a constant temperature process, what is the relationship between do, volume, and pressure? 6. A particularly useful relationship is that between G and volume and pressure for various systems at constant temperature. a) For condensed...
problems 7-9 7) Which of the following items are true for the p below? Version 2 are true for the phase diagram of c...
problems 7-9
7) Which of the following items are true for the p below? Version 2 are true for the phase diagram of carbon dioxide as seen 72.9 atm Supercritical fluid - medy Liquid Boiling Solid Puaponzatur Pressure (not to scale) 5.1 atm -- 1 Sublimation CD- noi Zobsins 11c -78.5°C -56.7°C Temperature (not to scale) A) Unlike many other substances, carbon dioxide does not have a pressure and temperature combination where liquid, solid, and gas phases coexist. B) Carbon...
A gas cylinder containing carbon dioxide, CO2, 85% by volume, and nitrogen, N2, 15% by volume...
A gas cylinder containing carbon dioxide, CO2, 85% by volume, and nitrogen, N2, 15% by volume has a volume of 2.2 m and is kept at a temperature of 20°C. You may assume the gas mixture is ideal. 0 Calculate the pressure in kPa in the cylinder when it contains 50 kg of gas. [2 marks] After a certain amount of gas has been used, the pressure decreases by 150 kPa. Calculate the mass of gas used. [2 marks] (b)...
CHM 1210 Final practice Name: Know electrolyte table, 5 solubility rules; 26 polyatomics (name/formula) Write 7...
CHM 1210 Final practice Name: Know electrolyte table, 5 solubility rules; 26 polyatomics (name/formula) Write 7 naturally occurring diatomic molecules (name; formula, phase , charge) Write rite out strong acids and weak acids by name; formula, phase ,charge Write out the molecular, complete, and net-ionic equations for the following reactions The mixing of Cobalt(IlI) chloride and silver nitrate The mixing of acetic acid and sodium hydroxide The mixing of hydrochloric acid and cakcium hydroxide The mixing of barium chloride and...
Date: Period: Name: You Try... 4. Given the following chemical equation 4P + 50; → 2...
Date: Period: Name: You Try... 4. Given the following chemical equation 4P + 50; → 2 PO (a) How many moles of P,0, are formed from 3.4 moles of O,? SHOW the math below (b) How many moles of P are needed to react with 30,1 moles of O,? SHOW the math below. 5. Aluminum reacts with copper(ll) chloride to make aluminum chloride and copper (a) Write the balanced equation (b) Given 6 moles of Cuch, how many moles of...
1. Which of the following are the sites within the human body where carbon dioxide and...
1. Which of the following are the sites within the human body where carbon dioxide and oxygen are exchanged? A. Alveoli B. Arteries C. Synapses D. Venules 2. Which of the following describes the most important reason for repeating an experimental investigation? A. To verify the validity of the original findings B. To expand upon the original investigation C. To manipulate the independent variable D. To attempt to disprove the hypothesis 3. Lithium has an atomic number of 3 and...
1) In class we considered the temperature dependence of chemical potential. Roughly sketch the chemical potential vs. pressure (y vs. x) for water at 100°C from about 1 Pa to 1 MPa. Label the appropriate regions with what phase they contain. What does the slope of these curves correspond to? Hint: It will be useful to look up the appropriate phase diagram for water over this pressure range.
46.2% Resources Give Up? Hint Consider the phase diagram for carbon dioxide. 73.0 In what phase is CO, at 4 atm and -10 °C? solid liquid O gas Pressure (atm) solid liquid 5.11 1.0 31.1 -78.5-564 Temperature (°C) Starting from the same point, 4 atm and -10 °C, what phase change would eventually result from an increase in pressure? freezing deposition melting condensation sublimation vaporization
5) Consider the phase diagram for carbon dioxide(10). Supercritical fluid Solid Liquid Pressure (atm) -78.5 -56.4 Temperature (°C)— a) What is the critical temperature for carbon dioxide? b) What is the critical pressure for carbon dioxide? c) What phase(s) is/are present at -10°C and 30 atm. d) What phase(s) is/are present at -60°C and 10 atm. - e) What phase(s) is/are present at-78.5°C and 1 atm. f) What phase(s) is/are present at-56.4°C and 5.11 atm. g) What is the normal...
5. Below you find a sketch of the p,T-phase diagram of H20, indicating preferred physical states of H20 at different temperatures and pressure. The regions labeled with In, XI, and III, stand for different forms of solid H20. For example, ice Ih is the standard ice (there are more than 12 different forms of solid H2O). Draw two diagrams for the chemical potentials as a function of temperature (from Ti to T2) of each of the phases (there are 5...
ChemActivity T10 Gibbs Energy as a Function of Temperature and Pressure 121 Model 2: Chemical Potential. For a pure phase, the chemical potential is given by where G is the molar Gibbs energy and n is the number of moles. Critical Thinking Questions 5. For a constant temperature process, what is the relationship between do, volume, and pressure? 6. A particularly useful relationship is that between G and volume and pressure for various systems at constant temperature. a) For condensed...
problems 7-9
7) Which of the following items are true for the p below? Version 2 are true for the phase diagram of carbon dioxide as seen 72.9 atm Supercritical fluid - medy Liquid Boiling Solid Puaponzatur Pressure (not to scale) 5.1 atm -- 1 Sublimation CD- noi Zobsins 11c -78.5°C -56.7°C Temperature (not to scale) A) Unlike many other substances, carbon dioxide does not have a pressure and temperature combination where liquid, solid, and gas phases coexist. B) Carbon...
A gas cylinder containing carbon dioxide, CO2, 85% by volume, and nitrogen, N2, 15% by volume has a volume of 2.2 m and is kept at a temperature of 20°C. You may assume the gas mixture is ideal. 0 Calculate the pressure in kPa in the cylinder when it contains 50 kg of gas. [2 marks] After a certain amount of gas has been used, the pressure decreases by 150 kPa. Calculate the mass of gas used. [2 marks] (b)...
CHM 1210 Final practice Name: Know electrolyte table, 5 solubility rules; 26 polyatomics (name/formula) Write 7 naturally occurring diatomic molecules (name; formula, phase , charge) Write rite out strong acids and weak acids by name; formula, phase ,charge Write out the molecular, complete, and net-ionic equations for the following reactions The mixing of Cobalt(IlI) chloride and silver nitrate The mixing of acetic acid and sodium hydroxide The mixing of hydrochloric acid and cakcium hydroxide The mixing of barium chloride and...
Date: Period: Name: You Try... 4. Given the following chemical equation 4P + 50; → 2 PO (a) How many moles of P,0, are formed from 3.4 moles of O,? SHOW the math below (b) How many moles of P are needed to react with 30,1 moles of O,? SHOW the math below. 5. Aluminum reacts with copper(ll) chloride to make aluminum chloride and copper (a) Write the balanced equation (b) Given 6 moles of Cuch, how many moles of...
