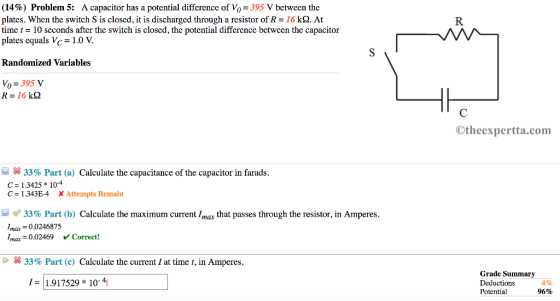

Thank you in advance! (14%) Problem 5: A capacitor has a potential difference of Vo-395 V...

Question

Question

Thank you in advance!

science physics

Answer 1

✔ Recommended Answer

Answer #1

-101RC Ah 0.02469 A Am A.

Answer 2

Similar Homework Help Questions

A capacitor with an initial potential difference of 122 V is discharged through a resistor when...

A capacitor with an initial potential difference of 122 V is discharged through a resistor when a switch between them is closed at t = 0 s. At t = 10.0 s, the potential difference across the capacitor is 1.68 V. (a) What is the time constant of the circuit? (b) What is the potential difference across the capacitor at t = 17.5 s?
A capacitor with an initial potential difference of 117 V is discharged through a resistor when...

A capacitor with an initial potential difference of 117 V is discharged through a resistor when a switch between them is closed at t = 0 s. At t = 10.0 s, the potential difference across the capacitor is 1.11 V. (a) What is the time constant of the circuit? (b) What is the potential difference across the capacitor at t = 15.7 s?
A capacitor with an initial potential difference of 181 V is discharged through a resistor when...

A capacitor with an initial potential difference of 181 V is discharged through a resistor when a switch between them is closed at t = 0 s. At t = 10.0 s, the potential difference across the capacitor is 1.08 V. (a) What is the time constant of the circuit? (b) What is the potential difference across the capacitor at t = 16.1 s?

A capacitor with an initial potential difference of 198 V is discharged through a resistor when...

A capacitor with an initial potential difference of 198 V is discharged through a resistor when a switch between them is closed at t = 0 s. At t = 10.0 s, the potential difference across the capacitor is 1.75 V. (a) What is the time constant of the circuit? (b) What is the potential difference across the capacitor at t = 19.1 s?
QUESTION 3 Assume you have a capacitor with an initial potential difference of 100 V that...

QUESTION 3 Assume you have a capacitor with an initial potential difference of 100 V that is discharged through a resistor when a switch between them is closed at t=0. Att= 10.0s, the potential difference across the capacitor is 1.00 V and its time constant RC is 2.17 sec. What is the potential difference V(t) across the capacitor at t= 17.0 s? 0.0396 V 0.0309 V 0.0456 V 0.0412 V QUESTION 4 The capacitance (size) of the capacitor is a...
A capacitor with an initial potential difference of 127 V is discharged through a resistor when...

A capacitor with an initial potential difference of 127 V is discharged through a resistor when a switch between them is closed at t-0 s. At t 10.0 s, the potential difference across the capacitor is 1.90 V. (a) what is the time constant of the circuit? (b) What is the potential difference across the capacitor at t = 18.3 s? (a) Number (b) Number 5 Co Units Units

A capacitor of capacitance C= 2.5 μF is initially uncharged. It is connected in series with a switch of negligible resistance

A capacitor of capacitance C= 2.5 μF is initially uncharged. It is connected in series with a switch of negligible resistance, a resistor of resistance R= 14.5 kΩ, and a battery which provides a potential difference of VB = 160 V.Part (a) Immediately after the switch is closed, what is the voltage drop Vc, in volt across the capacitor?Part (b) Immediately after the switch is closed, what is the voltage drop VR, in volt: across the resistor?Part (c) Immediately after...
Part C, D and E please (6%) Problem 11: A capacitor of capacitance -8.5 F is...

Part C, D and E please (6%) Problem 11: A capacitor of capacitance -8.5 F is initially uncharged. It is connected in series with a switch of negligible resistance, a resistor of resistance R-15 k2, and a battery which provides a potential difference of VB 135 V 20% Part (a) Immediately after the switch is closed, what is the voltage drop VC, in volts, across the capacitor? VC-0 Correct! 20% Part (b) Immediately after the switch is closed, what is...
Problem 3: S is initially open and the potential difference across the capacitor is 80 V....

Problem 3: S is initially open and the potential difference across the capacitor is 80 V. If the switch is closed at t=0, find q on C when I = 33 x 10-6A. 22uF 1.5 M2

ln the figure below you see a circuit with a battery (V), a capacitor (C), and...

ln the figure below you see a circuit with a battery (V), a capacitor (C), and two resistors (R1 and R2). The circuit has a switch that can be in two positions: switched to touch point A or switched to touch point B. By setting first the switch to A you can charge the capacitor, and then switching it to B you discharge the capacitor through the resistor. (This is the simple mechanism behind a camera flash, you can imagine...
