Question

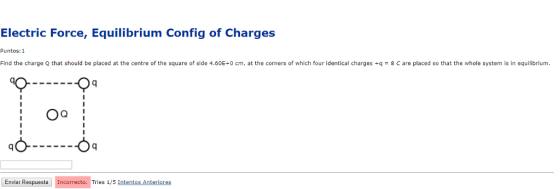

Electric Force, Equilibrium Config of Charges Puntos: 1 Find the charge Q that should be placed at the centre of the square of side 4.60E+0 cm, at the corners of which four identical charges +q = 8 C are placed so that the whole system is in equilibrium. Enviar Respuesta Incorrecto. Tries 1/5 Intentos Anteriores

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

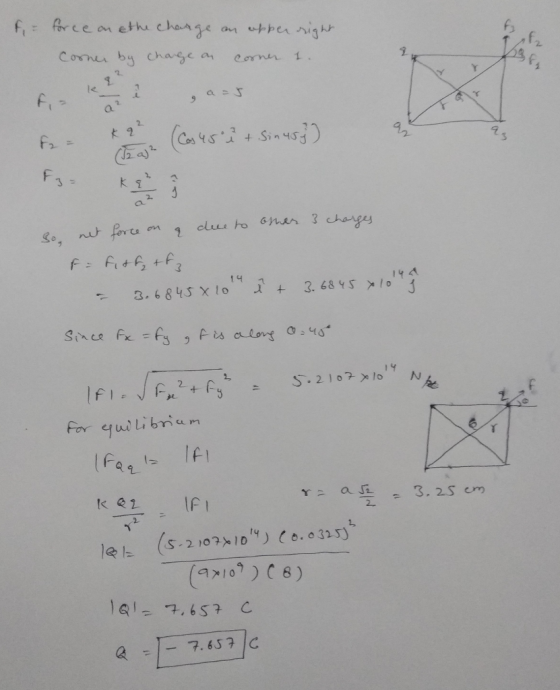

Com by chasea comn 1 le as a. 3 工 = 3.25cm 2 27.632C

0 0
