Homework Answers

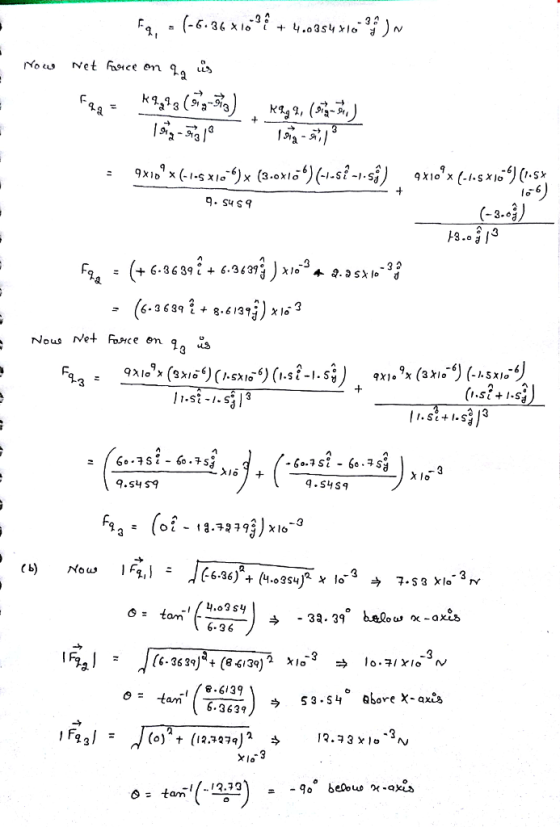

![9xle x (-1-s x #9 x (3.oxiat)(-.s?- .ร์ไ qx1。, x (-1.SXloj@sx : q. S4 S9 (-3.영 3.o Nous Ne Foce en @kle,TA*)(hn)(M/.1.4). n,,(sh (MSI..し 11.st.1.邪 4.S4 S9 9.s4 s9 2 6-36 [G-363]* (8<i30)2 Xloo.io 9-6139 -tam](http://img.homeworklib.com/questions/195cd160-77af-11ea-841b-7f9639cd76bc.png?x-oss-process=image/resize,w_560)
Add Answer to:

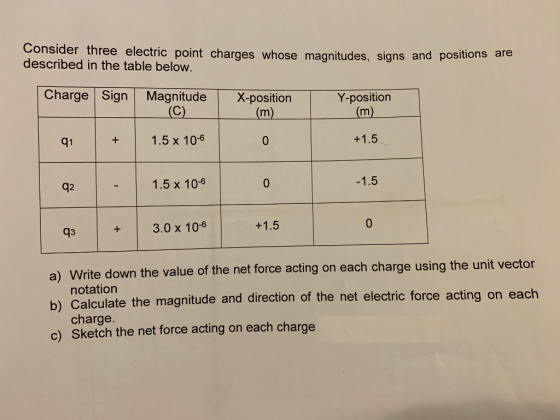

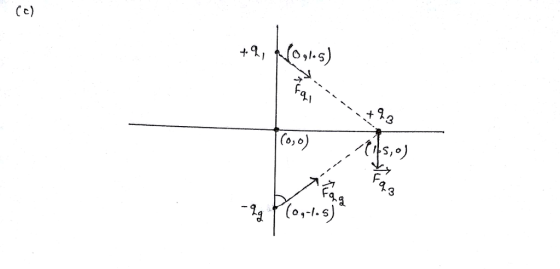

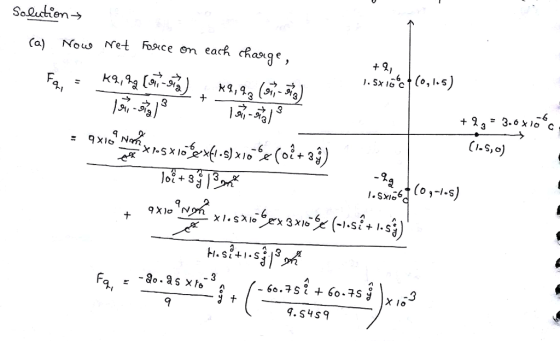

Consider three electric point charges described in the table below. Charge Sign Magnitude X-positionY-position q1 +1.5...
Three point charges are located on the positive x-axis of a coordinate system. Charge q1 =...
Three point charges are located on the positive x-axis of a coordinate system. Charge q1 = 1.5 nC is 2.0 cm from the origin, charge q2 = -3.0 nC is 4.0 cm from the origin and charge q3 = 5.5 nC located at the origin. What is the net force ((a)magnitude and (b) direction) on charge q1 = 1.5 nC exerted by the other two charges?
Three point charges lie in the x-y plane as shown in the diagram below: q1= 84.1...
Three point charges lie in the x-y plane as shown in the diagram
below: q1= 84.1 μC and is located at the origin;
q2= 33.1 μC and is located at x = 3.21 m and y = 0;
q3= -16.7 μC and is located at x = 1.41 m and y = 2.21
m. A force diagram showing the forces acting on q1 and a
coordinate system are given in the diagram.
Calculate the y-component of the net electrostatic force...
Three point charges lie in the x-y plane as shown in the diagram below: q1= 66.1...
Three point charges lie in the x-y plane as shown in the diagram
below: q1= 66.1 μC and is located at the origin;
q2= 31.7 μC and is located at x = 2.61 m and y = 0;
q3= -19.9 μC and is located at x = 1.61 m and y = 2.61
m. A force diagram showing the forces acting on q1 and a
coordinate system are given in the diagram.
Calculate the y-component of the net electrostatic force...
Three point charges lie in the x-y plane as shown in the diagram below: q1= 62.1...
Three point charges lie in the x-y plane as shown in the diagram
below: q1= 62.1 μC and is located at the origin;
q2= 31.5 μC and is located at x = 2.21 m and y = 0;
q3= -19.5 μC and is located at x = 1.61 m and y = 2.21
m. A force diagram showing the forces acting on q1 and a
coordinate system are given in the diagram.
1. Calculate the y-component of the net electrostatic...
Three point charges lie along a straight line as shown in the figure below
Three point charges lie along a straight line as shown in the figure below, where q1 = 6.30 µC, q2 = 1.59 µC, and q3 = -2.12 µC. The separation distances are d1 = 3.00 cm and d2 = 2.00 cm. Calculate the magnitude and direction of the net electric force on each of the charges.Three charges lie along a horizontal line. Positive charge q1 is on the left. Positive charge q2 is a distance d1 to the right of...
Three point charges lie in the x-y plane as shown in the diagram below: q1= 80.7...
Three point charges lie in the x-y plane as shown in the diagram below: q1= 80.7 pC and is located at the origin; q2= 36.3 yC and is located at x = 3.01 m and y = 0; q3=-19.1 pC and is located at x = 1.61 m and y 2.21 m. A force diagram showing the forces acting on q1 and a coordinate system are given in the diagram. g(m) F. 31 2 9-x(m) F. 21 Calculate the y-component...
Three point charges are located on the positive x-axis of a coordinate system. Charge q1 =...
Three point charges are located on the positive x-axis of a coordinate system. Charge q1 = 1.5 nC is 2.0 cm from the origin, charge q2 = -2.0 nC is 4.0 cmfrom the origin and charge q3 = 4.5 nC located at the origin. What is the magnitude of the net force exerted by the other two charges on charge q1 = 1.5 nC? What is the direction of the net force exerted by the other two charges on charge...
Three point charges are located on the positive x-axis of a coordinate system. charge q1 1.5...
Three point charges are located on the positive x-axis of a coordinate system. charge q1 1.5 nC is 2.0 cm from the origin, charge q2 -2.0 nC is 4.0 cm from the origin and charge q3 -5.0 nC located at the origin. What is the net force ((a)magnitude and (b) direction) on charge q1.5 nC exerted by the other two charges?
Three point charges lie along the x-axis. Charge 1 has q1=6µC and is at x= -3.00cm....
Three point charges lie along the x-axis. Charge 1 has q1=6µC and is at x= -3.00cm. Charge 2 is at the origen and has q2= 1.50µC. Charge 3 is located at x3= 2.00cm and has a q3= 2.00µC. Calculate the magnitude and direction of the net electric force on q1, q2, and q3.
Ex: a) For the three charges shown below, calculate the force on charge 2 (magnitude and...
Ex: a) For the three charges shown below, calculate the force on charge 2 (magnitude and direction) due to the other two charges <-0.30 m ----><--0.20 m---> ㄑㄧ Q1 Q2 5.0 uC Q3 -3.0 HC -3.0 uC b) What is the magnitude of the electric field at q2?
Three point charges lie in the x-y plane as shown in the diagram
below: q1= 84.1 μC and is located at the origin;
q2= 33.1 μC and is located at x = 3.21 m and y = 0;
q3= -16.7 μC and is located at x = 1.41 m and y = 2.21
m. A force diagram showing the forces acting on q1 and a
coordinate system are given in the diagram.
Calculate the y-component of the net electrostatic force...
Three point charges lie in the x-y plane as shown in the diagram
below: q1= 66.1 μC and is located at the origin;
q2= 31.7 μC and is located at x = 2.61 m and y = 0;
q3= -19.9 μC and is located at x = 1.61 m and y = 2.61
m. A force diagram showing the forces acting on q1 and a
coordinate system are given in the diagram.
Calculate the y-component of the net electrostatic force...
Three point charges lie in the x-y plane as shown in the diagram below: q1= 80.7 pC and is located at the origin; q2= 36.3 yC and is located at x = 3.01 m and y = 0; q3=-19.1 pC and is located at x = 1.61 m and y 2.21 m. A force diagram showing the forces acting on q1 and a coordinate system are given in the diagram. g(m) F. 31 2 9-x(m) F. 21 Calculate the y-component...
Three point charges are located on the positive x-axis of a coordinate system. charge q1 1.5 nC is 2.0 cm from the origin, charge q2 -2.0 nC is 4.0 cm from the origin and charge q3 -5.0 nC located at the origin. What is the net force ((a)magnitude and (b) direction) on charge q1.5 nC exerted by the other two charges?
Ex: a) For the three charges shown below, calculate the force on charge 2 (magnitude and direction) due to the other two charges <-0.30 m ----><--0.20 m---> ㄑㄧ Q1 Q2 5.0 uC Q3 -3.0 HC -3.0 uC b) What is the magnitude of the electric field at q2?
