A solid aluminum cube is attached to spring-like device and is able to oscillate horizontally with...

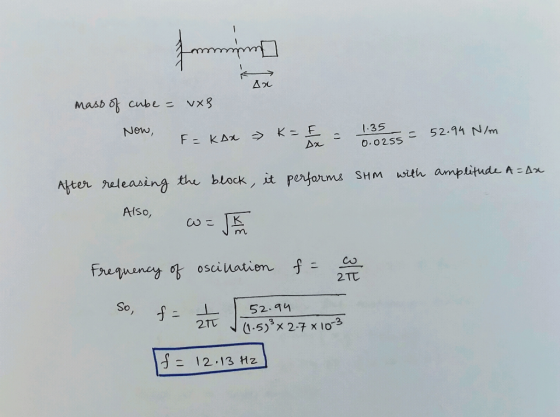

A solid aluminum cube is attached to spring-like device and is able to oscillate horizontally with negligible friction. Each side of the cube is 1.50 cm long. The cube is initially pulled to a point where it stretches the spring-like device by 2.55 cm where it is held at rest with a horizontal force of 1.35 N. What is the frequency at which it oscillates when it is released? (Assume the density of aluminum is 2.70 g/cm3.) answer in Hz
Homework Answers
