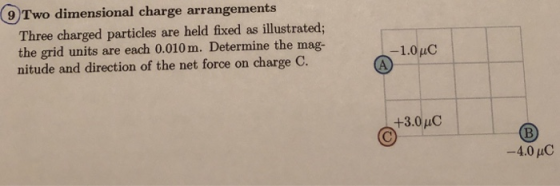

9)Two dimensional charge arrangements Three charged particles are held fixed as illustrated; the grid units are...

Question

Question

science physics

Answer 1

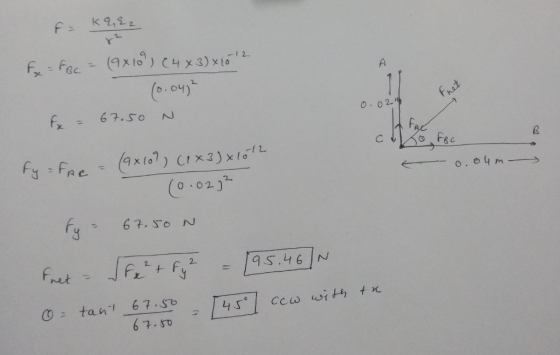

Answer #1

Fx = Fbc

Fy = Fac

Fnet = sqrt((Fx)^2 + (Fy)^2)

67.0 N o. 02 fa 0 02 6 7 530 67.SD

Answer 2

Similar Homework Help Questions

10 Two dimensional charge arrangements Four charged particles are held fixed as illustrated; the grid units...

10 Two dimensional charge arrangements Four charged particles are held fixed as illustrated; the grid units are each 0.010 m. a)) Determine the net force on charge B. b) Determine the net force on charge D. c) Determine the net force on charge C +3.0pC +3.0 AC -2.0uC
19 Electric field produced by two point charges Two charged particles are held fixed as illustrated;...

19 Electric field produced by two point charges Two charged particles are held fixed as illustrated; the grid units are each 0.010m. The aim of this exercise will be to determine the field at point P a) Indicate the directions of the electric fields produced by each source charge at point P 2.0nC b) Determine the magnitude of the electric field produced -40nC by each source charge at point P. c) Using vector components add the two electric fields.
13 Electric field at various locations A charged particle is held fixed as illustrated; the grid...

13 Electric field at various locations A charged particle is held fixed as illustrated; the grid units are each 0.010m. Determine the electric field vec- tor at each point A,B,C and D. Draw the vectors on the diagram (or on a copy of the diagram). +8.0 uC

The charges and coordinates of two charged particles held fixed in an xy plane are q1...

The charges and coordinates of two charged particles held fixed in an xy plane are q1 = 3.24 μC, x1 = 4.88 cm, y1 = 0.358 cm and q2 = -3.53 μC, x2 = -2.01 cm, y2 = 1.60 cm. Find the (a) magnitude and (b) direction of the electrostatic force on particle 2 due to particle 1. At what (c) x and (d) y coordinates should a third particle of charge q3 = 5.12 μC be placed such that...
The charges and coordinates of two charged particles held fixed in an xy plane are q1...

The charges and coordinates of two charged particles held fixed in an xy plane are q1 = 3 39 μ x1 = 5 84 m. Уі О.216 c and q magnitude and b) direction with respect to +x-axis in the range -180。180° of the electrostatic force on particle 2 due to particle charge q3-6.99 μС be placed such that the net electrostatic force on particle 2 due to particles 1 and 3 is zero? 3.47 C X 233 m. 2.15...
The charges and coordinates of two charged particles held fixed in an xy plane are 91...

The charges and coordinates of two charged particles held fixed in an xy plane are 91 2.66 uc, x1 = 2.85 cm, Y1 = 0.242 cm and 92 = -4.37 uc, x2 = -2.93 cm, Y2 = 1.98 cm. Find the (a) magnitude and (b) direction (with respect to +x-axis in the range (-180°;180°]) of the electrostatic force on particle 2 due to particle 1. At what (C) x and (d) y coordinates should a third particle of charge 93...

The charges and coordinates of two charged particles held fixed in an xy plane are q1...

The charges and coordinates of two charged particles held fixed in an xy plane are q1 = 3.49 μC, x1 = 3.80 cm, y1 = 0.165 cm and q2 = -5.05 μC, x2 = -2.87 cm, y2 = 2.08 cm. Find the (a)magnitude and (b) direction (with respect to +x-axis in the range (-180°;180°]) of the electrostatic force on particle 2 due to particle 1. At what (c) x and (d) y coordinates should a third particle of charge q3...
The charges and coordinates of two charged particles held fixed in the xy plane are: q1=3.40...

The charges and coordinates of two charged particles held fixed in the xy plane are: q1=3.40 ?C, x1=0.300 cm, y1=7.400 cm, and q2=3.20 ?C, x2=4.444 cm, y2=8.549 cm, Find the magnitude and direction of the electrostatic force on q2. What are the x and y coordinates of a third charge q3=3.90 ?C, if the net electrostatic force on q2 is zero?
Three charged particles are held in place. Particle A has a net charge of +2 μC...

Three charged particles are held in place. Particle A has a net charge of +2 μC and is at (0, 0) m. Particle B has a net charge of +4 μC and is placed a (0.5, 0) m. Particle C has a net charge of -4 μC and is placed at (0, 0.5) m. What is the angle of direction of the net force acting on particle A? answer: 135*

The charges and coordinates of two charged particles held fixed in an xy plane are q1...

The charges and coordinates of two charged particles held fixed in an xy plane are q1 = 3.18 μC, x1 = 5.16 cm, y1 = 0.330 cm and q2 = -3.65 μC, x2 = -1.69 cm, y2 = 1.82 cm. Find the (a) magnitude and (b) direction of the electrostatic force on particle 2 due to particle 1. At what (c) x and (d) y coordinates should a third particle of charge q3 = 4.65 μC be placed such that...
