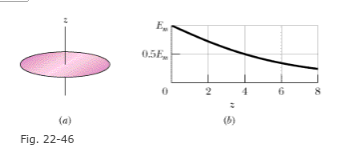

Figure 22-46a shows a circular disk that is uniformly charged. The central z axis is perpendicular to the disk face, with the origin at the disk. Figure 22-46b gives the magnitude of the electric field along that axis in terms of the maximum magnitude Em at the disk surface. (The horizontal axis is marked in increments of 0.5 cm.) What is the radius of the disk?

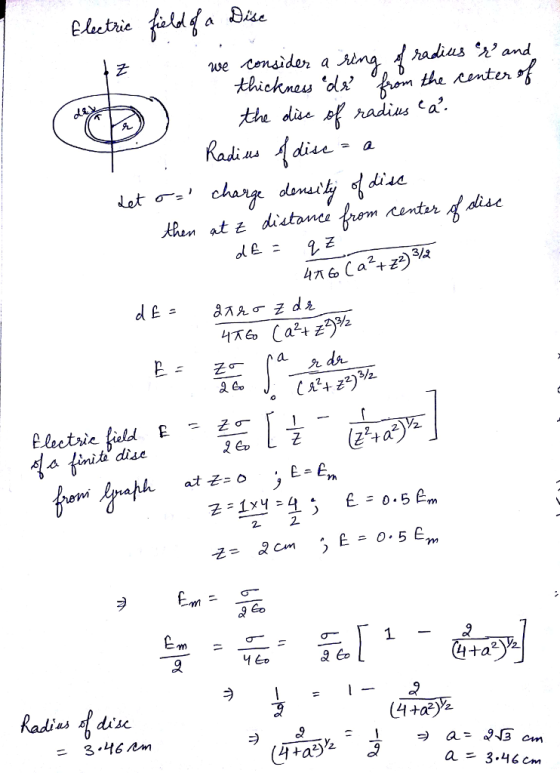

Homework Answers
Add Answer to:
Figure 22-46a shows a circular disk that is uniformly
charged. The central z axis is perpendicular...
Figure (a) shows a circular disk that is uniformly charged. The central z axis is perpendicular...
Figure (a) shows a circular disk that is uniformly
charged. The central z axis is perpendicular to the disk
face, with the origin at the disk. Figure (b) gives the
magnitude of the electric field along that axis in terms of the
maximum magnitude Em at the disk surface. The
z axis scale is set by zs = 41.0 cm.
What is the radius of the disk?
Figure (a) shows a circular disk that is uniformly charged. The central z...
Figure (a) shows a circular disk that is uniformly charged. The central z axis is perpendicular...
Figure (a) shows a circular disk that is uniformly charged. The central z axis is perpendicular to the disk face, with the origin at the disk. Figure (b) gives the magnitude of the electric field along that axis in terms of the maximum magnitude Em at the disk surface. The z axis scale is set by zs 27.0 cm. What is the radius of the disk? OSE (cm) Number Units
Figure (a) shows a circular disk that is uniformly charged. The central z axis is perpendicular to the disk face, with the origin at the disk.
Figure (a) shows a circular disk that is uniformly charged. The central z axis is perpendicular to the disk face, with the origin at the disk. Figure (b) gives the magnitude of the electric field along that axis in terms of the maximum magnitude Em at the disk surface. The z axis scale is set by zs = 26.0 cm. What is the radius of the disk?
1. At what distance along the central perpendicular axis of a uniformly charged plastic disk of...
1. At what distance along the central perpendicular axis of a uniformly charged plastic disk of radius 2 m is the magnitude of the electric field equal to one half the magnitude of the field at the center of the surface of the disk? Note: You must derive the formula for the electric field for the disk in order to recieve full credit. 2. A proton is placed in a uniform magnetic field B = 1.2 mT. If the proton...
Chapter 22, Problem 035 At what distance along the central axis of a uniformly charged plastic...
Chapter 22, Problem 035 At what distance along the central axis of a uniformly charged plastic disk of radius R = 1.23 m is the magnitude of the electric field equal to 1/7 times the magnitude of the field at the center of the surface of the disk?
At what distance along the central axis of a uniformly charged plastic disk of radius R-...
At what distance along the central axis of a uniformly charged plastic disk of radius R- 0.765 m is the magnitude of the electric field equal to 1/9 times the magnitude of the field at the center of the surface of the disk?
Suppose you design an apparatus in which a uniformly charged disk of radius R is to...
Suppose you design an apparatus in which a uniformly charged
disk of radius R is to produce an electric field. The field
magnitude is most important along the central perpendicular axis of
the disk, at a point P at distance 2.50R from the disk (Fig. a).
Cost analysis suggests that you switch to a ring of the same outer
radius R but with inner radius R/2.00 (Fig. b). Assume that the
ring will have the same surface charge density as...
Suppose you design an apparatus in which a uniformly charged disk of radius R is to produce an electric field.
Suppose you design an apparatus in which a uniformly charged disk of radius R is to produce an electric field. The field magnitude is most important along the central perpendicular axis of the disk, at a point P at distance 4.60R from the disk (see Figure (a)). Cost analysis suggests that you switch to a ring of the same outer radius R but with inner radius R/4.60 (see Figure (b)). Assume that the ring will have the same surface charge...
Suppose you design an apparatus in which a uniformly charged disk of radius R is to...
Suppose you design an apparatus in which a uniformly charged disk of radius R is to produce an electric field. The field magnitude is most important along the central perpendicular axis of the disk, at a point P at distance 4.50R from the disk (see Figure (a)). Cost analysis suggests that you switch to a ring of the same outer radius R but with inner radius R/4.50 (see Figure (b)). Assume that the ring will have the same surface charge...
Figure (a) shows a circular disk that is uniformly
charged. The central z axis is perpendicular to the disk
face, with the origin at the disk. Figure (b) gives the
magnitude of the electric field along that axis in terms of the
maximum magnitude Em at the disk surface. The
z axis scale is set by zs = 41.0 cm.
What is the radius of the disk?
Figure (a) shows a circular disk that is uniformly charged. The central z...
Figure (a) shows a circular disk that is uniformly charged. The central z axis is perpendicular to the disk face, with the origin at the disk. Figure (b) gives the magnitude of the electric field along that axis in terms of the maximum magnitude Em at the disk surface. The z axis scale is set by zs 27.0 cm. What is the radius of the disk? OSE (cm) Number Units
At what distance along the central axis of a uniformly charged plastic disk of radius R- 0.765 m is the magnitude of the electric field equal to 1/9 times the magnitude of the field at the center of the surface of the disk?
Suppose you design an apparatus in which a uniformly charged
disk of radius R is to produce an electric field. The field
magnitude is most important along the central perpendicular axis of
the disk, at a point P at distance 2.50R from the disk (Fig. a).
Cost analysis suggests that you switch to a ring of the same outer
radius R but with inner radius R/2.00 (Fig. b). Assume that the
ring will have the same surface charge density as...
Suppose you design an apparatus in which a uniformly charged disk of radius R is to produce an electric field. The field magnitude is most important along the central perpendicular axis of the disk, at a point P at distance 4.50R from the disk (see Figure (a)). Cost analysis suggests that you switch to a ring of the same outer radius R but with inner radius R/4.50 (see Figure (b)). Assume that the ring will have the same surface charge...
