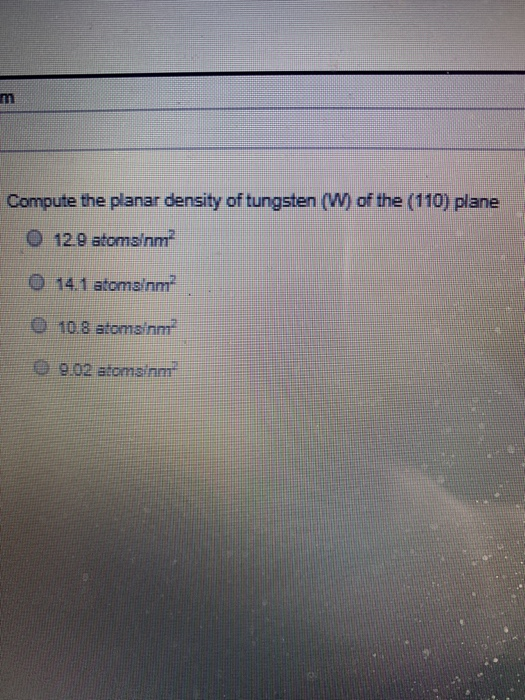

Compute the planar density of tungsten (W) of the (110) plane 0 129 atomsinm 14. 1...

Question

Question

science chemistry

Answer 1

Answer #1

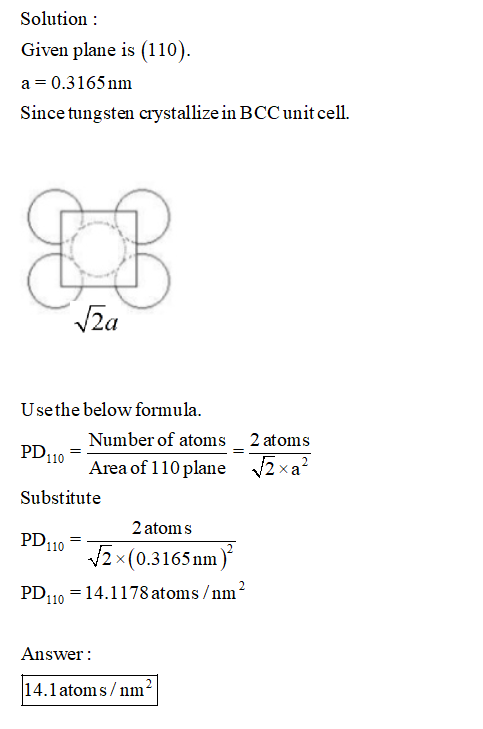

Solution : Given plane is (110). a = 0.3165 nm Since tungsten crystallize in BCC unit cell. Usethe below formula. Number of a

Answer 2
