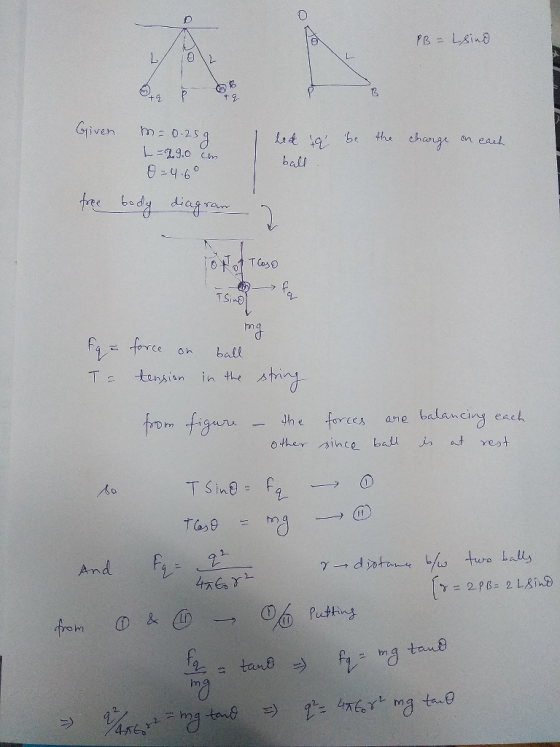

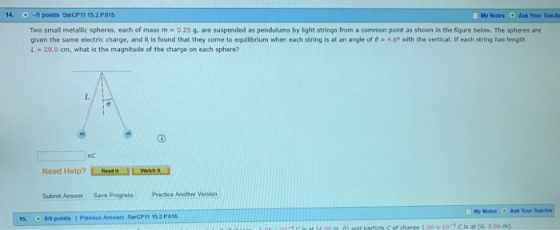

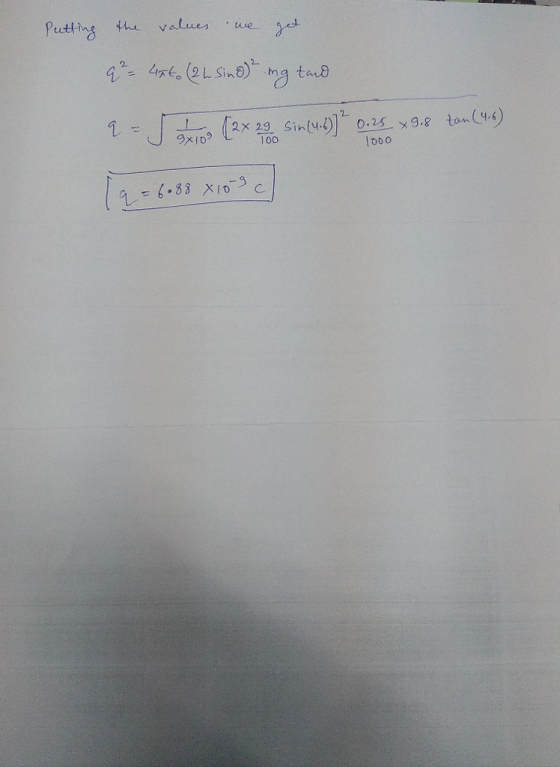

14. -1 points Serc11 15 2.P015 My Noles Ask Your Teache Two small metallic spheres, each of mass m 0.25 g, are suspended as pendulums by light strings from a common point as shown in the figure below. The spheres are given the same electric charge, and it is found that they come to equilibrium when each string is at an angle of θ = 4.6. with the vertical tf each string has length L-29.0 cm, what is the magnitude of the charge on each sphere? Need Help? Wae Subemit. Answer Save ProgressPractice Anether Version My Notes Ask Your 15. 919 points1 Pevious Anwers erCP11 15 2 PO1G eCofcharge 1.50 x 10-4 C is at (0, 3.66 m).
0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
14. -1 points Serc11 15 2.P015 My Noles Ask Your Teache Two small metallic spheres, each...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Two small metallic spheres, each of mass m = 0.50 g, are suspended as pendulums by...

    Two small metallic spheres, each of mass m = 0.50 g, are suspended as pendulums by light strings from a common point as shown in the figure below. The spheres are given the same electric charge, and it is found that they come to equilibrium when each string is at an angle of θ = 4.0° with the vertical. If each string has length  L = 39.0 cm, what is the magnitude of the charge on each sphere? Thank you in...

  • Two small metallic spheres, each of mass m = 0.186 g, are suspended as pendulums by...

    Two small metallic spheres, each of mass m = 0.186 g, are suspended as pendulums by light strings of length L as shown in the figure below. The spheres are given the same electric charge of 8.0 nC, and they come to equilibrium when each string is at an angle of θ = 5.10° with the vertical. How long are the strings?

  • Two small metallic spheres, each of mass m = 0.220 g, are suspended as pendulums by...

    Two small metallic spheres, each of mass m = 0.220 g, are suspended as pendulums by light strings of length L as shown in the figure below. The spheres are given the same electric charge of 6.7 nC, and they come to equilibrium when each string is at an angle of θ-4.60° with the vertical. How long are the strings?

  • Two small metallic spheres, each of mass m = 0.208 g, are suspended as pendulums by...

    Two small metallic spheres, each of mass m = 0.208 g, are suspended as pendulums by light strings of length L as shown in the figure below. The spheres are given the same electric charge of 6.9 nC, and they come to equilibrium when each string is at an angle of θ = 4.85° with the vertical. How long are the strings?

  • Two small metallic spheres, each of mass m = 0.218 g, are suspended as pendulums by...

    Two small metallic spheres, each of mass m = 0.218 g, are suspended as pendulums by light strings of length L as shown in the figure below. The spheres are given the same electric charge of 6.8 nC, and they come to equilibrium when each string is at an angle of θ-4.70° with the vertical. How long are the strings?

  • Two small metallic spheres, each of mass m = 0.45 g, are suspended as pendulums by...

    Two small metallic spheres, each of mass m = 0.45 g, are suspended as pendulums by light strings from a common point. The spheres are given the same electric charge, and it is found that they come to equilibrium when each string is at an angle of θ = 3.3° with the vertical. If each string has length L = 36.0 cm, what is the magnitude of the charge on each sphere?

  • Two small metallic spheres, each of mass m = 0.214 g, are suspended as pendulums by...

    Two small metallic spheres, each of mass m = 0.214 g, are suspended as pendulums by light strings of length L as shown in the figure below. The spheres are given the same electric charge of 7.3 nC, and they come to equilibrium when each string is at an angle of ? = 4.80° with the vertical.

  • 7) Two small metallic spheres, each of mass m = 0.10 g, are suspended as pendulums...

    7) Two small metallic spheres, each of mass m = 0.10 g, are suspended as pendulums by light strings of length L, as shown in the figure. The spheres are given the same electrical charge of 4.00 nC and are balanced when each string is at an angle of θ = 5.00 ° with the vertical. How long are the strings?

  • Two small metallic spheres, each given the same electric charge of 7.6 nC, and they come...

    Two small metallic spheres, each given the same electric charge of 7.6 nC, and they come to equilibrium when each string is at an angle of θ-5.050 with the vertical. How long are the strings? of mass m 0.184 g, are suspended as pendulums by light strings of length L as shown in the figure below. The spheres are

  • Two small metallic spheres, each of mass 0.20 g, are suspended as pendulums by light strings...

    Two small metallic spheres, each of mass 0.20 g, are suspended as pendulums by light strings from a common point as shown in the figure below. The spheres are given the same electric charge, and it is found that they come to equilibrium when each string is at an angle of 5.0° with the vertical. If each string is 30.0 cm long, what is the magnitude of the charge on each sphere?
