Question

Water from a fire hose is directed toward a building as shown in the figure below. The water leaves the hose at a speed of vi = 40.0 m/s and at an angle of θi = 42.0° above the horizontal. The base of the hose (at ground level) is a horizontal distance d = 45.0 m away from the building. Find the height h (in m) where the water strikes the building.

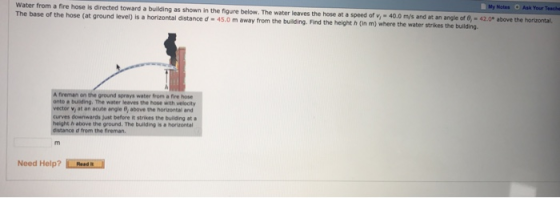

My Notes Ask Your Teache Water from a fire hose is directed toward a building The base of the hose (at ground level) is a horizontal distance d-45.0 m away from the building Find the height h (in m) where the water strikes the building. as shown in the figure below. The water leaves the hose at a speed of v,- 40.0 m/s and at an angle of 8, 42.0° above the horizontal. A fireman on the ground sprays water from a fire hose onto a buiding. The water leaves the hose with velocity , at an acute angle Q, above the horizontal and downwards Just before it strikes the building at height h above the ground. The building is a horizontal distance d from the fireman Need Help? RosdR

A fireman on the ground sprays water from a fire hose onto a building. The water leaves the hose with velocity vector vi at an acute angle θi, above the horizontal and curves downwards Just before it strikes the building at height h above the ground. The building is a horizontal distance d from the fireman.

5 0
Add a comment Improve this question Transcribed image text
✔ Recommended Answer
Answer #1

Add a comment
Know the answer?
Add Answer to:
Water from a fire hose is directed toward a building as shown in the figure below.
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Similar Homework Help Questions
  • Water from a fire hose is directed toward a building as shown in the figure below....

    Water from a fire hose is directed toward a building as shown in the figure below. The water leaves the hose at a speed of vi = 40.0 m/s and at an angle of θi = 42.0° above the horizontal. The base of the hose (at ground level) is a horizontal distance d = 51.0 m away from the building. Find the height h (in m) where the water strikes the building.

  • Water from a fire hose is directed toward a building as shown in the figure below....

    Water from a fire hose is directed toward a building as shown in the figure below. The water leaves the hose at a speed of vi = 40.0 m/s and at an angle of θi = 50.0° above the horizontal. The base of the hose (at ground level) is a horizontal distance d = 41.0 m away from the building. Find the height h (in m) where the water strikes the building. what figure am I supposed to show?

  • A fireman d=37.0m away from a burning building directs a stream of water from a ground-level fire hose at an angle

    A fireman d=37.0m away from a burning building directs a stream of water from a ground-level fire hose at an angle of θi=33.0° above the horizontal as shown in the figure. If the speed of the stream as it leaves the hose is vi=40.0m/s, at what height will the stream of water strike the building?

  • A fireman d = 49.0 m away from a burning building directs a stream of water...

    A fireman d = 49.0 m away from a burning building directs a stream of water from a ground-level fire hose at an angle of θi = 24.0° above the horizontal as shown in the figure. If the speed of the stream as it leaves the hose is vi = 40.0 m/s, at what height will the stream of water strike the building?'

  • A fireman d = 30.0 m away from a burning building directs a stream of water...

    A fireman d = 30.0 m away from a burning building directs a stream of water from a ground-level fire hose at an angle of θi = 28.0° above the horizontal as shown in the figure. If the speed of the stream as it leaves the hose is vi = 40.0 m/s, at what height will the stream of water strike the building?

  • A fireman d = 59.0 m away from a burning building directs a stream of water...

    A fireman d = 59.0 m away from a burning building directs a stream of water from a ground-level fire hose at an angle of θi = 27.0° above the horizontal as shown in the figure. If the speed of the stream as it leaves the hose is vi = 40.0 m/s, at what height will the stream of water strike the building?

  • A firefighter mounts the nozzle of his fire hose a distance 38.5 m away from the...

    A firefighter mounts the nozzle of his fire hose a distance 38.5 m away from the edge of a burning building so that it sprays from ground level at a 45° angle above the horizontal. After quenching a hotspot at a height of 8.97 m, the firefighter adjusts the nozzle diameter so that the water hits the building at a height of 17.5 m. By what factor was the nozzle diameter changed? Assume that the flow rate of water through...

  • PD1B A fireman d 60.0 m away from a burning building directs a stream of water...

    PD1B A fireman d 60.0 m away from a burning building directs a stream of water from a ground-level fre hose at an angle of 0,-26.0 above the horizontal as shown in the figure. If the speed of the stream as it leaves the hose is v, 40.0 m/s, at what height will the stream of water strike the bullding? Need Help?

  • A fireman, 50.0 m away from a burning building, directs astream of water from a fire...

    A fireman, 50.0 m away from a burning building, directs astream of water from a fire hose at an angle of 30.0°above the horizontal. If the initial speed of the stream is 40.0 m/s, what is the horizontal component of the initial velocity?

  • A firefighter mounts the nozzle of his fire hose a distance 33.7 m33.7 m away from...

    A firefighter mounts the nozzle of his fire hose a distance 33.7 m33.7 m away from the edge of a burning building so that it sprays from ground level at a 45° angle above the horizontal. After quenching a hotspot at a height of 8.85 m,8.85 m, the firefighter adjusts the nozzle diameter so that the water hits the building at a height of 17.1 m.17.1 m. By what factor was the nozzle diameter changed? Assume that the flow rate...
