Homework Answers
As the elctric lines are parallel and equi-distant,
Electric field must be uniform,
Hence
The electric field probably caused by large sheet of
negative charges left of the region and/ or large sheet of positive
charges right of the region
Add Answer to:

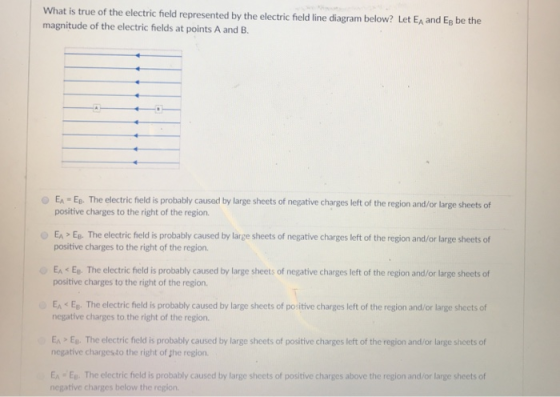

What is true of the electric feld represented by the electric field line diagram below? Let...
Which of the following statements about electric field lines are true? (choose all that are true)...
Which of the following statements about electric field lines are true? (choose all that are true) a) They are only defined for positive charges. b) They are always tangent to electric field vectors. c) They are always perpendicular to charged surfaces. d) They are a simple way to visualize the electric field vectors. e) None of the above. If a negative charge is placed in an electric field, what direction will it be accelerated? a) In the direction of the...
The diagrams below display two sets of charges labeled Q1 and Q2. The electric field lines...
The diagrams below display two sets of charges labeled Q1 and
Q2. The electric field lines and equipotential surfaces are
sketched along with several labeled locations. Select either
greater than, less than or equal to for the following statements
concerning these diagrams.
Equipotential and Electric Field Diagrams The diagrams below display two sets of charges labeled Q, and Q2. The electric field lines and equipotential surfaces are sketched along with several labeled locations. Select either greater than, less than, or...
Please show all work and steps! 13.3 Electric Field - Discrete and Continuous Distributions 2A 2c0...
Please show all work and steps!
13.3 Electric Field - Discrete and Continuous Distributions 2A 2c0 Separately, draw the electric field lines produced by a positive point charge +g: a negative point charge, +2g i q; a charge 2. Draw a constant electric field arrows to the right.) Ignore the electric fields generated by the charges themselves. (a) Place a positive charge q in it. Draw the force vector on this charge. (b) Also, now, place a negative charge q...
Choose true or false for each statement. Near a positive charge, the electric field forms circular...
Choose true or false for each statement. Near a positive charge, the electric field forms circular paths near that charge. B If the magnitude of charge 1 is larger than charge 2, then the density of electric field lines near charge 1 is smaller than near charge 2. Near a positive charge, the electric field points toward that charge. Submit Answer Tries 0/2 2 The figure above shows the electric field lines for negative and positive charges of different magnitudes....
Answer North, South, East, West, Greater than, Equal than, True or False: The electric field from...
Answer North, South, East, West, Greater than, Equal than, True
or False:
The electric field from two charges in the plane of the paper is represented by the dashed lines and arrows below. --> -----M Select the best response for each statement below. (Use 'North' towards top of page, and 'East' to the right.) The magnitude of the E-field at Sis ... than at N. The force on a (-) test charge at K is directed ... The force on...
3. Interpreting Electric Field Line Diagrams (Use the diagram below for A & B & C)...
3. Interpreting Electric Field Line Diagrams (Use the diagram below for A & B & C) For parts A-C, ignore the solid & open circles on the diagram. They are for part D A. If the charge on the right is +1 C, what can you say about the charge on the left? B. From far away, will this look like a point charge (+ or -?) or a dipole? Justify your answer. C. Where (apart from infinity) will the...
The top left diagram below shows a 1-C positive charge placed in a uniform external electric field. The electric field...
The top left diagram below shows a 1-C positive charge placed in
a uniform external electric field. The electric field in which the
charge is placed is represented by field lines (drawn in red), and
the resulting electric force on the charge is represented by the
blue vector. Suppose the 1-C charge is removed, and is replaced, in
turn, by each of the charges shown in the other three diagrams
below. Assuming that the external electric field remains the same,...
1 The electric field of individual point charges Question 1: (10 points) The figures above show...
1 The electric field of individual point charges Question 1: (10 points) The figures above show a positive charge (left) and a negative charge (right). The circles indicate which of the dots (points in space) are at equal distances from the charge. a) At each of the points indicated by a dot, draw the electric field vector representing the field gener ated by the charge. Make sure to get both the direction and the relative magnitudes of the vectors right....
Select True or False for the following statements about electric field lines. E-field lines may cross...
Select True or False for the following statements about electric field lines. E-field lines may cross E-field lines point inward toward negative charges. E-field lines do not begin or end in a charge-free region except at infinity E-field lines point outward from positive charges E-field lines make circles around positive charges Where the E-field lines are dense the E-field must be weak.
Number 2? Define electric field (E)? Write S.I. unit? Explain with necessary diagram the directions of...
Number 2?
Define electric field (E)? Write S.I. unit? Explain with necessary diagram the directions of electric fields due to a positive and negative charges separately? 2. Problem-2: What is the electric field (E) to be measured by a point charge distance of 0.02 m? 2 C) at a
The diagrams below display two sets of charges labeled Q1 and
Q2. The electric field lines and equipotential surfaces are
sketched along with several labeled locations. Select either
greater than, less than or equal to for the following statements
concerning these diagrams.
Equipotential and Electric Field Diagrams The diagrams below display two sets of charges labeled Q, and Q2. The electric field lines and equipotential surfaces are sketched along with several labeled locations. Select either greater than, less than, or...
Please show all work and steps!
13.3 Electric Field - Discrete and Continuous Distributions 2A 2c0 Separately, draw the electric field lines produced by a positive point charge +g: a negative point charge, +2g i q; a charge 2. Draw a constant electric field arrows to the right.) Ignore the electric fields generated by the charges themselves. (a) Place a positive charge q in it. Draw the force vector on this charge. (b) Also, now, place a negative charge q...
Choose true or false for each statement. Near a positive charge, the electric field forms circular paths near that charge. B If the magnitude of charge 1 is larger than charge 2, then the density of electric field lines near charge 1 is smaller than near charge 2. Near a positive charge, the electric field points toward that charge. Submit Answer Tries 0/2 2 The figure above shows the electric field lines for negative and positive charges of different magnitudes....
Answer North, South, East, West, Greater than, Equal than, True
or False:
The electric field from two charges in the plane of the paper is represented by the dashed lines and arrows below. --> -----M Select the best response for each statement below. (Use 'North' towards top of page, and 'East' to the right.) The magnitude of the E-field at Sis ... than at N. The force on a (-) test charge at K is directed ... The force on...
3. Interpreting Electric Field Line Diagrams (Use the diagram below for A & B & C) For parts A-C, ignore the solid & open circles on the diagram. They are for part D A. If the charge on the right is +1 C, what can you say about the charge on the left? B. From far away, will this look like a point charge (+ or -?) or a dipole? Justify your answer. C. Where (apart from infinity) will the...
The top left diagram below shows a 1-C positive charge placed in
a uniform external electric field. The electric field in which the
charge is placed is represented by field lines (drawn in red), and
the resulting electric force on the charge is represented by the
blue vector. Suppose the 1-C charge is removed, and is replaced, in
turn, by each of the charges shown in the other three diagrams
below. Assuming that the external electric field remains the same,...
1 The electric field of individual point charges Question 1: (10 points) The figures above show a positive charge (left) and a negative charge (right). The circles indicate which of the dots (points in space) are at equal distances from the charge. a) At each of the points indicated by a dot, draw the electric field vector representing the field gener ated by the charge. Make sure to get both the direction and the relative magnitudes of the vectors right....
Select True or False for the following statements about electric field lines. E-field lines may cross E-field lines point inward toward negative charges. E-field lines do not begin or end in a charge-free region except at infinity E-field lines point outward from positive charges E-field lines make circles around positive charges Where the E-field lines are dense the E-field must be weak.
Number 2?
Define electric field (E)? Write S.I. unit? Explain with necessary diagram the directions of electric fields due to a positive and negative charges separately? 2. Problem-2: What is the electric field (E) to be measured by a point charge distance of 0.02 m? 2 C) at a
