A point charge with

q₁ = +2.2 C

is located at

x = −3.0 m, y = 0,

and a second point charge with

q₂ = +4.8 C

is at

x = +1.0 m, y = +3.0 m.

What are the components of the electric field at

x = +1.0 m, y = 0? E, E

science physics

Answer 1

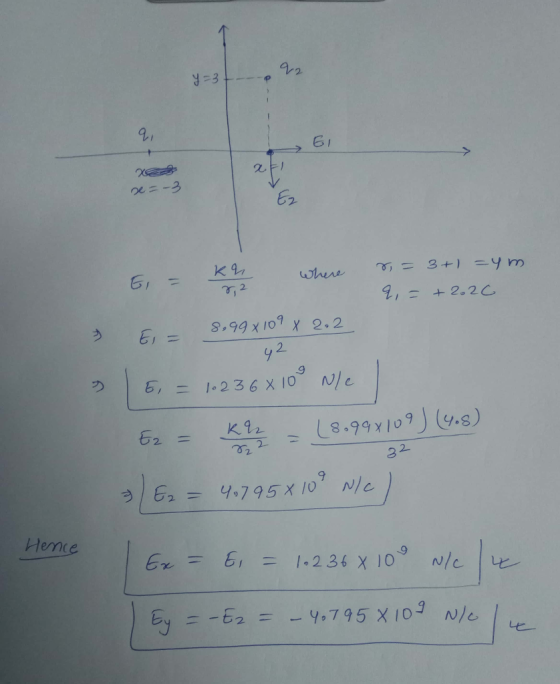

Answer #1

921 G I E2 3.99 x 107 X 2.2 2 1-8.99x109) (y,g) 62 k22 2- Hemie
