Question

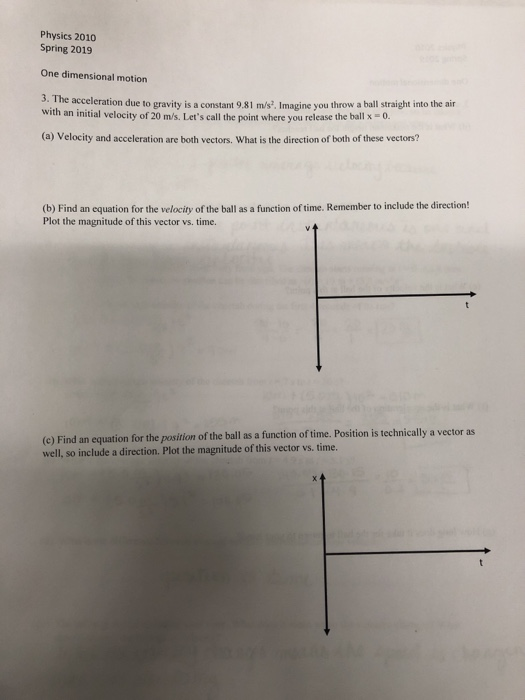

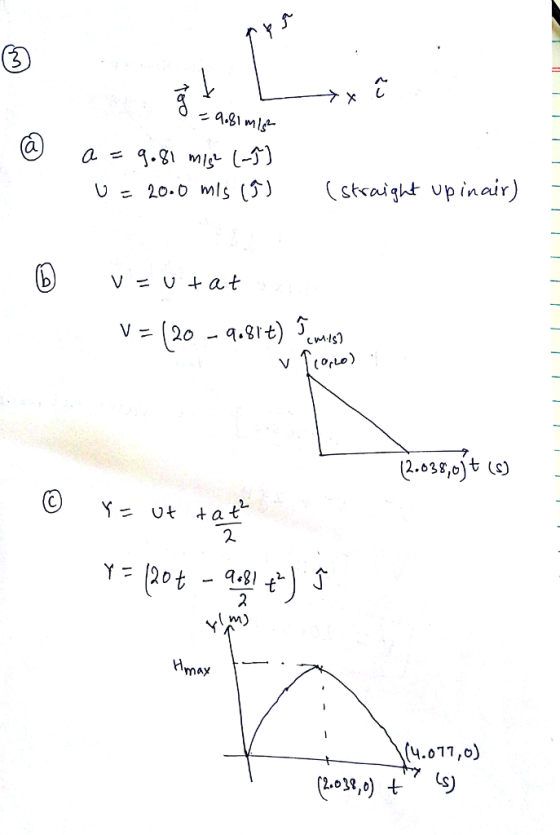

Physics 2010 Spring 2019 One dimensional motion tion due to gravity is a constant 9.81 m/s?. Imagine you throw a ball straight into the air with an initial velocity of 20 m/s. Lets call the point where you release the ballx. (a) Velocity and acceleration are both vectors. What is the direction of both of these vectors? (b) Find an equation for the velocity of the ball as a function of time. Remember to include the direction! Plot the magnitude of this vector vs.time. (e) Find an equation for the position of the ball as a function of time. Position is technically a vector as well, so include a direction. Plot the magnitude of this vector vs. time.
0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
Physics 2010 Spring 2019 One dimensional motion tion due to gravity is a constant 9.81 m/s?....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Physics 2010 Spring 2019 Two- and three-dimensional motion 3. You sit inside airpl han ball 70...

    Physics 2010 Spring 2019 Two- and three-dimensional motion 3. You sit inside airpl han ball 70 cm into the air. an airplane that is moving at 200 m/s. You decide to practice your juggling and throw a (a) With what initial velocity did you throw the ball? (b) To an observer outside the plane [don't ask], what was the ball's initial velocity? Give your answer as a vector. (c) How far does the ball travel horizontally? (d) Plot the ball's...

  • Physics 2010 Spring 2019 Two- and three-dimensional motion 2. Thelma and Louise drive their car off...

    Physics 2010 Spring 2019 Two- and three-dimensional motion 2. Thelma and Louise drive their car off a 50 m high cliff at 60 mph (Do not attempt). (a) Convert this speed to SI units. (b) Write down the "equations of motion" Generally, this means the equations for position, velocity acceleration (all relevant components). Physics 2010 Spring 2019 Two- and three-dimensional motion 2. (continued) (c) How long will it take for the car to hit the ground? (d) How far will...

  • 2. A particle has a constant acceleration of ?⃗ = (6.0 m s 2 ⁄ )?̂...

    2. A particle has a constant acceleration of ?⃗ = (6.0 m s 2 ⁄ )?̂ + (4.0 m s 2 ⁄ )?. At ̂ ? = 0, the velocity is zero and the position vector is ?⃗ 0 = (10 m)?̂. (a) Find the velocity and position vectors as a function of time ?. b)Find the equation of the particle’s path in the xy plane and sketch the path.

  • 1. A cannon fires a cannonball at an angle of 30° above horizontal. The initial velocity...

    1. A cannon fires a cannonball at an angle of 30° above horizontal. The initial velocity of the cannonball is 40 m/s. Assume the coordinate system in which x is horizontal and y is vertical. (a) What is the x-component of the initial velocity? '40 % cos ao (b) What is the y-component of the initial velocity? (c) Gravity causes a constant acceleration of 9.81 m/s. In what direction is this acceleration? (d) What affect will this acceleration have on...

  • 7. General Motion with Unit Vectors and Components An object undergoes the following consecutive displacements: s...

    7. General Motion with Unit Vectors and Components An object undergoes the following consecutive displacements: s (2i +3j +5k)m,s2 (6i- 9j + 2k)m, and s3 (10i 8j -k)m. a) Find the resultant displacement in terms of unit vectors and components. b) State the magnitude of the resultant displacement. 2. Suppose a hiker travels 5 km southwest from their camp. Then, the hiker travels 2 km 75° north of east. a) Find the displacement of the hiker form their camp. b)...

  • 6. General Motion with Unit Vectors and Components An object undergoes the following consecutive displacements: s...

    6. General Motion with Unit Vectors and Components An object undergoes the following consecutive displacements: s (2i +3j +5k)m,s2 (6i- 9j + 2k)m, and s3 (10i 8j -k)m. a) Find the resultant displacement in terms of unit vectors and components. b) State the magnitude of the resultant displacement. 2. Suppose a hiker travels 5 km southwest from their camp. Then, the hiker travels 2 km 75° north of east. a) Find the displacement of the hiker form their camp. b)...

  • 5. General Motion with Unit Vectors and Components An object undergoes the following consecutive displacements: s...

    5. General Motion with Unit Vectors and Components An object undergoes the following consecutive displacements: s (2i +3j +5k)m,s2 (6i- 9j + 2k)m, and s3 (10i 8j -k)m. a) Find the resultant displacement in terms of unit vectors and components. b) State the magnitude of the resultant displacement. 2. Suppose a hiker travels 5 km southwest from their camp. Then, the hiker travels 2 km 75° north of east. a) Find the displacement of the hiker form their camp. b)...

  • 4. General Motion with Unit Vectors and Components An object undergoes the following consecutive displacements: s...

    4. General Motion with Unit Vectors and Components An object undergoes the following consecutive displacements: s (2i +3j +5k)m,s2 (6i- 9j + 2k)m, and s3 (10i 8j -k)m. a) Find the resultant displacement in terms of unit vectors and components. b) State the magnitude of the resultant displacement. 2. Suppose a hiker travels 5 km southwest from their camp. Then, the hiker travels 2 km 75° north of east. a) Find the displacement of the hiker form their camp. b)...

  • 2. General Motion with Unit Vectors and Components An object undergoes the following consecutive displacements: s...

    2. General Motion with Unit Vectors and Components An object undergoes the following consecutive displacements: s (2i +3j +5k)m,s2 (6i-91+ 2krn, and s,-(10i + 8j-km a) Find the resultant displacement in terms of unit vectors and components. b) State the magnitude of the resultant displacement. 2. Suppose a hiker travels 5 km southwest from their camp. Then, the hiker travels 2 km 75° north of east. a) Find the displacement of the hiker form their camp. b) If the hiker...

  • 1-dt-conteht-fi0-3307 1. A motorcycle is traveling at a constant rate of 20.0 m/s in the east...

    1-dt-conteht-fi0-3307 1. A motorcycle is traveling at a constant rate of 20.0 m/s in the east direction Oz = 20.0 m/s) and 25.0 m/s in the north direction (vy 25.0 m/s) (a) What is the magnitude of the motorcycle's velocity vector? 4. A ship starts at the origin, experiences a displacement of 3000.0 m directly northeast, another displacement of 1000.0 m directly east, and then a final displacement of 3000.0 m directly southeast. Graphically find the total displacement of the...
