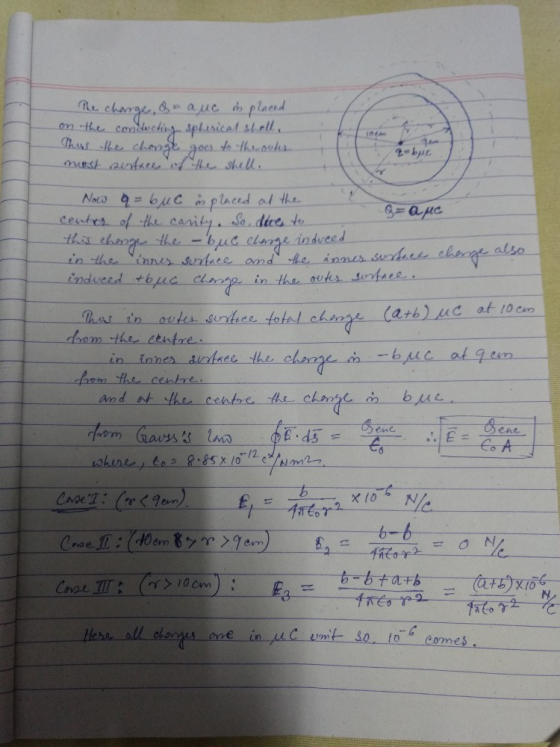

Q 18.38: A charge Q = a μC is placed on a conducting spherical shell with...
3. A solid spherical insulator with radius Ry is surrounded by a conducting spherical shell with...
3. A solid spherical insulator with radius Ry is surrounded by a conducting spherical shell with inner radius R2 and outer radius R3 and with the same center point as the central sphere. The central sphere has charge density p yr3, where r is the distance from the common center of the sphere and shell. The conducting shell has charge Q. Find the magnitude of the electric field as a function of r in the following regions: R2 (a)r s...
A positive point charge of magnitude 2.6 HC is at the center of an uncharged spherical...
A positive point charge of magnitude 2.6 HC is at the center of an uncharged spherical conducting shell of inner radius 65 cm and outer radius 110 cm (a) Find the charge densities on the inner and outer surfaces of the shel -0.49 0.17 μC/m2 (inner) μC ', /m2 (outer) Find the total charge on each surface 2.6 2.6 HC (inner) IC (outer) (b) Find the electric field everywhere Er 65 cm 23374 E65 < r< 110 cm0 r2 Er110...
2 part question? A conducting spherical shell with a cavity, has inner radius Ri and outer...
2 part question?
A conducting spherical shell with a cavity, has inner radius Ri and outer radius R2. The shell has a net negative charge -8.2 nC. A particle with charge +27.6 nC is placed at the center of the cavity. (a) The net charge enclosed at a point in the cavity, a distance r from the center, is: Select one: a. -8.2 nc b. 27.6 nc c. 19.40 nc d. -19.40 nc e. Onc A conducting spherical shell with...
2. A positive point charge +Q resides at the center of a conducting spherical shell of...
2. A positive point charge +Q resides at the center of a conducting spherical shell of inner radius R1, of outer radius R2, and of total charge -4Q. Use Gauss's law to find the charge on: (a) the inner surface at r=R1 and (b) the outer surface at r=R2. Find the magnitude and direction of the electricfield at a distance r from the point charge: (c) for r<R1,(d) for R1<r<R2, and (e) for r>R2. Draw a diagram showing all charges...
A conducting spherical shell with a cavity, has inner radius R. and outer radius R2. The...
A conducting spherical shell with a cavity, has inner radius R. and outer radius R2. The shell has a net negative charge -8.2 nC. A particle with charge +27.6 nC is placed at the center of the cavity. (a) The net charge enclosed at a point in the cavity, a distance r from the center, is: Select one: a. 19.40 nC Ob.-8.2 nc c. O nc | d. 27.6 IC e.-19.40 nC A conducting spherical shell with a cavity, has...
A point charge +Q is placed at the center of a spherical metal shell of inner...
A point charge +Q is placed at the center of a spherical metal shell of inner radius R1 and outer radius R2. The net charge on the metal shell is -3Q. Part A - How much charge is there on the outer surface of the shell? Part B - What is the magnitude of E field at point A located at r = 2R2?
A conducting spherical shell has inner radius r1 = 7.0 cm, outer radius r2 = 12.0...
A conducting spherical shell has inner radius r1 = 7.0 cm, outer radius r2 = 12.0 cm. A +3 uC point charge is placed at the center. A charge of Q=+4 uC is put on the conductor. a) What is the charge on the inner and outer surface of the shell? b)What is the electric field on the inside and outside of the shell?
A conducting spherical shell of inner radius a= 50.0 cm and outer radius b= 60.0 cm...
A conducting spherical shell of inner radius a= 50.0 cm and
outer radius b= 60.0 cm has a net charge Q1= -7.00 μC. A second
larger conducting shell of inner radius c= 70.0 cm and outer radius
d= 80.0 cm has a net charge of Q2= +3.00 μC, and it is concentric
with the first shell as shown in the figure to the left. What is
the magnitude and direction of the electric field as a function of
distance from...
Problem 4-A point charge q 9.0 nC is placed inside a spherical shell made of metal,...
Problem 4-A point charge q 9.0 nC is placed inside a spherical shell made of metal, of inner radius a 3.0 m and outer radius b -5.0 m, that is charged with qp-6.0 nC. Find the electric field (magnitude and direction) at a distance (a) r 1.5 m (b) r2 4.0 m from the center. (c) Find the charges on the inner and outer surfaces of the spherical shell
A conducting spherical shell with a cavity, has inner radius R. and outer radius R2 The...
A conducting spherical shell with a cavity, has inner radius R. and outer radius R2 The shell has a net negative charge -8.2 nC. A particle with charge 27:6 nC is placed at the center of the cavity (b) The net charge enclosed at a point outside the shell, at distance r from the center, where Ri <r< R2 is: Select one: O a. 35.80 nC b. 27.6 nc O c. 8.2 nc O d. Onc e. 19.40 nc
3. A solid spherical insulator with radius Ry is surrounded by a conducting spherical shell with inner radius R2 and outer radius R3 and with the same center point as the central sphere. The central sphere has charge density p yr3, where r is the distance from the common center of the sphere and shell. The conducting shell has charge Q. Find the magnitude of the electric field as a function of r in the following regions: R2 (a)r s...
A positive point charge of magnitude 2.6 HC is at the center of an uncharged spherical conducting shell of inner radius 65 cm and outer radius 110 cm (a) Find the charge densities on the inner and outer surfaces of the shel -0.49 0.17 μC/m2 (inner) μC ', /m2 (outer) Find the total charge on each surface 2.6 2.6 HC (inner) IC (outer) (b) Find the electric field everywhere Er 65 cm 23374 E65 < r< 110 cm0 r2 Er110...
2 part question?
A conducting spherical shell with a cavity, has inner radius Ri and outer radius R2. The shell has a net negative charge -8.2 nC. A particle with charge +27.6 nC is placed at the center of the cavity. (a) The net charge enclosed at a point in the cavity, a distance r from the center, is: Select one: a. -8.2 nc b. 27.6 nc c. 19.40 nc d. -19.40 nc e. Onc A conducting spherical shell with...
A conducting spherical shell with a cavity, has inner radius R. and outer radius R2. The shell has a net negative charge -8.2 nC. A particle with charge +27.6 nC is placed at the center of the cavity. (a) The net charge enclosed at a point in the cavity, a distance r from the center, is: Select one: a. 19.40 nC Ob.-8.2 nc c. O nc | d. 27.6 IC e.-19.40 nC A conducting spherical shell with a cavity, has...
A conducting spherical shell of inner radius a= 50.0 cm and
outer radius b= 60.0 cm has a net charge Q1= -7.00 μC. A second
larger conducting shell of inner radius c= 70.0 cm and outer radius
d= 80.0 cm has a net charge of Q2= +3.00 μC, and it is concentric
with the first shell as shown in the figure to the left. What is
the magnitude and direction of the electric field as a function of
distance from...
Problem 4-A point charge q 9.0 nC is placed inside a spherical shell made of metal, of inner radius a 3.0 m and outer radius b -5.0 m, that is charged with qp-6.0 nC. Find the electric field (magnitude and direction) at a distance (a) r 1.5 m (b) r2 4.0 m from the center. (c) Find the charges on the inner and outer surfaces of the spherical shell
A conducting spherical shell with a cavity, has inner radius R. and outer radius R2 The shell has a net negative charge -8.2 nC. A particle with charge 27:6 nC is placed at the center of the cavity (b) The net charge enclosed at a point outside the shell, at distance r from the center, where Ri <r< R2 is: Select one: O a. 35.80 nC b. 27.6 nc O c. 8.2 nc O d. Onc e. 19.40 nc
