1. Three masses are arranged as shown to the right. The ropes connecting the masses are...

Question

Question

science physics

Answer 1

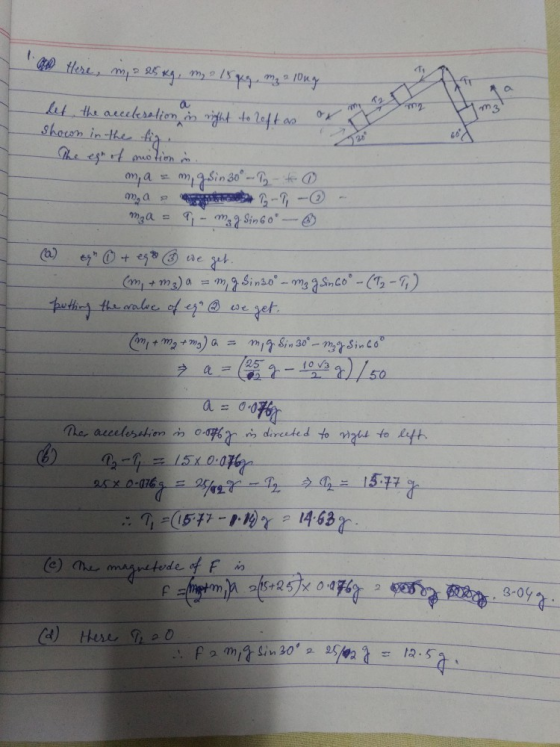

Answer #1

m3 Sheon in- ザーr et afg 3-09

Answer 2

Similar Homework Help Questions

1. Three masses are arranged as shown to the right. The ropes connecting the masses are...

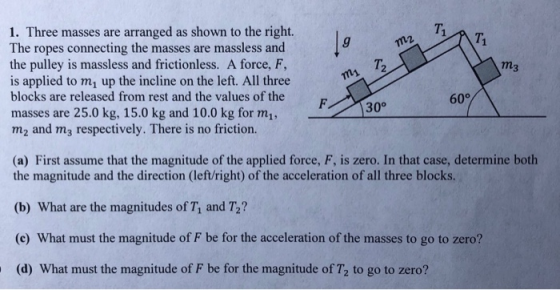

1. Three masses are arranged as shown to the right. The ropes connecting the masses are massless and the pulley is massless and frictionless. A force, F, is applied to m1 up the incline on the left. All three blocks are released from rest and the values of the masses are 25.0 kg, 15.0 kg and 10.0 kg for mi, m2 and m3 respectively. There is no friction. 71 2 m3 60° 300 (a) First assume that the magnitude of...
As shown in the figure below, three masses are drawn to the right on a surface...

As shown in the figure below, three masses are drawn to the right on a surface horizontal without friction by an applied force Module fapp 65 N. The masses m1, m2 and m3 are 12.0 kg, 24.0 kg and 31.0 kg, respectively. a. Calculate the modulus of acceleration of all of the masses. b. Calculate the modulus of the T1 and T2 voltages in the strings that connect the masses to each other. app
Three objects with masses m1= 2 kg, m2= 4 kg, and m3=6 kg are attached by...

Three objects with masses m1= 2 kg, m2= 4 kg, and m3=6 kg are attached by strings on an incline. The coefficent of kinetic friction is 0.15. A force of 100N is applied on m3 and pulls the objects up the incline with a gradient of 30 degrees. Determine the tension T1, T2, and the acceleration of the system

Two blocks with masses M1 and M2 are connected by a massless string that passes over...

Two blocks with masses M1 and M2 are connected by a massless string that passes over a massless pulley as shown. M1 has a mass of 2.25 kg and is on an incline of 41.5° with coefficient of kinetic friction μ1 = 0.205. M2 has a mass of 6.25 kg and is on an incline of 31.5° with coefficient of kinetic friction μ2 = 0.105. Find the magnitude of the acceleration of M2 down the incline.
Two blocks with masses M1 and M2 are connected by a massless string that passes over...

Two blocks with masses M1 and M2 are connected by a massless string that passes over a massless pulley as shown. M1 has a mass of 2.25 kg and is on an incline of 47.5° with coefficient of kinetic friction μ1 = 0.205. M2 has a mass of 8.05 kg and is on an incline of 33.5° with coefficient of kinetic friction μ2 = 0.105. Find the magnitude of the acceleration of M2 down the incline.
Two blocks with masses M1 and M2 are connected by a massless string that passes over a massless pulley as shown

Two blocks with masses M1 and M2 are connected by a massless string that passes over a massless pulley as shown. M1 has a mass of 2.25 kg and is on an incline of θ1=43.5° with coefficient of kinetic friction μ1=0.205 . M2 has a mass of 6.15 kg and is on an incline of θ2=35.5° with coefficient of kinetic friction μ2=0.105. The two-block system is in motion with the block of mass M2 sliding down the ramp.Find the magnitude...

Three masses are arranged on a table with pulleys, as shown. The pulleys and string are...

Three masses are arranged on a table with pulleys, as shown. The pulleys and string are taken to be massless. There is a coefficient of kinetic friction μk = 0.2 between m3 and the table.If m1 =4kg ,m3=6kg and m2 =12kg, then the acceleration of the masses is a) 1.52 m/s2 b) 2.35 m/s2 c) 4.89 m/s2 d) 3.03 m/s2 e) 3.59 m/s2
Two blocks with masses M1 and M2 are connected by a massless string that passes over...

Two blocks with masses M1 and M2 are connected by a massless string that passes over a massless pulley as shown. M1 has a mass of 2.25 kg and is on an incline of θ1=42.5 with coefficient of kinetic friction μ1=0.205. M2 has a mass of 7.25 kg and is on an incline of θ2=31.5 with coefficient of kinetic friction μ2=0.105. The two‑block system is in motion with the block of mass M2 sliding down the ramp. Find the magnitude...
Two blocks with masses M1 and M2 are connected by a massless string that passes over...

Two blocks with masses M1 and M2 are connected by a massless string that passes over a massless pulley as shown. M1 has a mass of 2.25 kg and is on an incline of θ1=46.5 with coefficient of kinetic friction μ1=0.205. M2 has a mass of 6.05 kg and is on an incline of θ2=33.5∘ with coefficient of kinetic friction μ2=0.105. The two‑block system is in motion with the block of mass M2 sliding down the ramp. Find the magnitude...
