A very large conducting plate lying in the xy plane carries a charge per unit area...
A very large conducting plate lying in the xy plane carries a charge per unit area of 6σ. A second such plate located at z = 4.00 cm and oriented parallel to the xy plane carries a charge per unit area of −1σ.
Find the electric field for the following. (Take upward to be in the positive z-direction.)

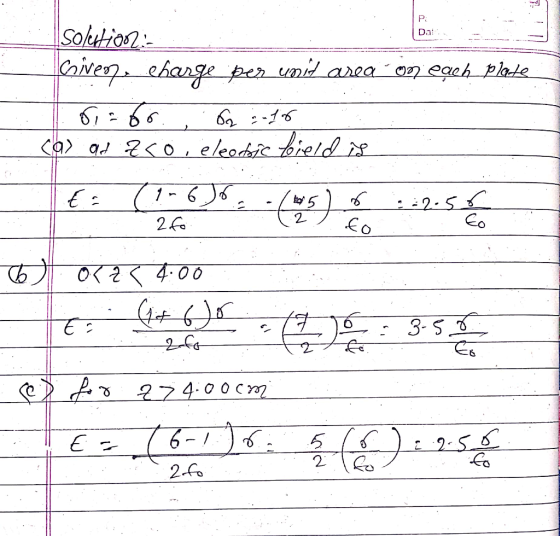

(a) z < 0
-2.5 σ/ε0
(b) 0 < z < 4.00 cm
5??? Your response differs from the correct answer by more than
10%. Double check your calculations. σ/ε0
(c) z > 4.00 cm
2.5 σ/ε0
---
Need help with part (b)! I've tried: 5, -5, 2.5, which were incorrect...
