A smal sphere of charge q-+65 uc and mass m-s. 7 g is attached to a...

Question

Question

science physics

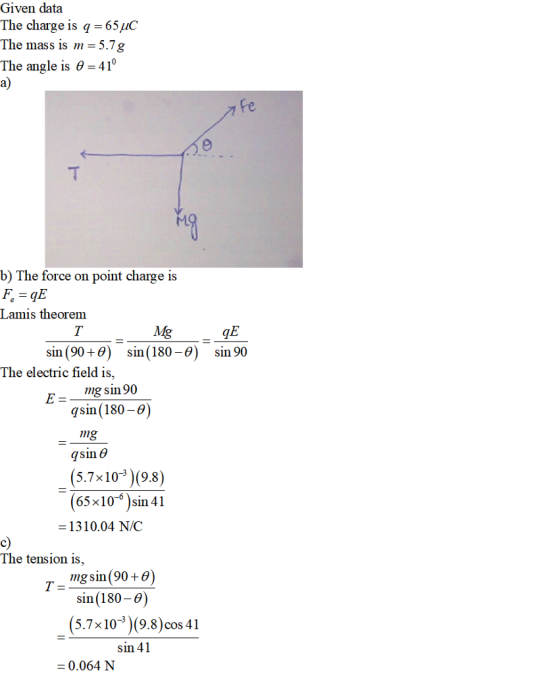

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

mal sphere of charge q = +64 μC and mass m = 5.1 g is attached...

mal sphere of charge q = +64 μC and mass m = 5.1 g is attached to a t string and placed in a uniform electric field that makes an angle 30° with the horizontal. The opposite end of the string is attached to a Il and the sphere is in static equilibrium when the string is horizontal as in figure shown below. (a) Construct a free body diagram for the sphere. (Submit a file with a maximum size of...
A small sphere of charge q+67 pC and mass m-5.4 g is attached to a light...

A small sphere of charge q+67 pC and mass m-5.4 g is attached to a light string and placed in a uniform electric field e that makes an angle θ-31° with the horizontal. The opposite end of the string is attached to a wall and the sphere is in static equilibrium when the string is horizontal as in the figure shown below. (a) Construct a free body diagram for the sphere. (Submit a file with a maximum size of 1...
An object of mass m = 4.9 g and charge Q = 40 ?Cis attached to...

An object of mass m = 4.9 g and charge Q = 40 ?Cis attached to a string and placed in a uniform electric field that is inclined at an angle of 30.0 ? with the horizontal (see the figure). The object is in static equilibrium when the string is horizontal. Find the magnitude of the electric field. Find the tension in the string.

A mass m = 2.2 g with charge Q = +58 µC is connected to a...

A mass m = 2.2 g with charge Q = +58 µC is connected to a string and placed in a uniform electric field that is at an angle of 30.0°. The mass is in static equilibrium when the string is horizontal. (a) Calculate the magnitude of the electric field. (b) Calculate the tension in the string.
A small sphere of mass m 7.00 g and charge q below the first charge a...

A small sphere of mass m 7.00 g and charge q below the first charge a distance d 2.00 cm below the first charge as in the figure 1 27.6 nC is attached to the end of a string and hangs vertically as in the figure. A second charge of equal mass and charge -58.0 nc is lod (a) Find the tension in the string.
A small sphere of mass m-7.10 g and charge 1 30.1 nC is attached to the...

A small sphere of mass m-7.10 g and charge 1 30.1 nC is attached to the end of a string and hangs vertically as in the figure. A second charge of equal mass and charge 92 =-58.0 nC is located below the first charge a distance d 2.00 cm below the first charge as in the figure I1 12 (a) Find the tension in the string (b) If the string can withstand a maximum tension of 0.180 N, what is...

A small sphere of mass m = 7.60 g and charge q1-30.8 nC is attached to...

A small sphere of mass m = 7.60 g and charge q1-30.8 nC is attached to the end of a string and hangs vertically as in the figure. A second charge of equal mass and charge 92-_58.0 nC is located below the first charge a distance d2.00 cm below the first charge as in the figure (a) Find the tension in the string (b) If the string can withstand a maximum tension of 0.180 N, what is the smallest value...
A)A sphere of radius 4.11 cm and uniform surface charge density +11.0 μC/m2 exerts an electrostatic...

A)A sphere of radius 4.11 cm and uniform surface charge density +11.0 μC/m2 exerts an electrostatic force of magnitude 4.21×10−2 N on a point charge +1.40 μC . Find the separation between the point charge and the center of the sphere. B)The electric field between the plates of a parallel-plate capacitor is horizontal, uniform, and has a magnitude E. Asmall object with a charge of -2.13 μC is attached to the string. The tension in the string is 0.440 N...
A small sphere of mass m 7 10 g and charge q1 = 30.6 nC is...

A small sphere of mass m 7 10 g and charge q1 = 30.6 nC is attached to the end of a string and hangs vertically as in the fi ure. A second charge of equal q2--58.0 nC is located below the first charge a distance d 2.00 cm below the first charge as in the figure. ass and charge a) Find the tension in the string (b) If the string can withstand a maximum tension of 0. 180 N,...

A small sphere of mass m 7.60 g and charge 어-28.2 ncis attached to the end...

A small sphere of mass m 7.60 g and charge 어-28.2 ncis attached to the end of a string and hangs vertically as in the figure. A second charge of equal mass and charge q2°-58.0 nC ls located below the first charge a distance d 2.00 cm below the first charge as in the figure. 1 92 (a) Find the tension in the string 11128 (b) If the string can withstand a maximum tension of 0.180 N, what is the...
